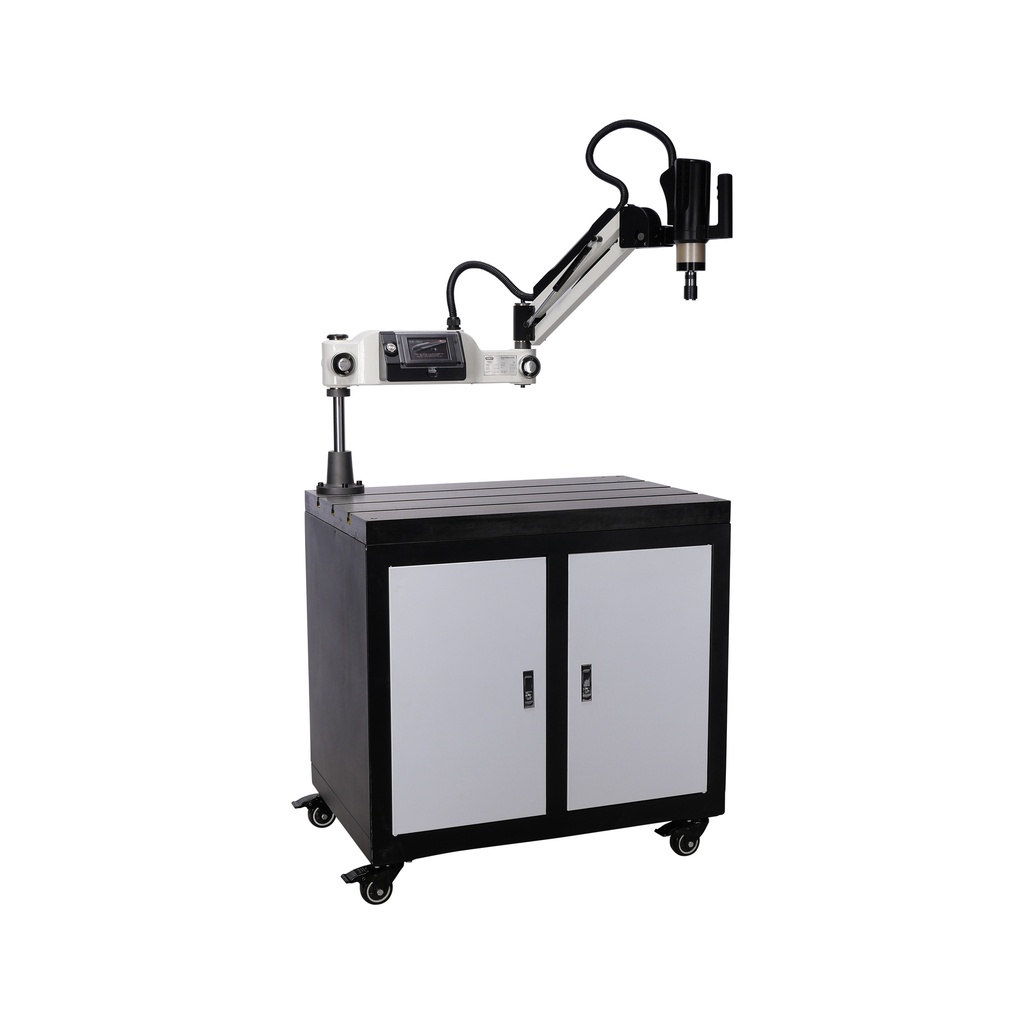

Electric tapping machine M3 - M16

Wood and Metal working / Metal working machinery / Tapping machines and accessories / Tapping machines Brand: Cowley Cowley

Product Code: TME16

EAN: 8720028093939

Availability: Available

€ 1,331.00 Incl. VAT https://schema.org/InStock 1331.0 EUR € 1,331.00

€ 1,100.00

  • Power
  • Voltage
  • Speed
  • Duty cycle
  • Tapping range
  • Working radius max.

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Description Size and Weight

Electric tapping machine / tapping arm

This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.

The tapping machine also has the following features:

  • HD Touchscreen for easy control in Dutch, English and French

  • PLC control

  • Self-lubricating bronze bushings for optimum flexibility

  • Wide tap range from M3 to M16

  • Dynamically adjustable tap depths

  • Integrated on/off button

  • Weightless operation thanks to gas springs

  • Powerful servo motor

  • Electrically adjustable torque

  • Adjustable input and output speed

  • Touchscreen with protective cover

  • Interchangeable tap heads with quick-release system

The machine comes standard with:

6x GT12 DIN tap holder with slip coupling (adjustable torque):

  • M3 (ø3.5mm / shank = 2.7mm)

  • M4 (ø4.5mm / shank = 3.4mm)

  • M5-6 (ø6.0mm / shank = 4.9mm)

  • M8 (ø8.0mm / shank = 6.2mm)

  • M10 (ø10.0mm / shank = 8.0mm)

  • M12 (ø9.0mm / shank = 7.0mm)

2x GT12 DIN tap holder:

  • M14 (ø11.0mm / shank = 9.0mm)

  • M16 (ø12.0mm / shank = 9.0mm)

PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.
Product Dimensions:
Product Length 1,200 mm
Product Width 200 mm
Product Height 850 mm
Product Weight 23.0 Kg
Package Dimensions:
Package Length 710 mm
Package Width 615 mm
Package Height 230 mm
Package Weight 29.00 Kg

  • Self-lubricating bronze bushings

  • Easy control in Dutch, English and French

  • Wide tap range

  • Integrated on/off button

  • Dynamically adjustable tap depths

Specifications

Power 0.6 kW
Voltage 230V
Speed 312 rpm
Duty cycle 100%
Tapping range M3 - M16
Working radius max. 1100 mm
