Electric tapping machine M3 - M16

Travail du bois et de la métallurgie / Travail des métaux / Tapping machines and accessories / Tapping machines Marque : Cowley Cowley

Code produit : TME16

EAN : 8720028093939

Disponibilité : Disponible

€ 1 331,00 TVA incluse https://schema.org/InStock 1331.0 EUR € 1 331,00

€ 1 100,00

  • Puissance
  • Tension
  • Vitesse
  • Duty cycle
  • Tapping range
  • Rayon de travail max.

Cette combinaison n'existe pas.

Livraison rapide à partir d'un stock important.
Paiement sécurisé via différentes options de paiement.
politique de retour de 14 jours.

Description Taille et poids

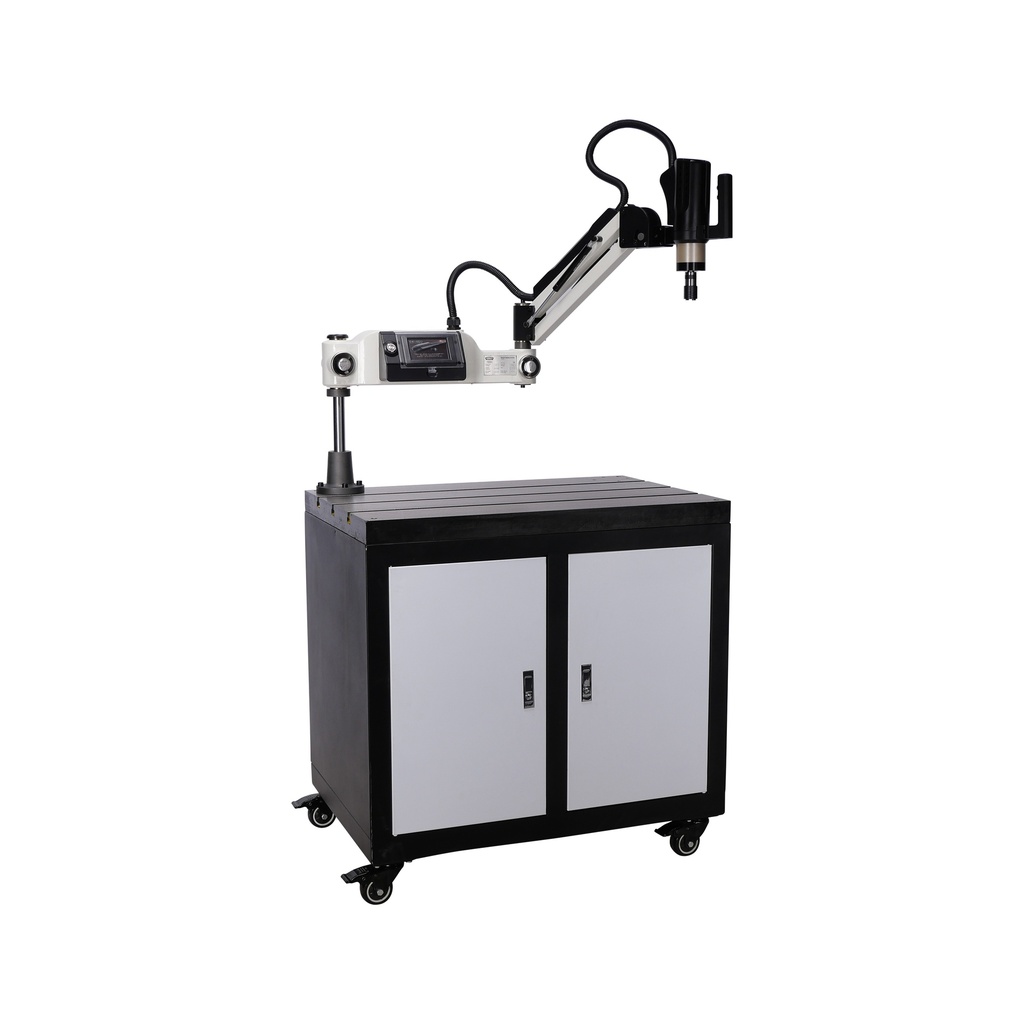

Electric tapping machine / tapping arm

This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.

The tapping machine also has the following features:

  • HD Touchscreen for easy control in Dutch, English and French

  • PLC control

  • Self-lubricating bronze bushings for optimum flexibility

  • Wide tap range from M3 to M16

  • Dynamically adjustable tap depths

  • Integrated on/off button

  • Weightless operation thanks to gas springs

  • Powerful servo motor

  • Electrically adjustable torque

  • Adjustable input and output speed

  • Touchscreen with protective cover

  • Interchangeable tap heads with quick-release system

The machine comes standard with:

6x GT12 DIN tap holder with slip coupling (adjustable torque):

  • M3 (ø3.5mm / shank = 2.7mm)

  • M4 (ø4.5mm / shank = 3.4mm)

  • M5-6 (ø6.0mm / shank = 4.9mm)

  • M8 (ø8.0mm / shank = 6.2mm)

  • M10 (ø10.0mm / shank = 8.0mm)

  • M12 (ø9.0mm / shank = 7.0mm)

2x GT12 DIN tap holder:

  • M14 (ø11.0mm / shank = 9.0mm)

  • M16 (ø12.0mm / shank = 9.0mm)

PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.
Dimensions du produit :
Longueur du produit 1 200 mm
Largeur du produit 200 mm
Hauteur du produit 850 mm
Poids du produit 23,0 Kg
Dimensions de l'emballage :
Longueur du paquet 710 mm
Largeur du paquet 615 mm
Hauteur du paquet 230 mm
Poids du Colis 29,00 Kg

  • Self-lubricating bronze bushings

  • Easy control in Dutch, English and French

  • Wide tap range

  • Integrated on/off button

  • Dynamically adjustable tap depths

Spécifications

Puissance 0.6 kW
Tension 230V
Vitesse 312 rpm
Duty cycle 100%
Tapping range M3 - M16
Rayon de travail max. 1100 mm
