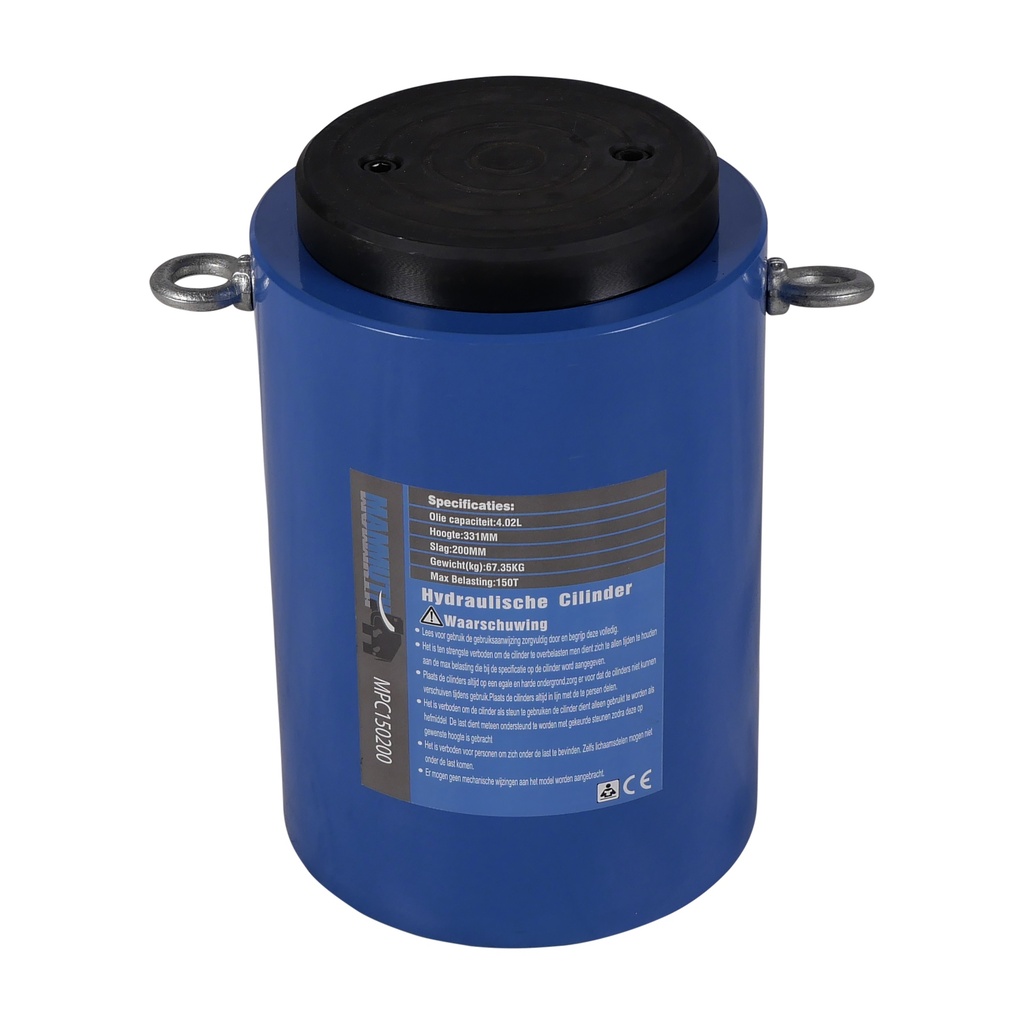

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
Technical specifications:
output = 150 ton
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 275 mm |
| Product Width | 205 mm |
| Product Height | 330 mm |
| Product Weight | 70.0 Kg |
| Package Dimensions: | |
| Package Length | 285 mm |
| Package Width | 215 mm |
| Package Height | 340 mm |
| Package Weight | 72.00 Kg |
