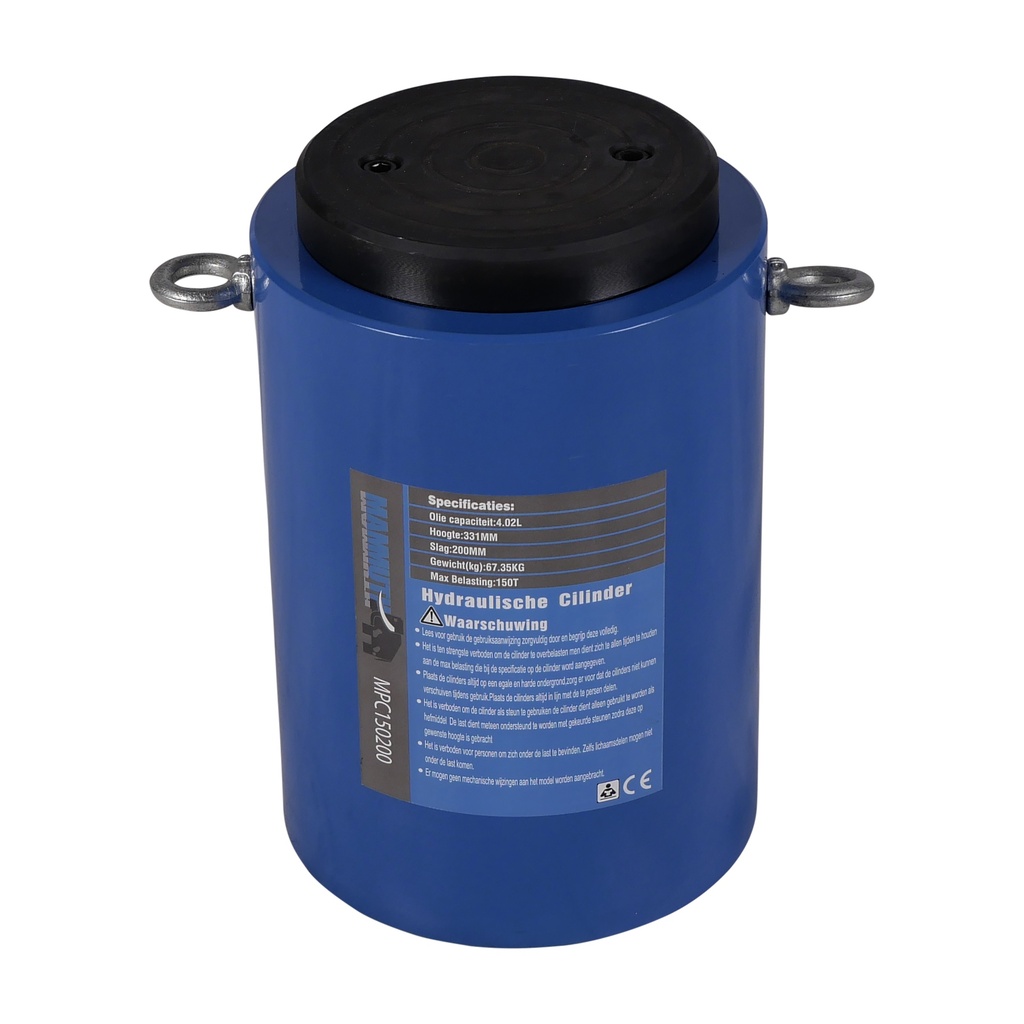

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
Technical specifications:
output = 150 ton
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
max. pressure = 700bar
Dimensions du produit : | |
---|---|
Longueur du produit | 275 mm |
Largeur du produit | 205 mm |
Hauteur du produit | 330 mm |
Poids du produit | 70,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 285 mm |
Largeur du paquet | 215 mm |
Hauteur du paquet | 340 mm |
Poids du Colis | 72,00 Kg |
