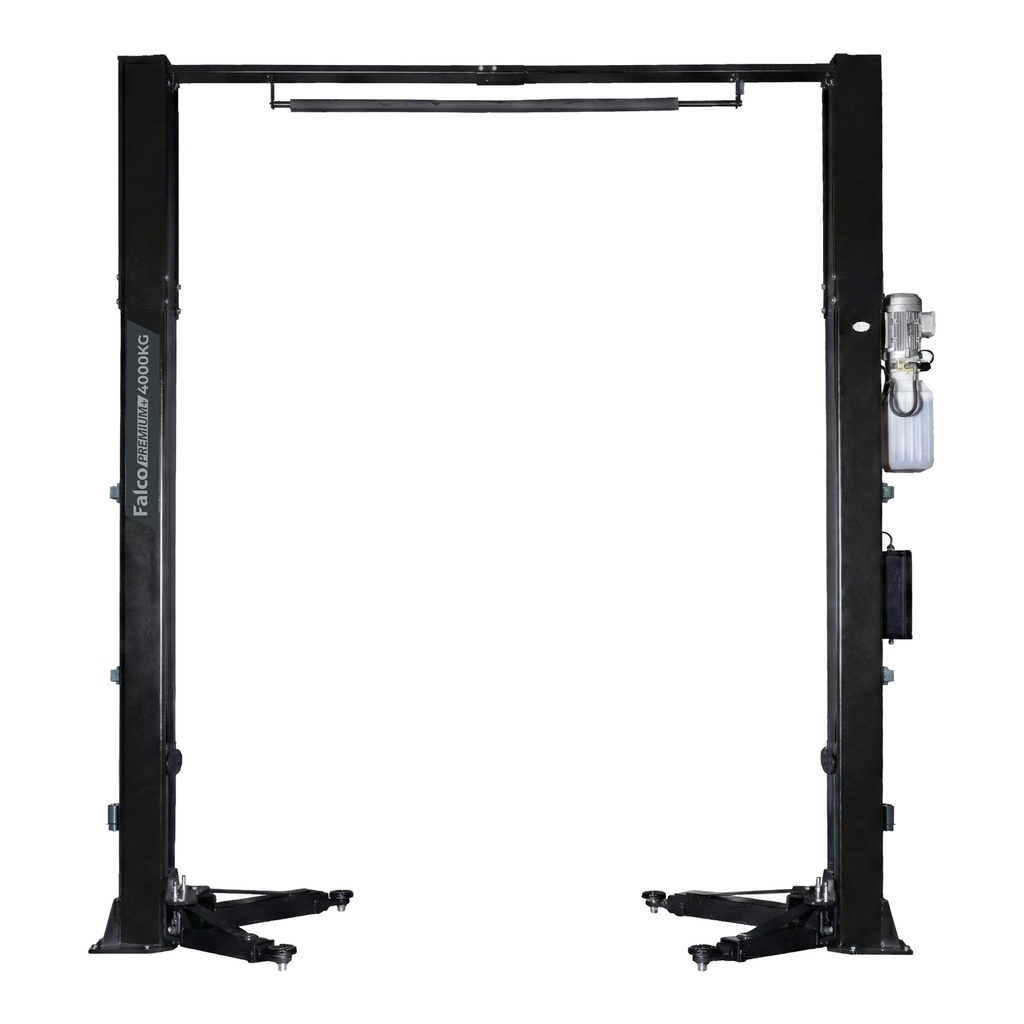

Two post lift 4000kg 400V floorless PremiumPlus

[VL40F400B] Two post lift 4000kg 400V floorless PremiumPlus

Lifts / Two post lifts Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL40F400B

EAN: 8720028097203

Availability: Available

https://www.valkenpower.com/web/image/product.template/61853/image_1920?unique=bacddde

€ 2,195.00 2195.0 EUR € 2,195.00

€ 2,195.00

Not Available For Sale

  • Lifting capacity
  • Lifting height min.
  • Voltage
  • Lifting height max. incl. pads
  • Telescopic arm short
  • Telescopic arm long
  • Oil type
  • Motor capacity
  • Columns height
  • Drive-through width

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Two column lift bridge / two pile bridge / 2 column lift bridge

Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The PremiumPlus is a fully automatic and barrier-free model, which makes this bridge very complete and suitable for a large number of different vehicles. The Falco Sollevatori Premium series has proven itself over the years as a very reliable and multi-usable bridge, for almost all common cars.

Characteristics:

  • Floorless / barrier-free

  • Double and triple telescopic adjustable wishbones

  • Steel cable synchronization control (synchronization)

  • Quality hydraulic pump incl. cooling fins

  • 24V control box

  • Transparent oil reservoir incl. oil level

  • Foot protection incl. acoustic safety signal

  • Exit when reaching highest position

  • Height adjustable carrying pads with double spindles

  • Standard elevated pickup buses

  • Automatic wishbone lock

  • Fully automatic electric detent

  • Shield inside column

  • chain guard

  • Robust columns made of rolled steel

  • Protective rubbers door stop

  • Hydraulic cylinder on both sides

  • Dead mans operation when lifting and lowering

  • Automatic overload protection

  • Height Limit Switch

  • 12 heavy M18 locking bolts

All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.

Product Dimensions:
Product Length 3,540 mm
Product Width 460 mm
Product Height 3,756 mm
Product Weight 680.0 Kg
Package Dimensions:
Package Length 2,955 mm
Package Width 456 mm
Package Height 1,100 mm
Package Weight 700.00 Kg

  • Floorless / barrier-free

  • Fully automatic

  • Two and three way adjustable arms

  • Quality hydraulic pump

  • Adjustable Double Spindle Pads

Specifications

Lifting capacity 4000 kg
Lifting height min. 95 mm
Voltage 400V - 3 Phase
Lifting height max. incl. pads 2050 mm
Telescopic arm short 625 - 932 mm
Telescopic arm long 825 - 1750 mm
Oil type CH32
Motor capacity 2.2 kW
Columns height 2806 mm
Drive-through width 2785 mm
