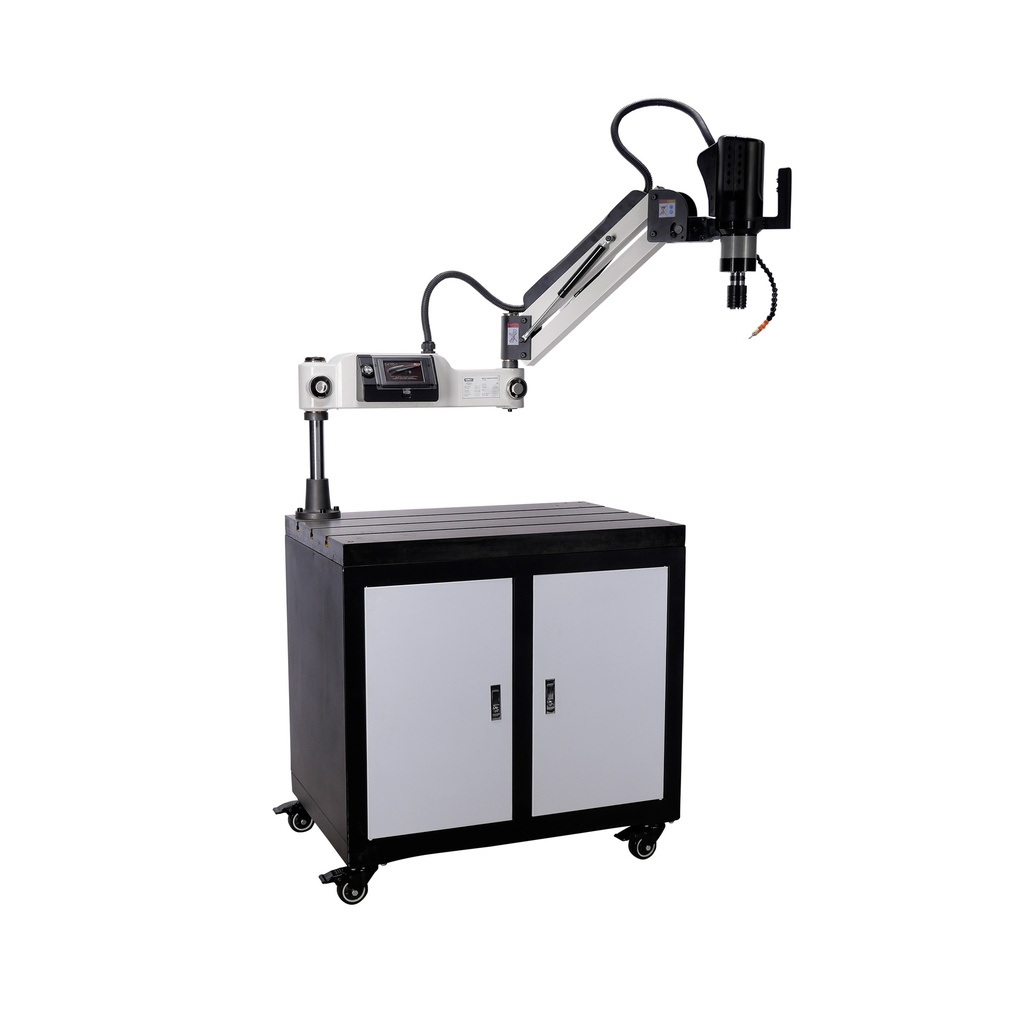

Electric tapping machine M6 - M36

Wood and Metal working / Metal working machinery / Tapping machines and accessories / Tapping machines Brand: Cowley Cowley

Product Code: TME36

EAN: 8720028093953

Availability: Available

€ 1,754.50 Incl. VAT https://schema.org/InStock 1754.5 EUR € 1,754.50

€ 1,450.00

  • Power
  • Voltage
  • Speed
  • Duty cycle
  • Tapping range
  • Working radius max.

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Description Size and Weight

Electric tapping machine / tapping arm
This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.
Tapping machine is equipped with a mist spray function, which ensures both cooling and lubrication of the tapping process. The system is fully integrated into the tap arm interface and can be automatically turned on and off via the HD touchscreen. When the liquid exits the spray surface of the nozzle, it breaks up into a fine mist of uniform micron-sized droplets. This allows the process to be cooled and lubricated for fast and accurate tapping. With the included flexible mist spray hose you can spray the oil/air mixture on the tap at all common angles. In addition, the mist spray also saves costs, extends the life of equipment, saves the environment and ultimately saves costs.

The tapping machine also has the following features:

  • HD Touchscreen for easy control in Dutch, English and French
  • PLC control
  • Self-lubricating bronze bushings for optimum flexibility
  • Wide tap range from M6 to M36
  • Dynamically adjustable tap depths
  • Integrated on/off button
  • Weightless operation thanks to gas springs
  • Powerful servo motor
  • Electrically adjustable torque
  • Adjustable input and output speed
  • Touchscreen with protective cover
  • Interchangeable tap heads with quick-release system

The machine comes standard with: 9x GT24 DIN tap holder with slip coupling (adjustable torque):

  • M5-6 (ø6.0mm / shank = 4.9mm)
  • M8 (ø8.0mm / shank = 6.2mm)
  • M10 (ø10.0mm / shank = 8.0mm)
  • M12 (ø9.0mm / shank = 7.0mm)
  • M14 (ø11.0mm / shank = 9.0mm)
  • M16 (ø12.0mm / shank = 9.0mm)
  • M18 (ø14.0mm / shank = 11.0mm)
  • M20 (ø16.0mm / shank = 12.0mm)
  • M22-24 (ø18.0mm / shank = 14.5mm)

4x GT24 DIN tal holder:

  • M27 (ø20.0mm / shank = 16.0mm)
  • M30 (ø22.0mm / shank = 18.0mm)
  • M33 (ø25.0mm / shank = 20.0mm)
  • M36 (ø28.0mm / shank = 22.0mm)

PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.
Product Dimensions:
Product Length 1,400 mm
Product Width 200 mm
Product Height 900 mm
Product Weight 41.0 Kg
Package Dimensions:
Package Length 835 mm
Package Width 740 mm
Package Height 250 mm
Package Weight 49.00 Kg

  • Self-lubricating bronze bushings
  • Wide tap range
  • Automatic mist spray lubrication
  • Dynamically adjustable tap depths

Specifications

Power 1.2 kW
Voltage 230V
Speed 156 rpm
Duty cycle 100%
Tapping range M6 to M36
Working radius max. 1200 mm
