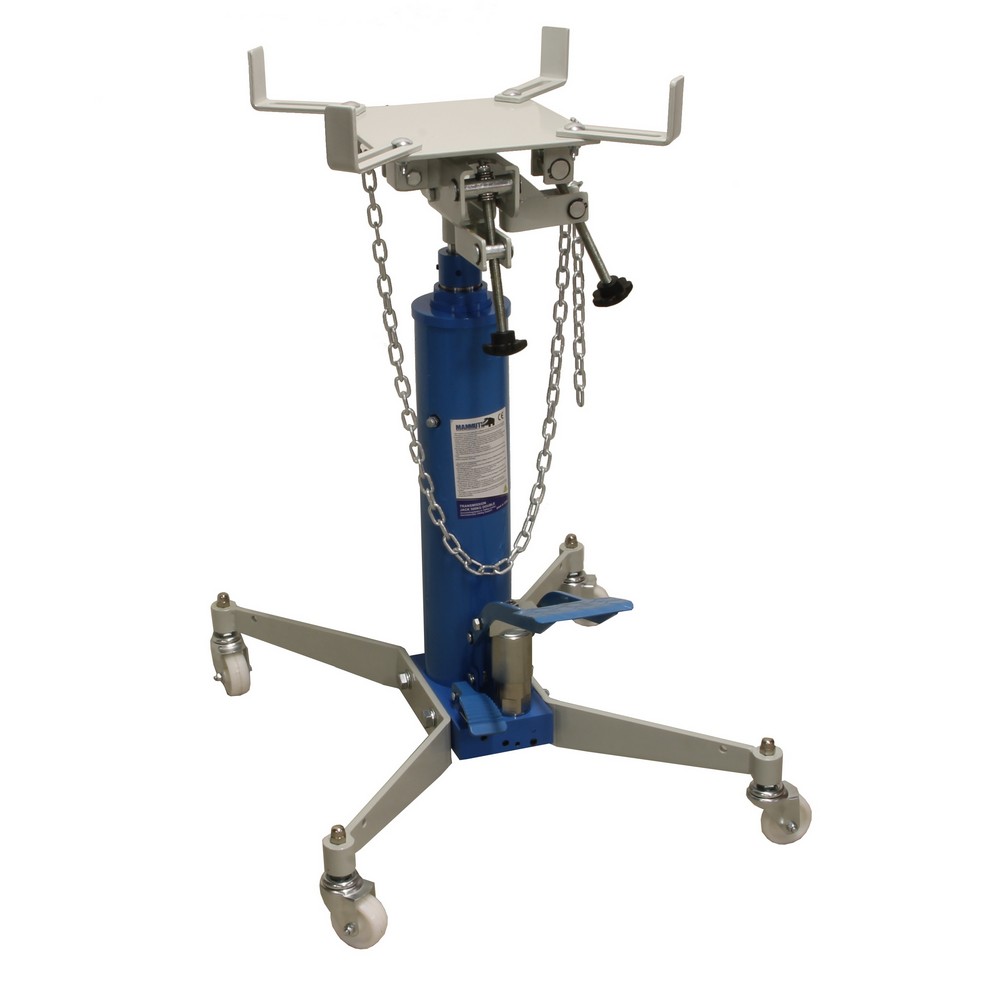

This Mammuth transmission jack is designed for the fast and safe installation and removal of gearboxes. The jack is equipped with nylon wheels that resist oil, grease, acids, and other chemicals.
- Two-stage pump: Fast lifting without load, controlled under load.
- Controlled lowering speed: Ensures safe and steady descent.
- Foot pedal: Keeps both hands free while lifting.
- Tiltable platform: Easily adjustable via spindle.
- Low minimum height: Minimum height of just 940 mm.
Specifications
| Material | Steel |
| Capacity | 500 kg |
| Min. height | 940 mm |
| Max. height | 1970 mm |
| Hook spacing | 280 mm |
| Hook height | 70 mm |
| Wheel material | Nylon |
| Wheel diameter | ø77 mm |
| Oil capacity | 3 L |
| Oil type | OHCH15V |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 700 mm |
| Product Width | 650 mm |
| Product Height | 940 mm |
| Product Weight | 66.0 Kg |
| Package Dimensions: | |
| Package Length | 550 mm |
| Package Width | 880 mm |
| Package Height | 360 mm |
| Package Weight | 75.00 Kg |
