Plate roller machine

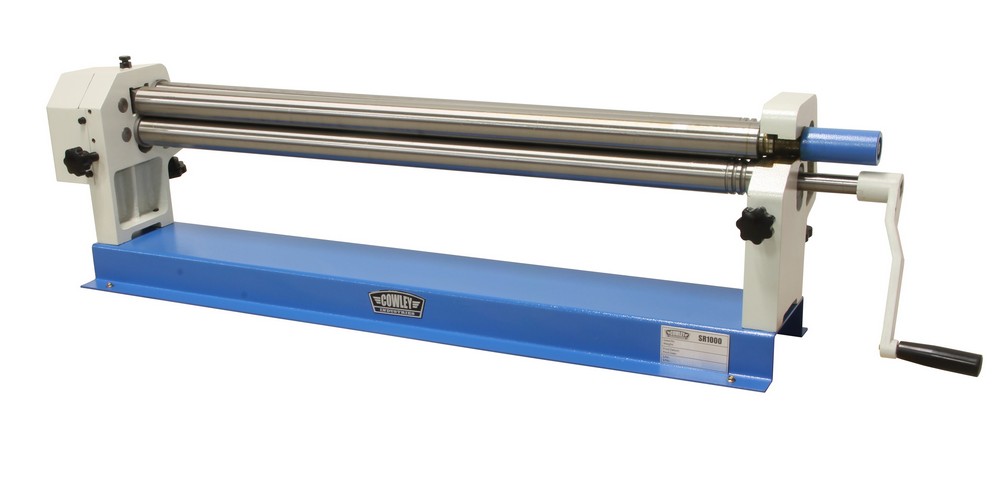

This Cowley slip roll machine is ideal for rolling plate material in various shapes such as pipes and tubes. The machine can be operated with th handle on the side and the upper roll is easy to remove so that the sheet metal can be removed.
The rollers are also individually adjustable and equipped with wire grooves.
max. plate thickness = 0,8mm
max. width plate = 1000mm
diameter of the roll = 50mm
Product Dimensions: | |
---|---|
Product Length | 1,460 mm |
Product Width | 270 mm |
Product Height | 360 mm |
Product Weight | 86.0 Kg |
Package Dimensions: | |
Package Length | 1,450 mm |
Package Width | 320 mm |
Package Height | 500 mm |
Package Weight | 107.00 Kg |
