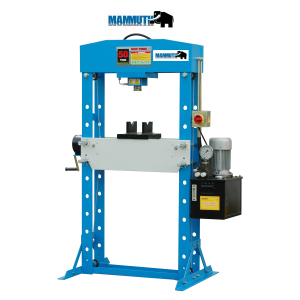

Garage press / bearing press / frame press
This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
The work bed is easy to adjust in height using the winch and handle.

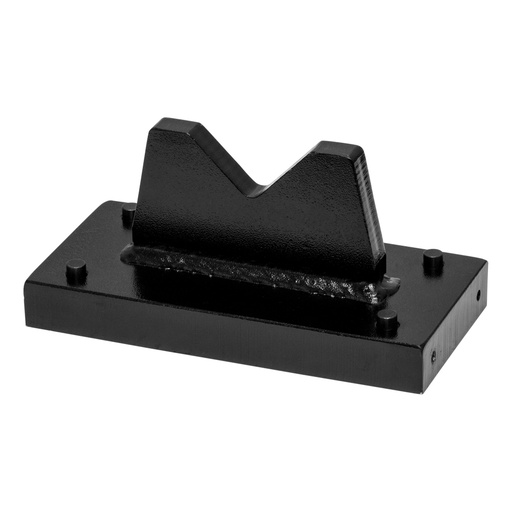

The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.

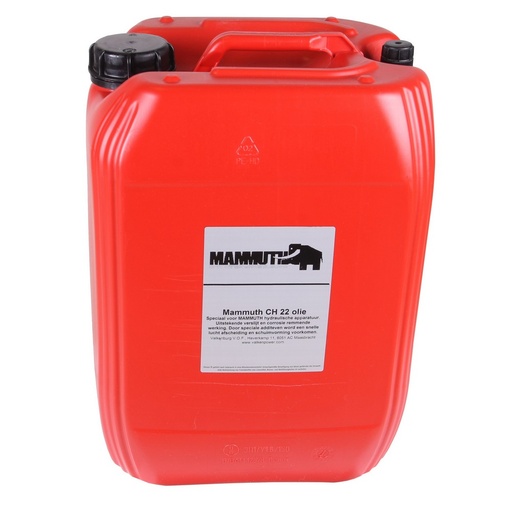

Please note: the press is supplied without CH22 hydraulic oil (29 liters).
Specifications:
capacity = 50 ton
cylinder stroke = 200mm
bed width = 730mm
working range = 1018mm
power = 1,5kW
voltage = 400V
speed = 1400rpm
outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec
incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec
Packed in 2 boxes:
98,8 x 31,5 x 202cm 328kg
52,5 x 36,5 x 79cm 85kg
| Product Dimensions: | |
|---|---|
| Product Length | 1,030 mm |
| Product Width | 800 mm |
| Product Height | 1,836 mm |
| Product Weight | 360.0 Kg |
| Package Dimensions: | |
| Package Length | 2,020 mm |
| Package Width | 988 mm |
| Package Height | 365 mm |
| Package Weight | 413.00 Kg |
