Plasma cutter 70A

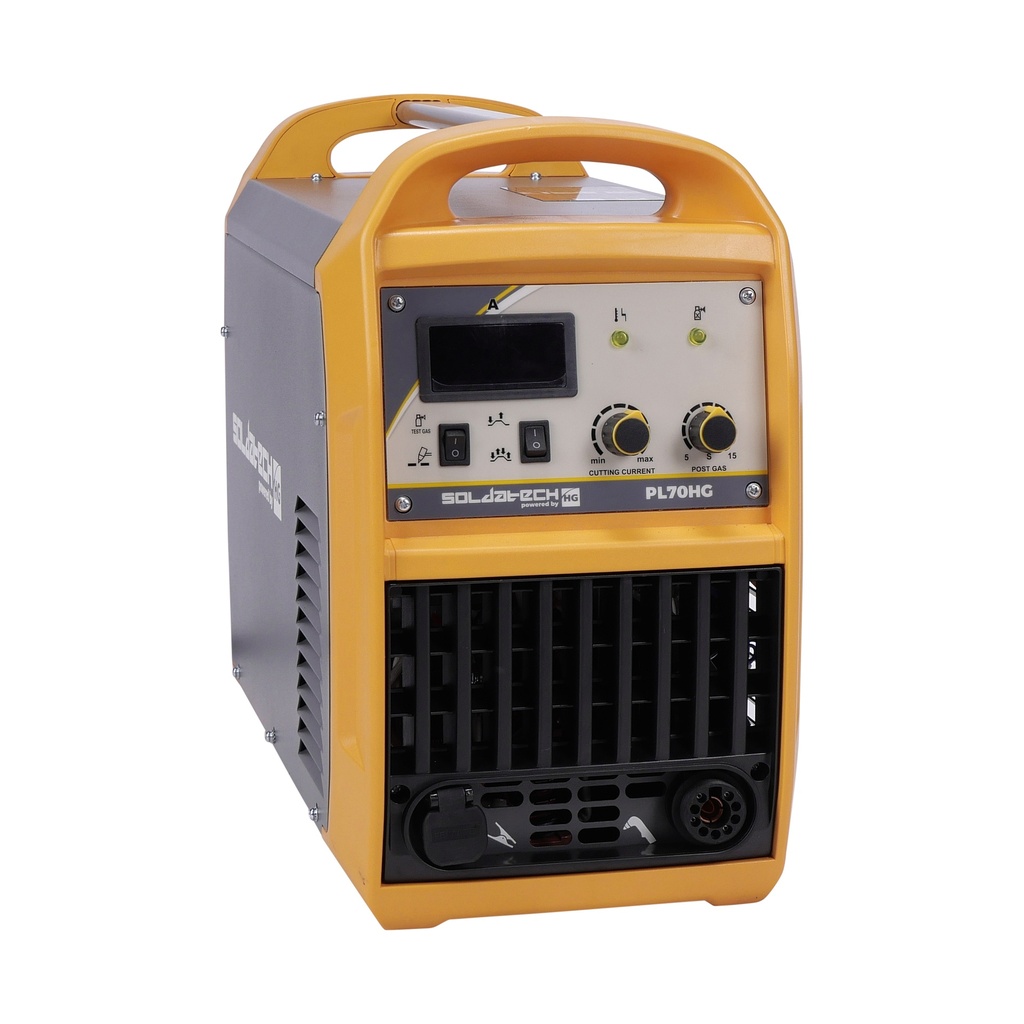

[PL70HG] Plasma cutter 70A

Plasma Brand: Soldatech Soldatech

Product Code: PL70HG

EAN: 8720028090778

Availability: Available

https://www.valkenpower.com/web/image/product.template/59762/image_1920?unique=7189412

€ 800.00 800.0 EUR € 800.00

€ 800.00

Not Available For Sale

  • Frequency
  • Voltage
  • Input power
  • Max. unloaded voltage
  • Max. cutting thickness
  • Recommended cutting thickness
  • Circuit breaker
  • Duty cycle @20C
  • Duty cycle @40C
  • Air consumption
  • Protection class
  • Welding current range

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Plasma cutter / plasma cutting machine

This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL70HG is a compact, powerful and easy to use plasma cutter that is equipped with Pilot ARC ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting smoothly through rusted, coated or structured material up to 25mm.
The PL70HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.
The modern IGBT inverter technology not only ensures that the PL70HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL70HG comes standard with:

  • Soldatech PL80M5 plasma torch with 5m cable
  • work clamp with 2m 16mm² cable
  • Gas line of 4m with hose clamps
  • 5-pin 32A plug with 2.5m 4x2.5mm² cable
  • Standard 9mm Dinse cable couplings


Technical specifications:

  • voltage = 400V - 3 phase
  • frequency = 50/60Hz
  • fuse protection = 20A B-char
  • input power = 9.4kVA
  • duty cycle (at 20°C ambient temperature) = 100% - 70A
  • duty cycle (at 40°C ambient temperature) = 60% - 70A
  • welding current range = 25 - 70A
  • max. unloaded voltage = 330V
  • recommended cutting thickness = 17mm
  • max. cutting thickness = 25mm
  • average air / gas consumption = 220L/min
  • protection class = IP21S
  • dimensions = 550 x 245 x 405mm
  • weight = 23.5kg
Product Dimensions:
Product Length 550 mm
Product Width 245 mm
Product Height 405 mm
Product Weight 23.5 Kg
Package Dimensions:
Package Length 700 mm
Package Width 335 mm
Package Height 460 mm
Package Weight 28.80 Kg

  • IGBT invertor technology

  • Infinitely adjustable

  • Pilot ARC ignition

  • 2-stroke / 4-stroke switch

  • 5 years warranty

Specifications

Frequency 50/60 Hz
Voltage 400V - 3 Phase
Input power 9.4kVA
Max. unloaded voltage 330V
Max. cutting thickness 25mm
Recommended cutting thickness 17mm
Circuit breaker 20A B-char
Duty cycle @20C 100% - 70A
Duty cycle @40C 60% - 70A
Air consumption 220L/min
Protection class IP21S
Welding current range 25 - 70A
