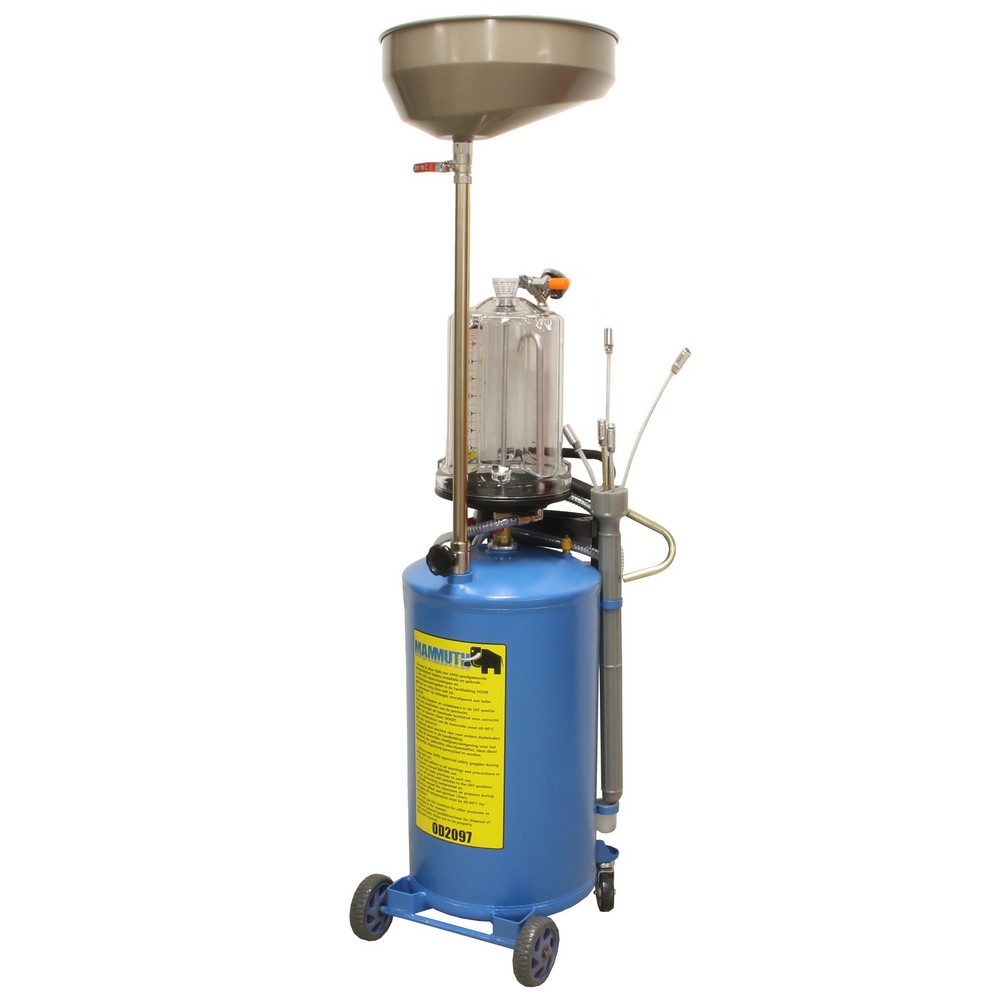

Pneumatic oil extractor
- provided with strainer
- air inlet pressure = 6 ~ 8bar / 116psi
- ejection pressure = 0,7 ~ 1bar / 10 ~ 15psi
- air consumption = 150L/min
- vacuum degree = 0 ~ -1bar / -15psi
- tank capacity = 65L
- oil tray volume = 16L
- working temperature = 40 ~ 60degrees celcius

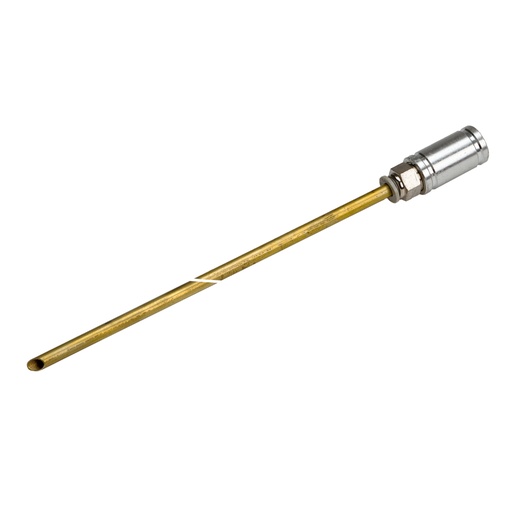

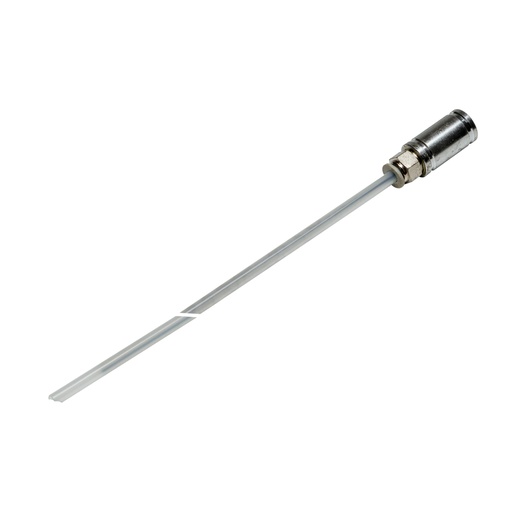

Suction probes:
- suction probes = diam. 5 x L80cm (PVC) = 1,9L/min
- suction probes = diam. 6 x L80cm (PVC) = 3,2L/min
- suction probes = diam. 6 x L70cm (PVC) = 4,2L/min
- suction probes = diam. 8 x L70cm (PVC) = 6,2L/min
- suction probes = diam. 6 x L80cm (PVC) = 3,7L/min
- suction probes = diam. 8 x L80cm (PVC) = 5,2L/min
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 470 mm |
| Product Width | 380 mm |
| Product Height | 1,630 mm |
| Product Weight | 21.3 Kg |
| Package Dimensions: | |
| Package Length | 480 mm |
| Package Width | 440 mm |
| Package Height | 1,120 mm |
| Package Weight | 25.20 Kg |
