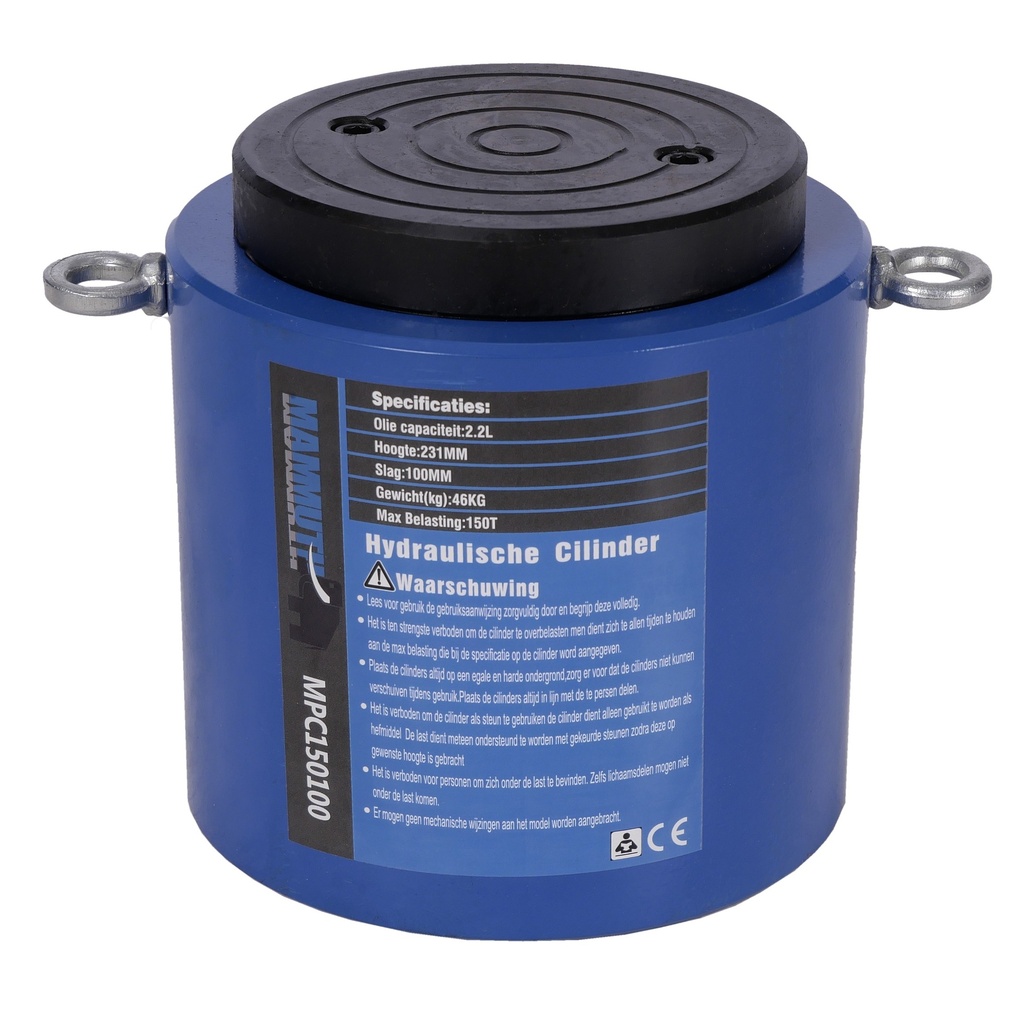

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 150 ton
stroke = 100mm
effective area = 201cm^2
oil capacity = 2,010 L
height of product = 216mm
extended height = 331mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 275 mm |
| Product Width | 205 mm |
| Product Height | 215 mm |
| Product Weight | 45.6 Kg |
| Package Dimensions: | |
| Package Length | 285 mm |
| Package Width | 215 mm |
| Package Height | 225 mm |
| Package Weight | 47.00 Kg |
