Quad and trike lift 675kg hydraulic and pneumatic

[ML75HA] Quad and trike lift 675kg hydraulic and pneumatic

Motorcycle equipment / Motorcycle lifts Brand: Mammuth Mammuth

Product Code: ML75HA

EAN: 8720028062775

Availability: Available

https://www.valkenpower.com/web/image/product.template/49517/image_1920?unique=cccbc2a

€ 725.00 725.0 EUR € 725.00

€ 725.00

Not Available For Sale

  • Lifting capacity
  • Lifting height min.
  • Platform dimensions
  • Lifting height max. incl. pads
  • Air pressure
  • Ramp size

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Quad lift / quad lift table / motorcycle lift / motor lift / ATV lift

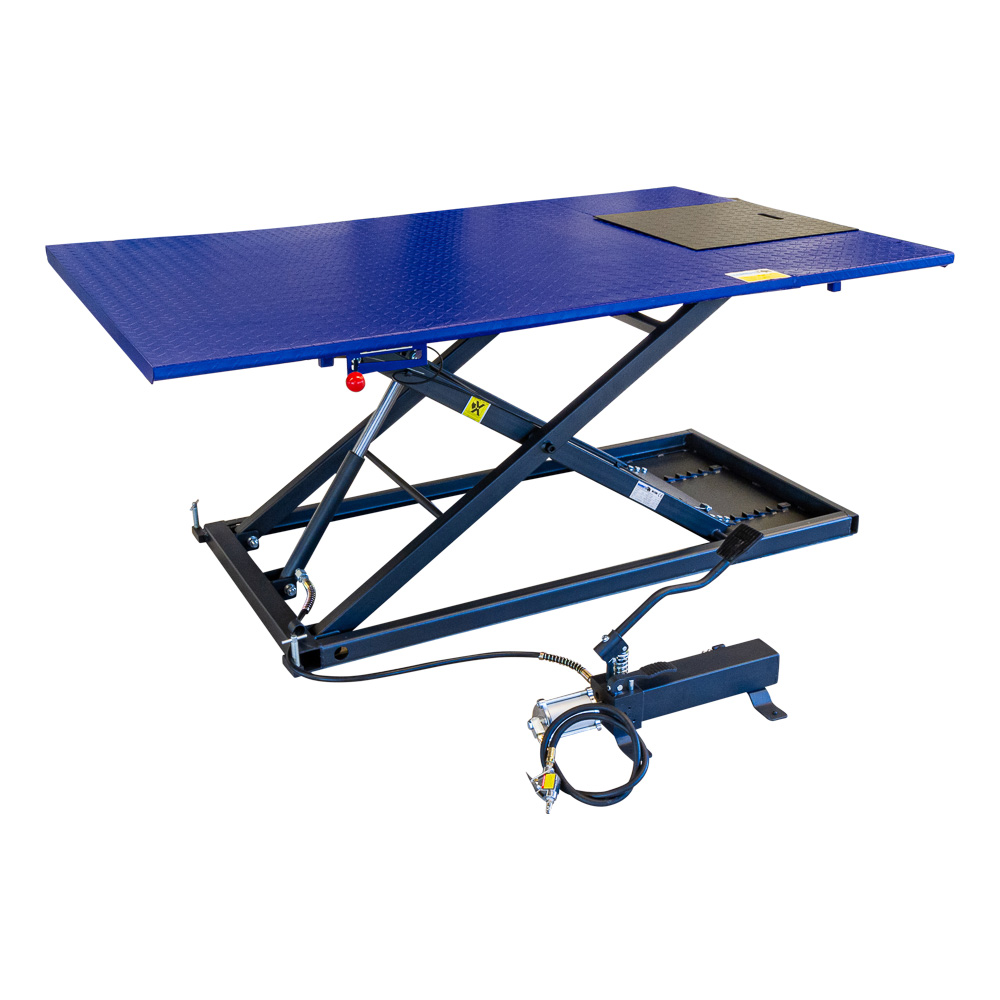

This quad lift is suitable for the larger and wider bikes such as quads, trikes and ride-on mowers. The lift can be operated with both a foot pump and an air pump.
The scissor lift model provides a robust construction and extra stability. The locking works bij means of teeth that can be unlocked with the aid of a lever. The lift is also equipped with a removable plate.

Specifications:

  • capacity = 675kg

  • min. height = 185mm

  • max. lifting height = 825mm

  • platform size = 1995 x 1190mm

  • ramp size = 650 x 1190mm

  • required air pressure = 7 - 8 bar

Dimensions of the packing box = 205 x 124,5 x 31cm

Product Dimensions:
Product Length 1,995 mm
Product Width 1,190 mm
Product Height 825 mm
Product Weight 174.0 Kg
Package Dimensions:
Package Length 2,070 mm
Package Width 1,260 mm
Package Height 545 mm
Package Weight 272.50 Kg

  • Robust frame

  • Anti-slip surface

  • Extra wide platform

  • Security through gearing

  • Removable plate

Specifications

Lifting capacity 675 kg
Lifting height min. 185 mm
Platform dimensions 1190 x 1995 mm
Lifting height max. incl. pads 825 mm
Air pressure 7 - 8 bar
Ramp size 650 x 1190 mm
