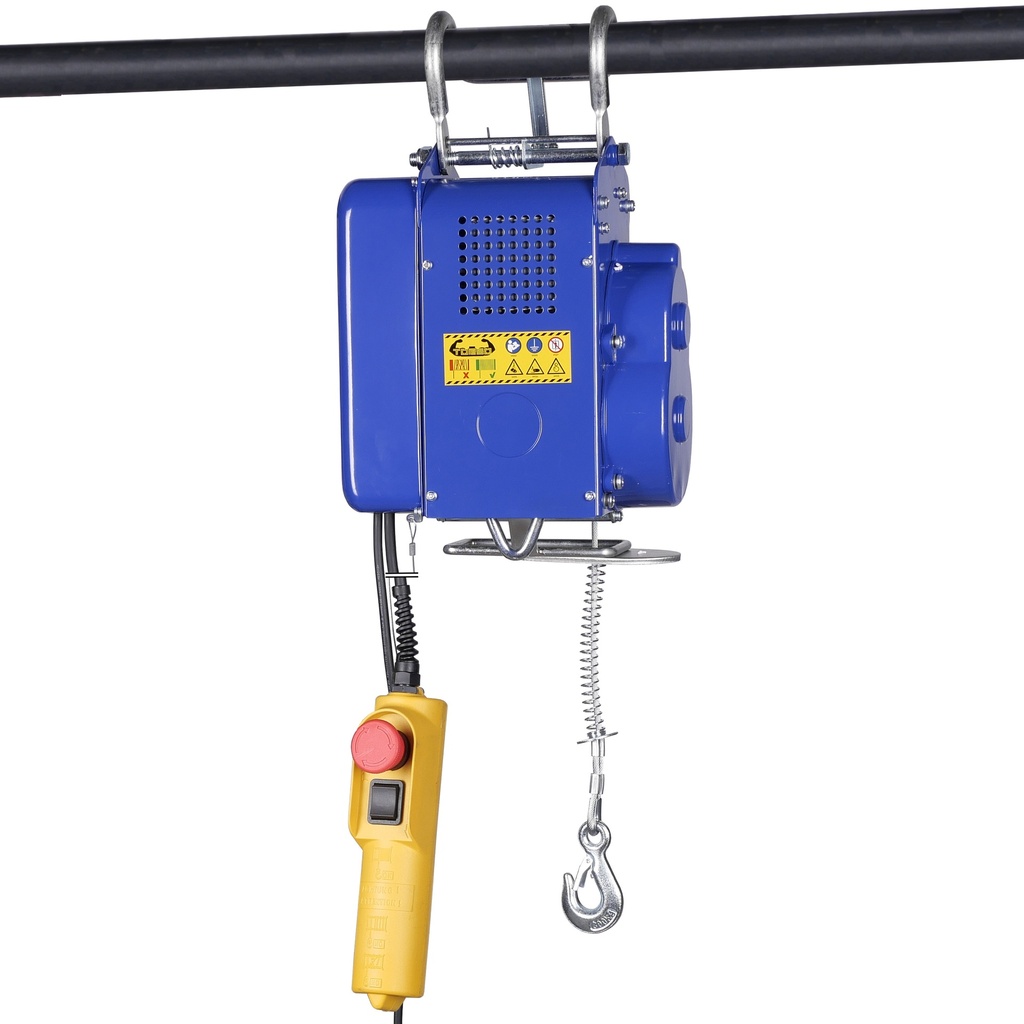

Torso electric winch is the ideal choice for lifting jobs on construction sites, in technical environments and in industrial applications. With a lifting capacity of 600 kg, user-friendly design and maximum safety features, this electric cable winch offers an efficient solution for any job.
Thanks to its compact size, the winch is easy to install and ready for immediate use.
Hoist specifications:
- Versatile use: suitable as an electric construction winch, cart winch or cable winch for various applications.
- Easy installation: light and compact, easy to mount on scaffolding or other anchor points.
- Maximum safety: complies with Machine Directive 2006/42/EC Equipped with emergency stop, integrated load pressure brake and overload protection.
- Ready to use immediately: supplied with mounting bracket,
- Suitable for various applications: ideal for construction projects, technical environments and light industrial work.
Specifications
| Lifting capacity | 300 / 600 kg |
| Voltage | 230V / 50 Hz |
| Lifting speed loaded | 4 m/min. / 8 m/min. |
| Lifting height max. | 9 m / 18 m |
| Rope diameter | 4.5 mm |
| Input power | 1050 W |
| Input current | 4.6 A |
| Rope length | 12 m |
| Insulation class | B |
| Protection class | IP54 |
| Rope tensille strength | 1770 N/mm² |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 285 mm |
| Product Width | 235 mm |
| Product Height | 150 mm |
| Product Weight | 21.0 Kg |
| Package Dimensions: | |
| Package Length | 485 mm |
| Package Width | 360 mm |
| Package Height | 307 mm |
| Package Weight | 22.00 Kg |
| Package Type: | |
| 15 Pcs |
