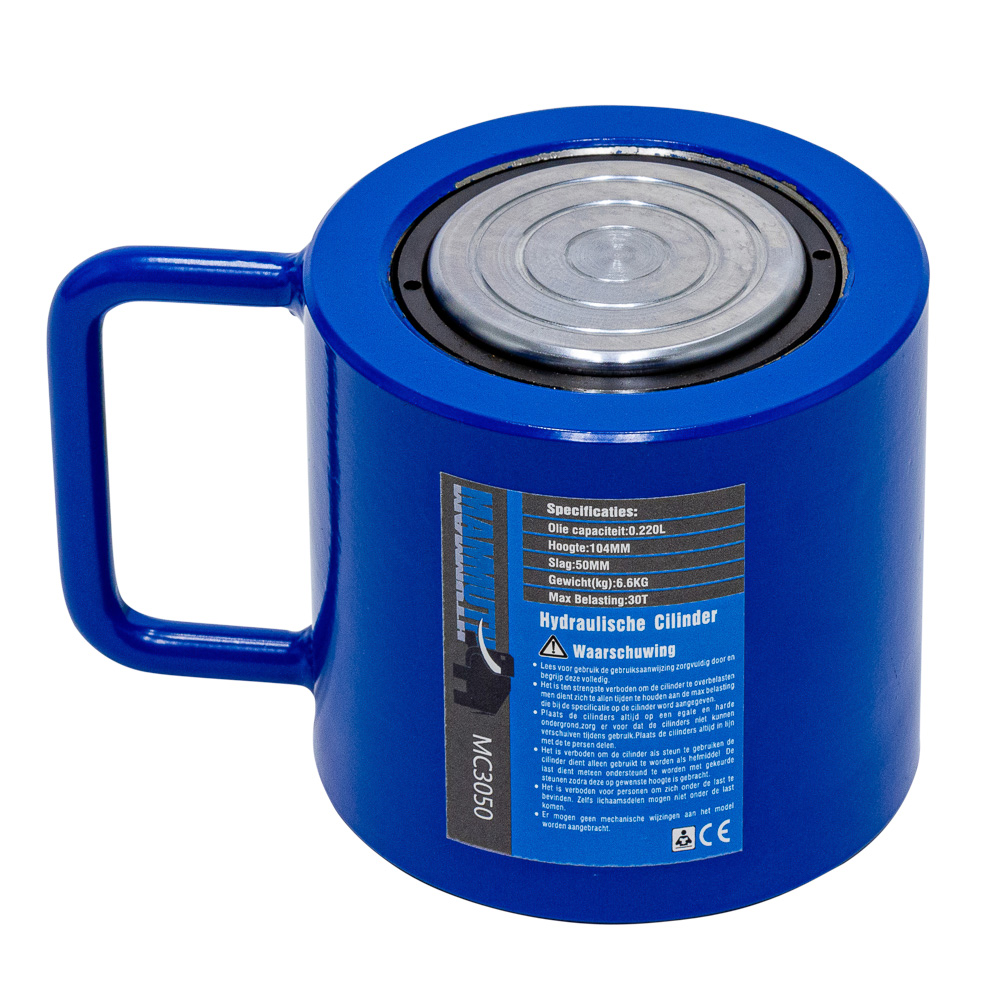

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 30 ton
- stroke = 50mm
- effective area = 31,1cm^2
- oil capacity = 0,22 L
- height of product = 104mm
- extended height = 154mm
- outside diameter = 105mm
- bore diameter = 75mm
- plunger diameter = 86mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 175 mm |
| Product Width | 105 mm |
| Product Height | 105 mm |
| Product Weight | 6.8 Kg |
| Package Dimensions: | |
| Package Length | 185 mm |
| Package Width | 115 mm |
| Package Height | 115 mm |
| Package Weight | 8.00 Kg |
