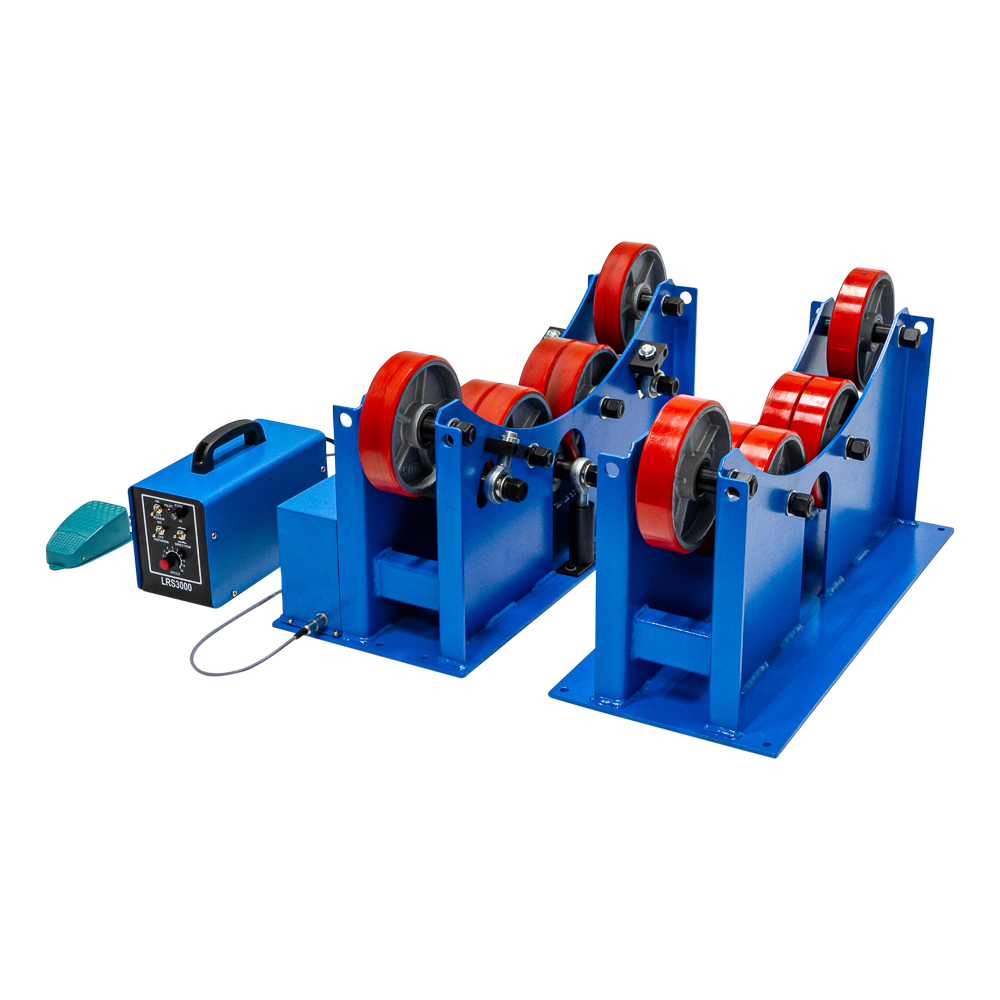

Welding turning roll
This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.
With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.
Technical specifications:
power supply = 230V
frequency = 50/60 Hz
power = 400W
load capacity = 3000kg
rotation speed = 100-1100mm/min
diameter range = 70 - 1200mm
diameter rollers = 200mm
width rollers = 50mm
measurements control box = 320 x 140 x 180mm
measurements machine = 810 x 660 x 435mm
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 152.0 Kg |
| Package Dimensions: | |
| Package Length | 985 mm |
| Package Width | 770 mm |
| Package Height | 560 mm |
| Package Weight | 186.00 Kg |
| Package Type: | |
| 1 Pcs |
