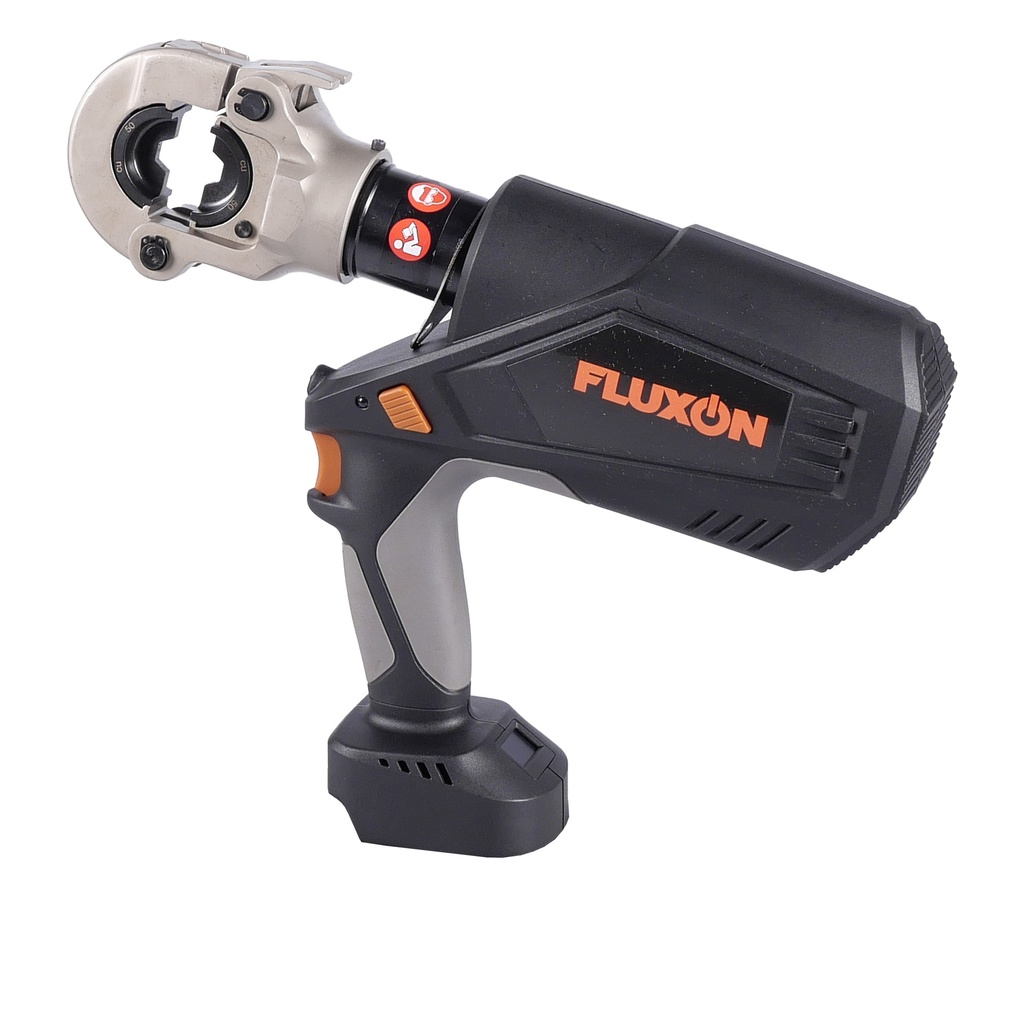

Cable crimping pliers Body 300mm 60kN

The Battery-powered cable crimping tool 60kN from Fluxon is a versatile and efficient tool that makes crimping cables easy. With features like an OLED display, one button operation, and a swivel head that can rotate 350 degrees, this tool is designed to make your job easier.
Not only does it have automatic retraction for quick and easy crimping, but it also allows for quick crimp dies change, saving you time and effort. Also including shoulder strap, the tool uses CH15 oil type, with a stroke of 17 mm and a crimping force of 60 kN. It can handle a crimping range of 300 mm² for Al cables and 240 mm² for other cables.
With a crimping cycle of 2.5 to 5 seconds, depending on the size of the cable, this tool offers fast and efficient crimping. The crimping dies included range from 16 to 300 mm², ensuring that you have the right size for any job.

Set contains:
- 1x Cable crimping pliers
- 1x O-ring set
- 1x Shoulder strap
- 1x Sturdy storage case.

Product Dimensions:
Product Length	360 mm
Product Width	80 mm
Product Height	270 mm
Product Weight	4.01 Kg
Package Dimensions:
Package Length	455 mm
Package Width	615 mm
Package Height	150 mm
Package Weight	9.45 Kg

Stroke	17 mm
Voltage	18V DC
Ambient temperature	-10~40°C
Battery voltage	18V
Crimping force	60 kN
Crimping range	300 mm²/ Al 240 mm²
Crimping cycle	2.5 - 5 sec. (depending on the cable size)
Crimping dies	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²
Charging time	± 80 min.
Oil type	CH15
Oil capacity	0.115 L

Cable crimping pliers Body 300mm 60kN

€ 907.50 Incl. VAT https://schema.org/SoldOut 907.5 EUR € 907.50

€ 750.00
