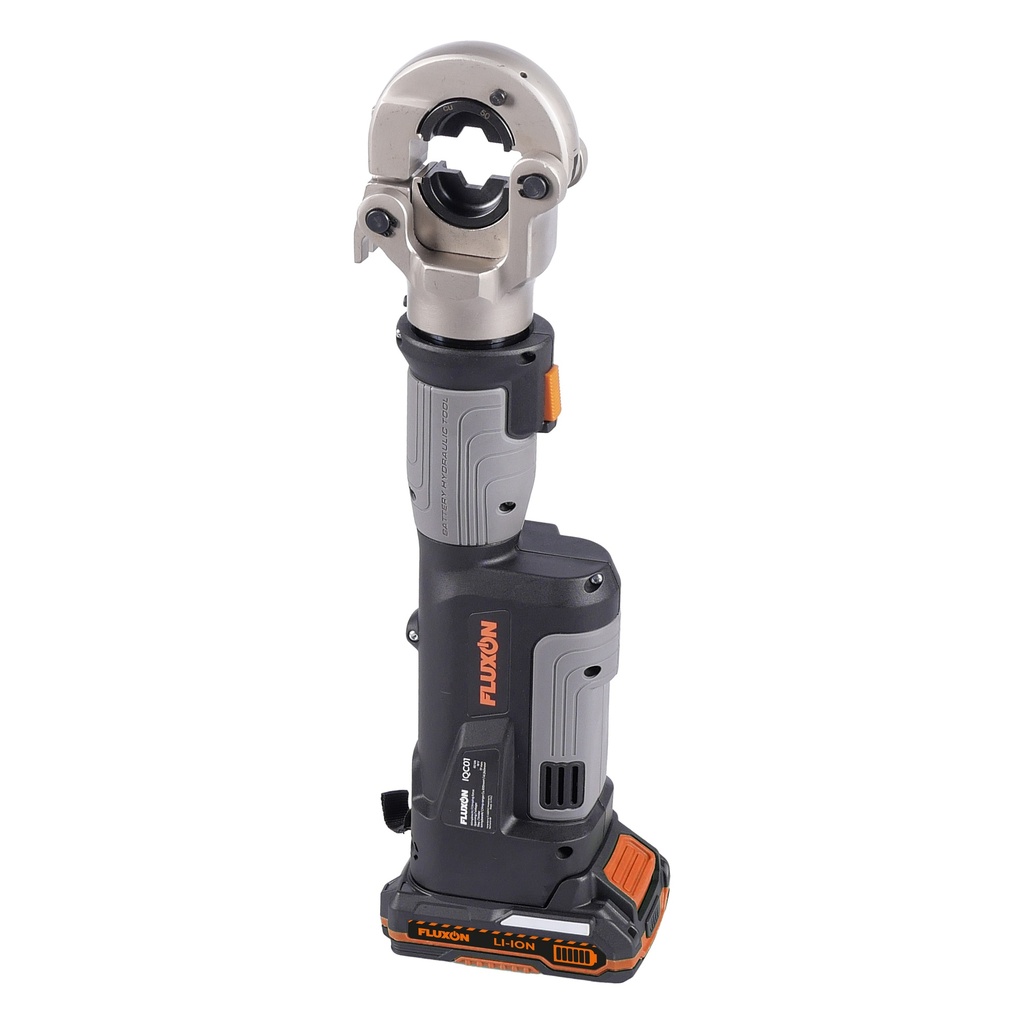

Cable crimping pliers SET 2x 2.0Ah batteries + charger 300mm 60kN

Tools / Hand Tools / Pliers / Crimping pliers Brand: Fluxon Fluxon

Product Code: IQC01B2

EAN: 8720028122028

Availability: Available

€ 907.50 Incl. VAT https://schema.org/InStock 907.5 EUR € 907.50

€ 750.00

  • Stroke
  • Voltage
  • Ambient temperature
  • Battery voltage
  • Crimping force
  • Crimping range
  • Battery technology
  • Oil capacity
  • Crimping cycle
  • Battery type
  • Crimping dies
  • Charger
  • Charging time
  • Oil type

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Description Size and Weight

The Battery-powered cable crimping tool 60kN from Fluxon is a versatile  tool that makes crimping cables easy. With features like an OLED display, one button operation, and a swivel head that can rotate 180 degrees, this tool is designed to make your job easier.
Not only does it have automatic retraction for quick and easy crimping, but it also allows for quick crimp dies change, saving time and effort. The tool uses CH15 oil type, with a stroke of 17 mm and a crimping force of 60kN. It can handle a crimping range of 300 mm² for Al cables and 240 mm² for other cables.
With a crimping cycle of 2.5 to 4 seconds, depending on the size of the cable, this tool offers fast and efficient crimping. The crimping dies included range from 16 to 300 mm², ensuring that you have the right size for any job.

Set contains:
- 1x Cable crimping pliers
- 2x Batteries 18V 2.0Ah Li-Ion
- 1x Battery charger
- 1x O-ring set
- 1x Shoulder strap
- 1x Sturdy storage case.
Product Dimensions:
Product Length 400 mm
Product Width 75 mm
Product Height 120 mm
Product Weight 3.58 Kg
Package Dimensions:
Package Length 415 mm
Package Width 530 mm
Package Height 155 mm
Package Weight 8.94 Kg

  • OLED display
  • One-button operation
  • Rotatable head 180°
  • Quick-change system
  • Compact design

Specifications

Stroke 17 mm
Voltage 18V DC
Ambient temperature -10~40°C
Battery voltage 18V / 2.0Ah
Crimping force 60 kN
Crimping range 300 mm²/ Al 240 mm²
Battery technology Lithium-ion
Oil capacity 0.6L
Crimping cycle 2.5 - 4 sec. (depending on the cable size)
Battery type Sliding battery
Crimping dies 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²
Charger 230V / 2.3A
Charging time ± 40 min.
Oil type CH15
