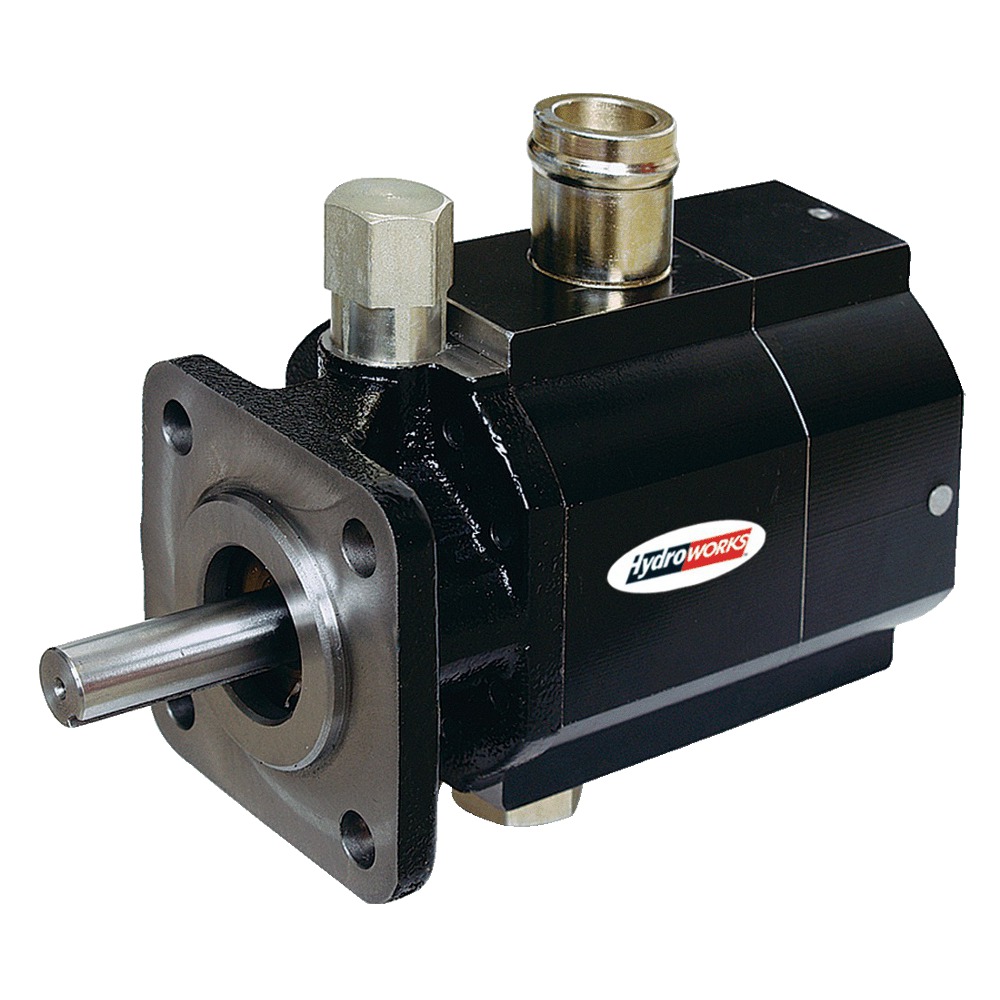

Gear pump 2 stage
aluminum contstruction
large displacement at low pressure, small displacement at high pressure
max. pressure is 200bar
range is 500 - 3600RPM
excellent for log splitters, pressers and trash compactors
- gear displacement:
low pressure = 60LPM
high pressure = 15LPM
- required power = 11PK
- shaft = 12,5mm
- inlet = 1'' NPT
- outlet = 1/2'' NPT
Product Dimensions: | |
---|---|
Product Length | 0 mm |
Product Width | 0 mm |
Product Height | 0 mm |
Product Weight | 4.3 Kg |
Package Dimensions: | |
Package Length | 0 mm |
Package Width | 0 mm |
Package Height | 0 mm |
Package Weight | 5.00 Kg |
