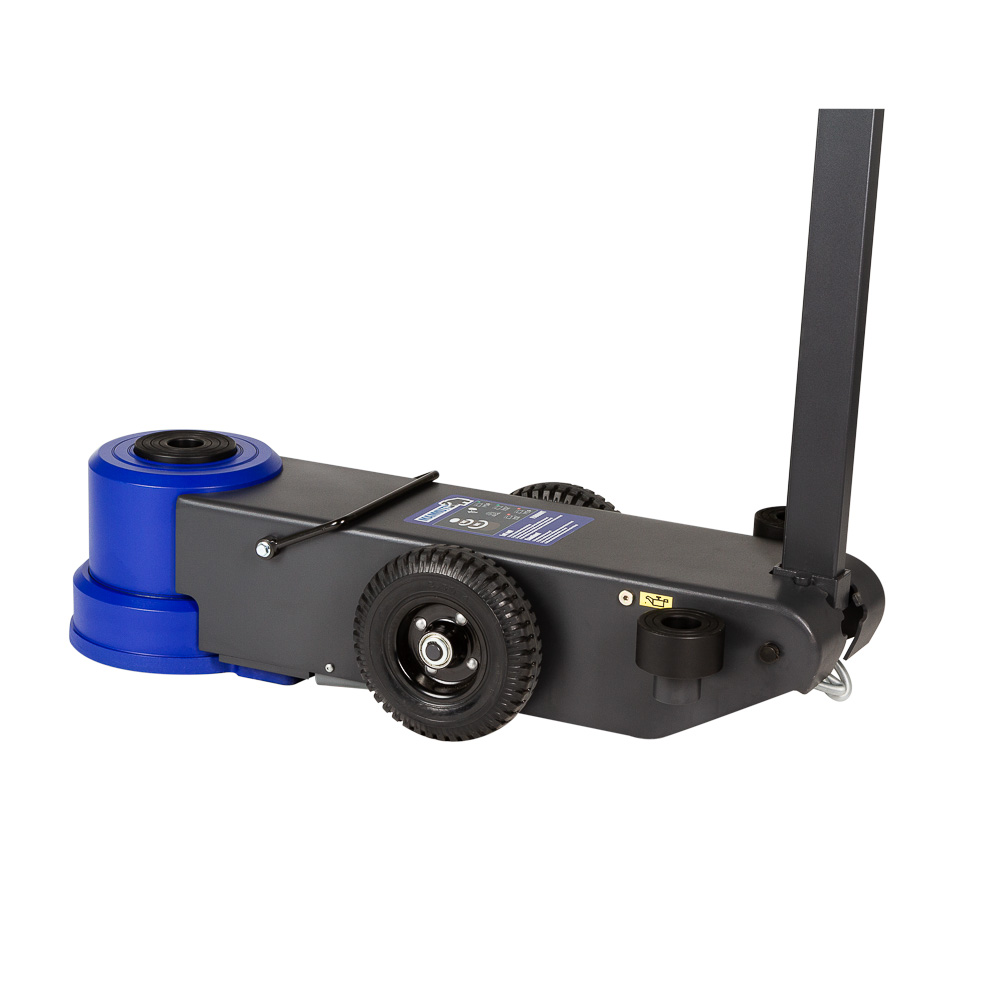

This series of Mammuth pneumatic hydraulic garage jacks are ideal for intensive industrial use.
With these air jacks, safe lifting of trucks, buses, trailers, machines and more becomes a simple job.
Thanks to its sophisticated design, this air jack has the following useful features:
dead man's switch: jack immediately switches off when the joystick is released
optimum stability due to the wide base
hard chromed cylinders, both internal and external
cylinders are provided with sealing rings to prevent oil leakage
safety overload valve
reducing valve for delay during lowering
large sturdy rubber wheels
Specifications:
capacity = 80T / 50T - 2 steps
minimum lifting height = 231mm
maximum lifting height without adapters = 445mm
maximum lifting height with adapters = 565mm
step 1 - 80T = 110mm, height from floor = 341mm
step 2 - 50T = 102mm, height from floor = 445mm
adapters = 75mm and 45mm
average air consumption = 300L/min
working pressure = 9 - 12 bar
coupling = male connector euroline 1/4"
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 115.0 Kg |
| Package Dimensions: | |
| Package Length | 420 mm |
| Package Width | 1,390 mm |
| Package Height | 450 mm |
| Package Weight | 119.00 Kg |
| Package Type: | |
| 1 Pcs |
