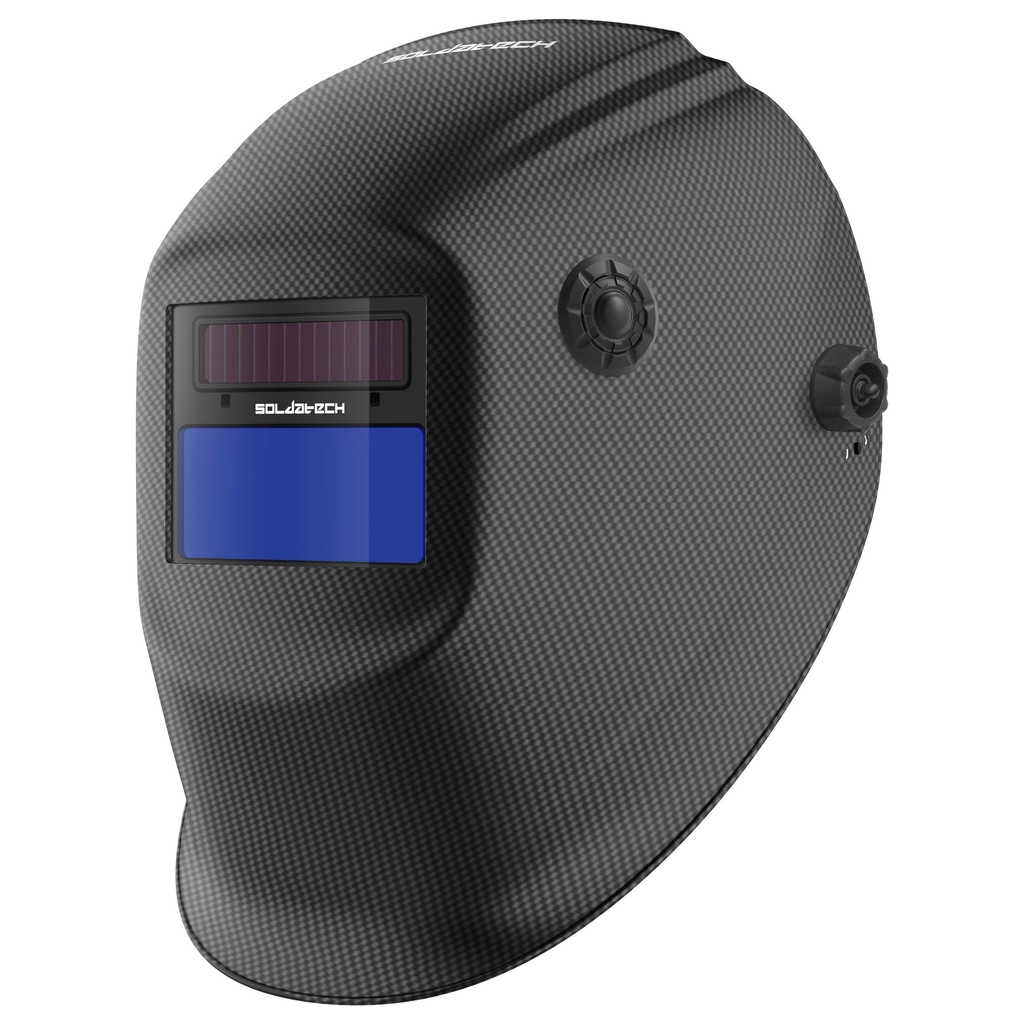

The SmartCLear EWH3C welding helmet provides reliable protection and clear visibility for various welding tasks, including TIG welding.
The 98x44mm viewing area ensures a wide and sharp field of vision, while the DIN 3 light state improves brightness before welding.
The helmet is powered by a solar cell with a backup battery, ensuring consistent auto-darkening.
An external push button allows easy welding and Grind mode selection, even with gloves.
Designed for comfort, the four-strap headgear distributes weight evenly for a secure fit.
The flexible nylon shell is both lightweight and impact-resistant, featuring a sleek carbon graphic design that makes you look as sharp as your welding skills.
Key features:
- Lightweight: reduces strain during long use.
- Suitable for TIG welding: minimum 5A TIG sensitivity.
- Clear lens technology: sharp vision and brightness.
- Flexible nylon shell: durable, flexible, and impact-resistant.
- External push button: easy mode selection with gloves.
- Sleek carbon graphic design: makes you look as sharp as your welding skills.
- Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.
Specifications
| Optical class | 1/1/1/2 |
| Viewing area | 98 x 44 mm |
| Cartridge size | 110 x 90 x 9mm |
| Arc sensor | 2 |
| Light state | DIN 3 |
| Dark state | DIN 7 ~ 13 |
| Shade control | internal, variable shade |
| Power on/off | automatic on/off |
| Sensitivity control | low-high by infinitely dial knob |
| Protection (UV/IR) | DIN 16 |
| Power supply | solar cell, 1x CR2450 lithium battery replaceable |
| Switching time (light to dark) | 1/16000 sec. |
| Delay time (dark to light) | 0.1 - 1.0 sec. by infinitely dial knob |
| Low amperage TIG rated | ≥ 5 amps (DC); ≥ 5 amps (AC) |
| Grinding | Yes |
| Operating temperature | -10℃~＋55℃ |
| Storage temperature | -20°C ~ +70°C |
| Helmet material | High impact resistance nylon |
| Carbon | |
| Battery capacity test | Yes |
| Low battery indicator | Yes |
| MMA welding applications | SMAW |
| TIG welding applications | GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC |
| MIG welding application | GMAW (MIG/MAG) / GMAW-P |
| Cutting welding application | PAC / CAC-A |
| Other welding application | PAW |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 330 mm |
| Product Width | 240 mm |
| Product Height | 220 mm |
| Product Weight | 0.53 Kg |
| Package Dimensions: | |
| Package Length | 300 mm |
| Package Width | 260 mm |
| Package Height | 260 mm |
| Package Weight | 0.97 Kg |
