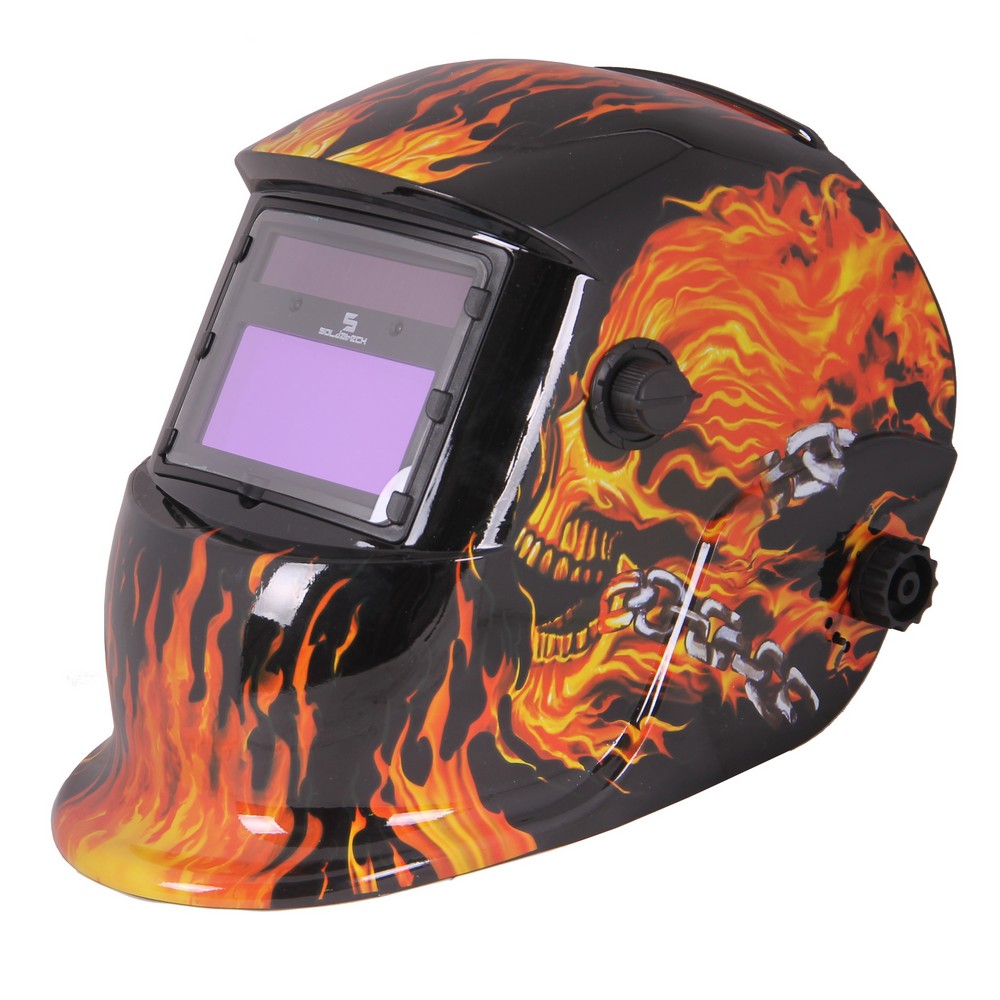

Welding helmet automatic "fire"

[EWH1LF] Welding helmet automatic "fire"

HELMET Brand: Soldatech Soldatech

Product Code: EWH1LF

EAN: 8720028077595

Availability: Available

https://www.valkenpower.com/web/image/product.template/49150/image_1920?unique=6c058c3

€ 35.00 35.0 EUR € 35.00

€ 35.00

Not Available For Sale

  • Optical class
  • Viewing area
  • Cartridge size
  • Head strap
  • Arc sensor
  • Light state
  • Dark state
  • Power on/off
  • Sensitivity control
  • Protection (UV/IR)
  • Switching time (light to dark)
  • Low amperage TIG rated
  • Operating temperature
  • Print
  • Colour control knob
  • Power supply
  • Delay time (dark to light)
  • Storage temperature

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Automatic welding helmet

This professional welding helmet is suitable for all welding jobs. The welding helmet is provided with a grinding function, so that the helmet can also be used te grind without the window turning dark.
The welding helmet is also provided with a low volume battery alarm. This alarm indicates when the battery is low.
Further, the welding helmet is equipped with a test function. Using this safety feature allows you to test whether the viewing window actually turns dark.
This will prevent you from experiencing unexpected burden of bright light during welding, because the viewing window is not turning dark.

Suitable for:
- TIG welding
- MIG CO2 welding
- ARC welding
- grinding
- plasma cutting

Comes with Dutch instructions including EG-declaration and standard.
- 89/686/EEC
- 89/336/EEC

Including plastic interior and exterior windows.

Product Dimensions:
Product Length 335 mm
Product Width 220 mm
Product Height 210 mm
Product Weight 0.48 Kg
Package Dimensions:
Package Length 230 mm
Package Width 230 mm
Package Height 340 mm
Package Weight 0.79 Kg
Package Type:
Overdoos 6 Pcs


Specifications

Optical class 1/1/1/3
Viewing area 98 x 48mm
Cartridge size 110 x 90 x 9mm
Head strap with sweat strap
Arc sensor 2
Light state DIN 4
Dark state 9 ~ 13
Power on/off automatic on/off
Sensitivity control low-high by infinitely dial knob
Protection (UV/IR) DIN 16
Switching time (light to dark) 1/25000 sec.
Low amperage TIG rated 5 amps
Operating temperature -5 ~ 55С
Print Fire Skull
Colour control knob outside, variable
Power supply 2x CR2032 lithium battery
Delay time (dark to light) 0.1 - 1.0s
Storage temperature -20°C ~ +70°C
