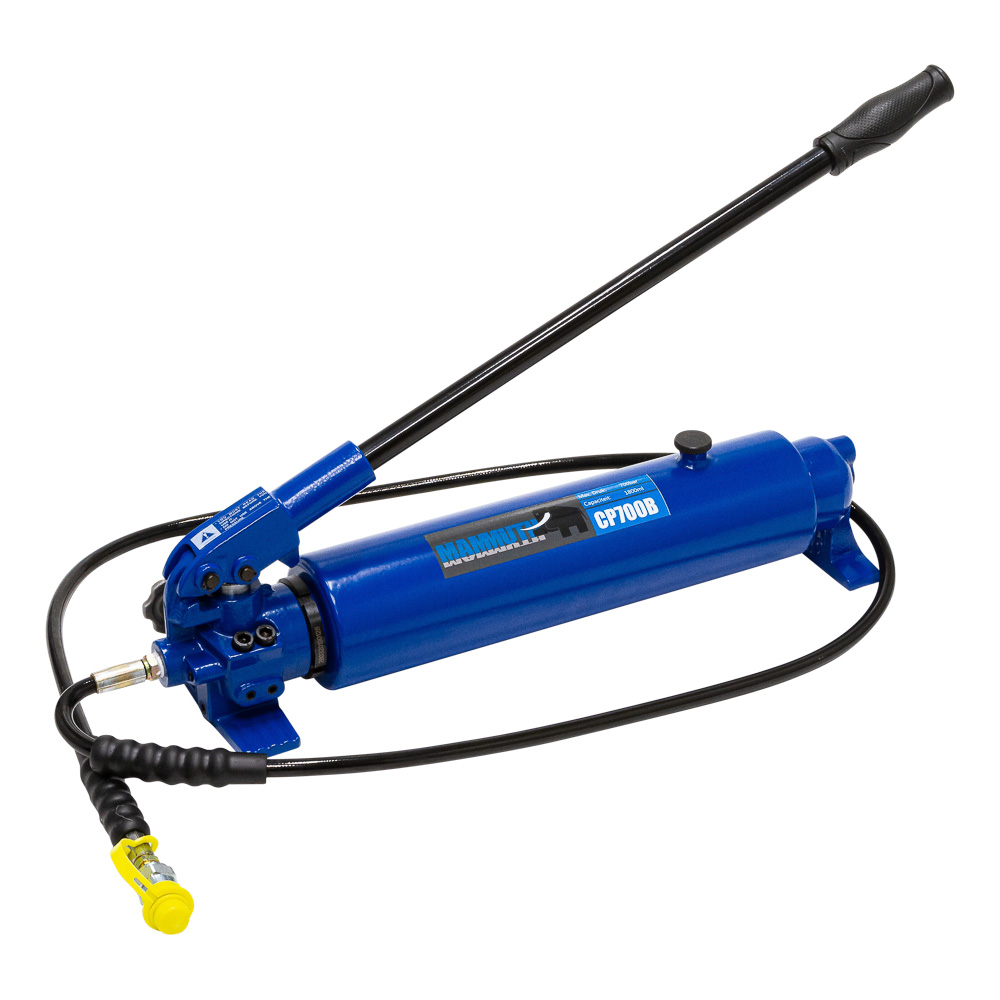

Hydraulic hand pump
Hydraulic operated pump to drive crimping head, cutting heads and punching head. Including 2M high pressure hose and couple plug.
- max. output pressure: low pressure = 20 bar / 2MPa
high pressure = 700 bar / 70MPa
- output of the oil: low pressure = 13cc / 13ml
high pressure = 2.3cc / 2.3ml
- capacity of the oil = 2000ml
Product Dimensions: | |
---|---|
Product Length | 510 mm |
Product Width | 140 mm |
Product Height | 160 mm |
Product Weight | 0.0 Kg |
Package Dimensions: | |
Package Length | 770 mm |
Package Width | 225 mm |
Package Height | 250 mm |
Package Weight | 14.00 Kg |
Package Type: | |
Pallet | 20 Pcs |
