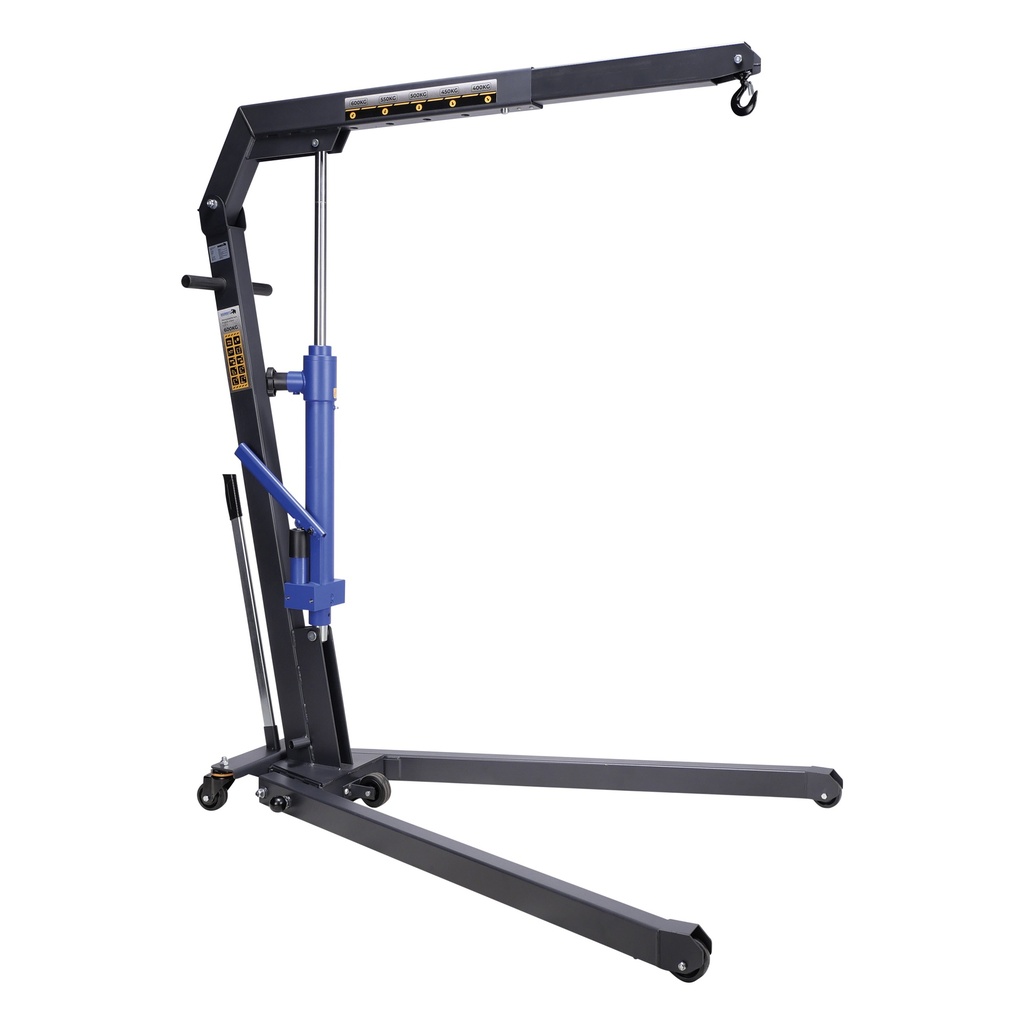

This Mammuth engine crane is a reliable choice for lifting and moving loads up to 600 kg. Ideal for workshops and garages, this crane offers the power and reliability you need. Furthermore, it is foldable, taking up minimal space for storage or transport.
- Low base: With a height of just 92mm, ideal for applications with limited clearance.
- Glass-reinforced nylon wheels: Wear-resistant, better load-bearing, and resistant to oil, grease, acids, and other chemicals.
- Controlled lowering speed: Ensures smooth and safe lowering of the load.
- Quick lift system with rotating cylinder: The dual hydraulic pump speeds up lifting with fewer strokes, while the rotating cylinder offers extra flexibility.
- 5 positions with automatic locking: Quickly and safely select the right position for every task.
Position 1 (400Kg)
Minimum height: 285mm
Maximum height: 2300mm
Arm length: 1350mm
Position 2 (450Kg)
Minimum height: 375mm
Maximum height: 2250mm
Arm length: 1260mm
Position 3 (500Kg)
Minimum height: 465mm
Maximum height: 2190mm
Arm length: 1160mm
Position 4 (550Kg)
Minimum height: 555mm
Maximum height: 2140mm
Arm length: 1060mm
Position 5 (600Kg)
Minimum height: 645mm
Maximum height: 2080mm
Arm length: 960mm
Specifications
| Material | Steel |
| Lifting capacity | 600 kg |
| Length folded | 665 mm |
| Width folded | 390 mm |
| Height folded | 1540 mm |
| Base height | 92 mm |
| Wheel material | Glasvezelversterkt nylon |
| Wheel diameter | ø105 mm |
| Oil capacity | 0.7 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,375 mm |
| Product Width | 925 mm |
| Product Height | 1,540 mm |
| Product Weight | 73.4 Kg |
| Package Dimensions: | |
| Package Length | 380 mm |
| Package Width | 1,595 mm |
| Package Height | 240 mm |
| Package Weight | 78.00 Kg |
