Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 300 ton - stroke = 50mm - effective area = 514,5cm^2 - oil capacity = 2,08 L - height of product = 181mm - extended height = 231mm - outside diameter = 287mm - bore diameter = 230mm - plunger diameter = 210mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

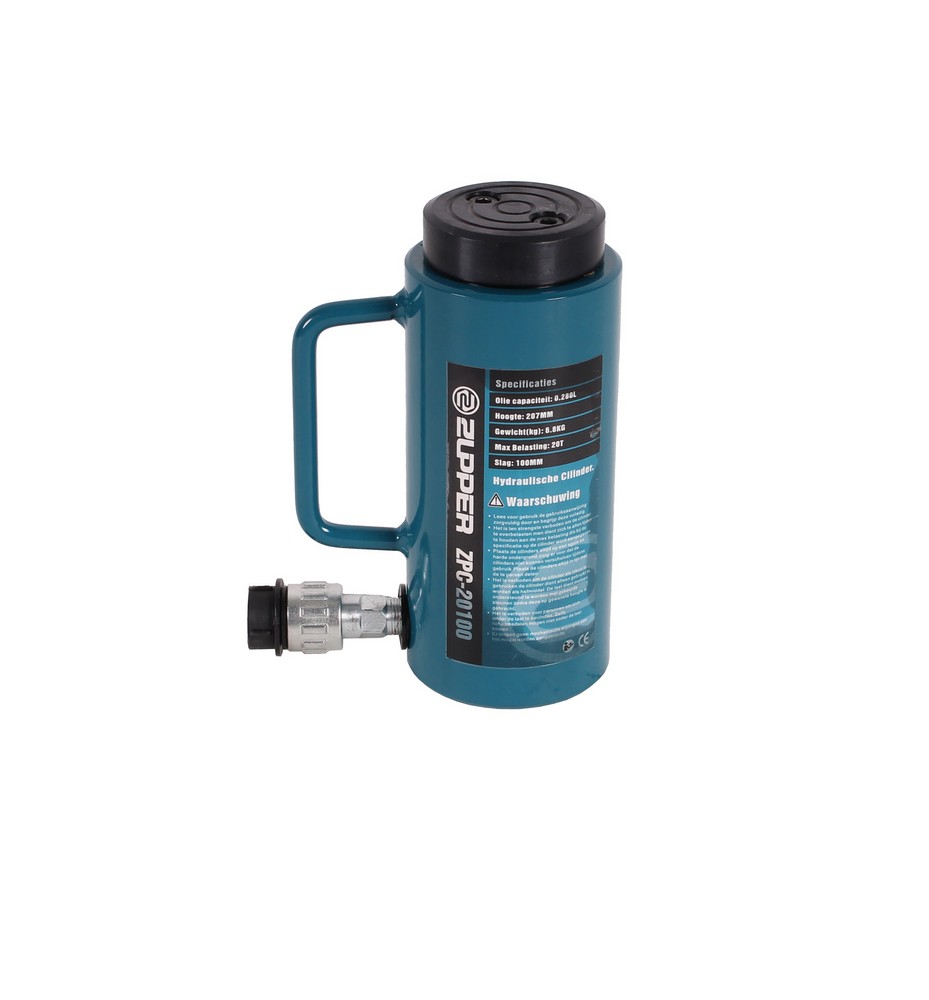

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 20 ton - stroke = 100mm - effective area = 33,2cm^2 - oil capacity = 0,332 L - height of product = 207mm - extended height = 307mm - outside diameter = 88mm - bore diameter = 65mm - plunger diameter = 55mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar

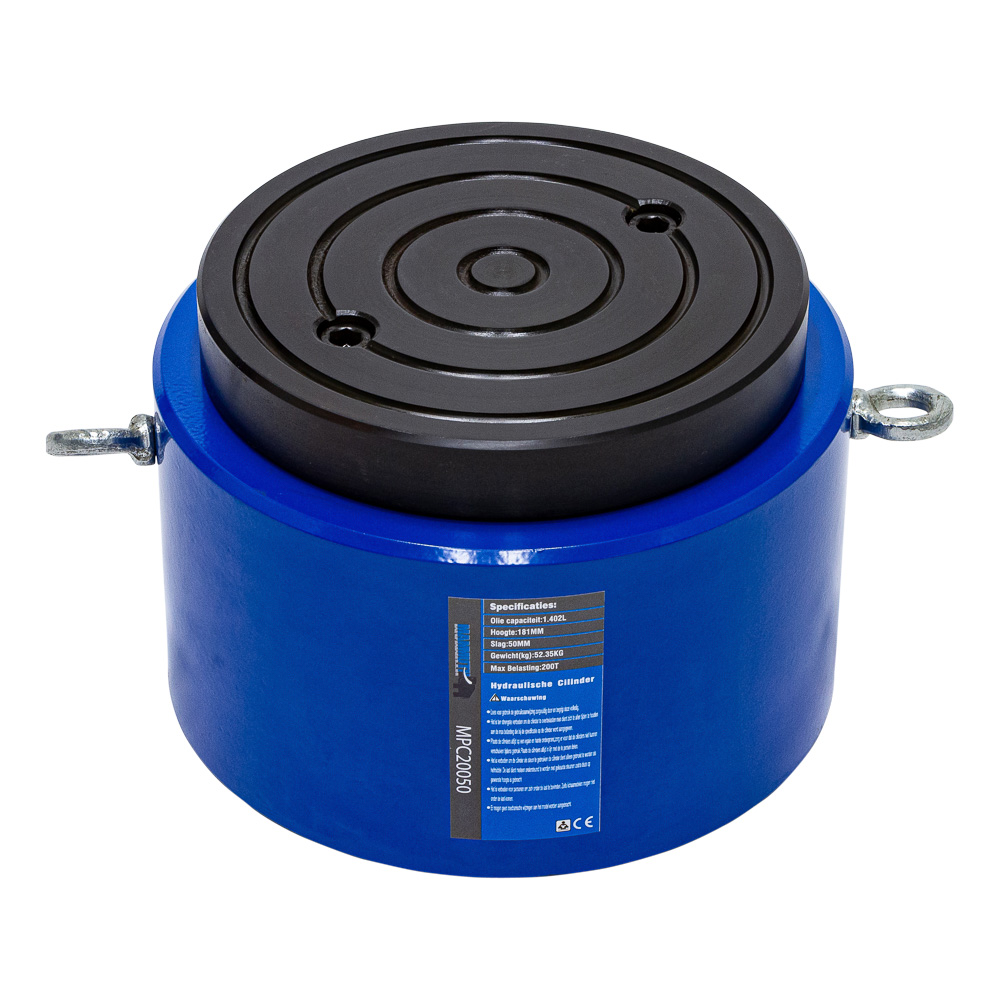

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 200 ton - stroke = 50mm - effective area = 280,4cm^2 - oil capacity = 1,402 L - height of product = 171mm - extended height = 231mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 25 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

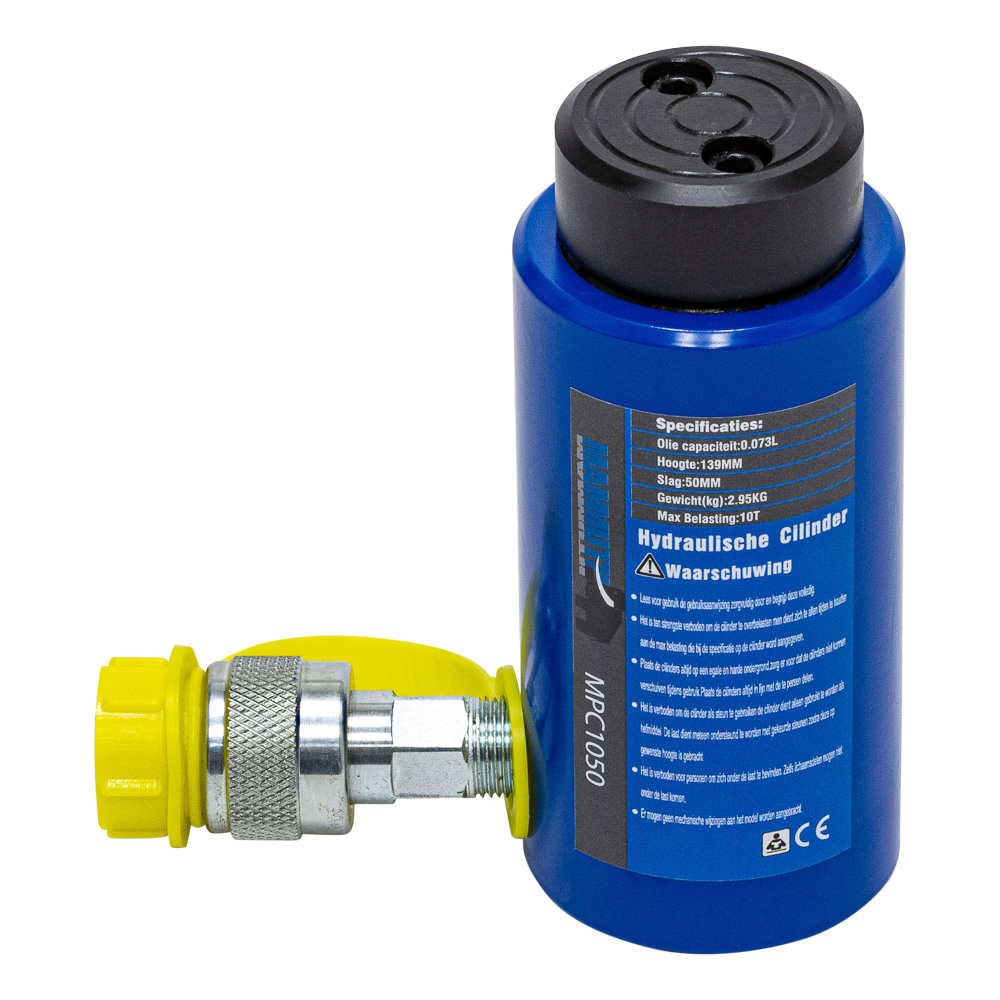

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.
output = 10 ton
stroke = 50mm
effective area = 15,2cm^2
oil capacity = 0,075 L
height of product = 139mm
extended height = 189mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar

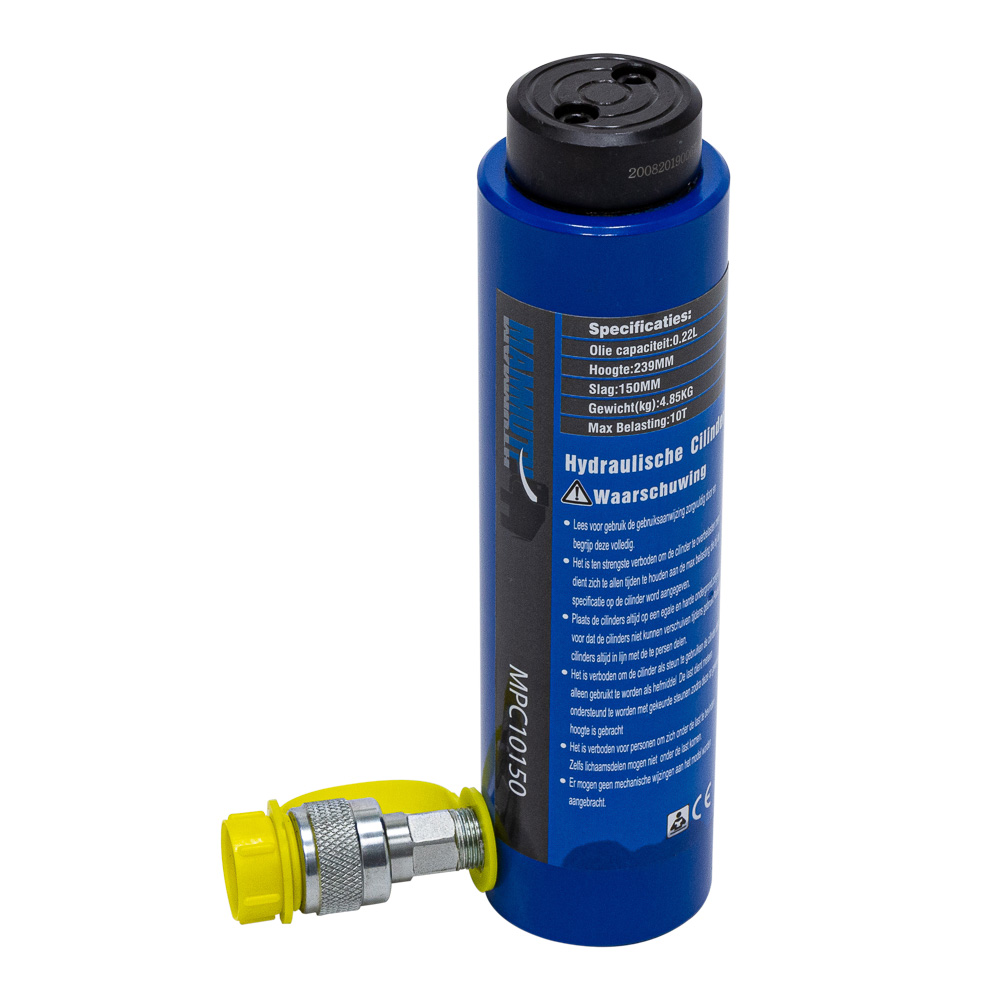

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 10 ton - stroke = 150mm - effective area = 15,2cm^2 - oil capacity = 0,228 L - height of product = 241mm - extended height = 389mm - outside diameter = 62mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 20 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar

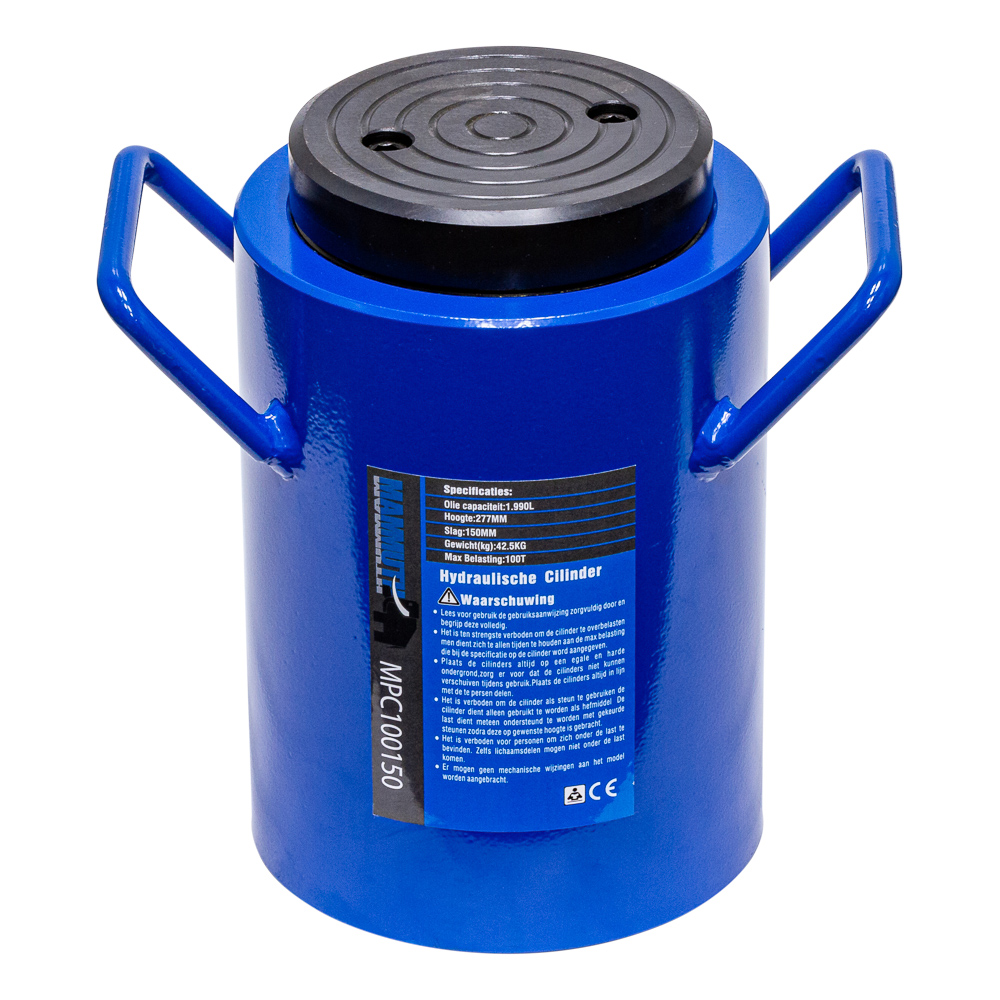

output = 100 ton
stroke = 150mm
effective area = 132,7cm^2
oil capacity = 1,990 L
height of product = 262mm
extended height = 427mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm

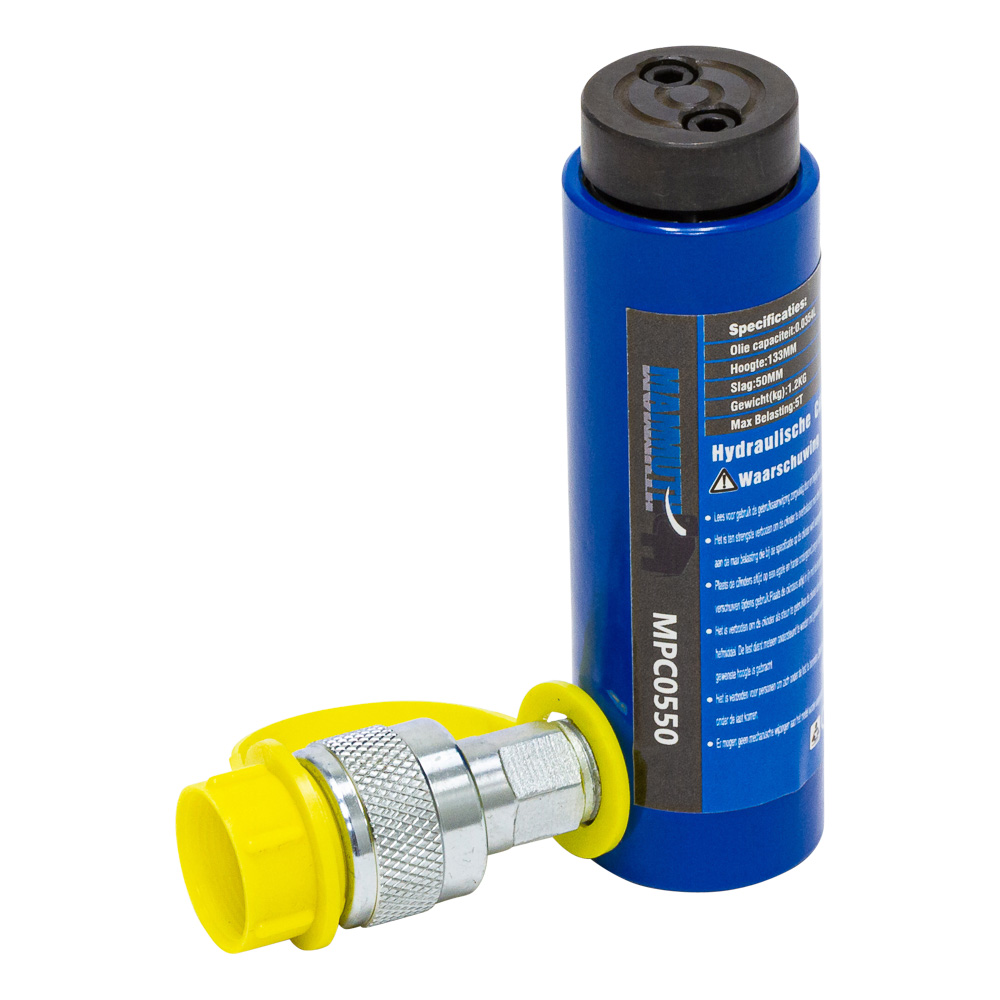

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 50mm - effective area = 9,6cm^2 - oil capacity = 0,036 L - height of product = 133mm - extended height = 183mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

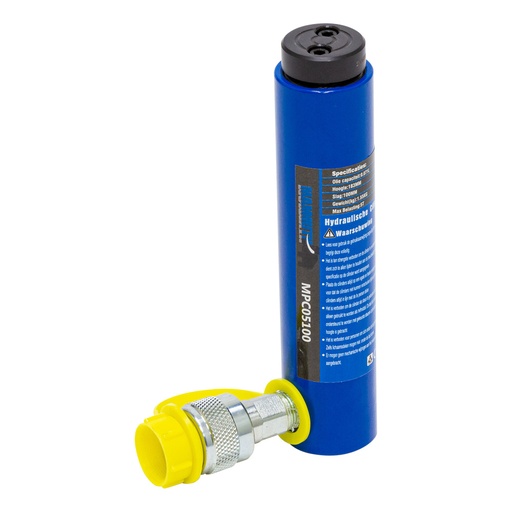

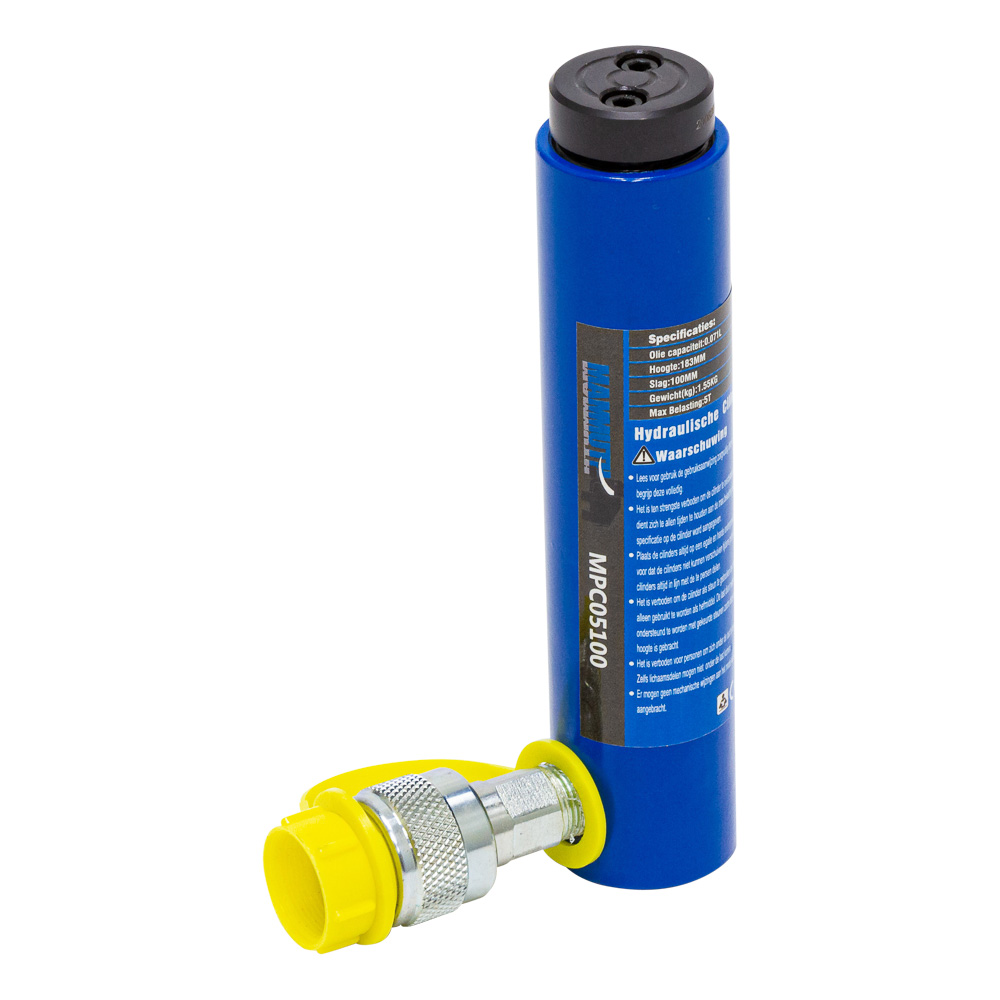

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 100mm - effective area = 9,6cm^2 - oil capacity = 0,071 L - height of product = 183mm - extended height = 283mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

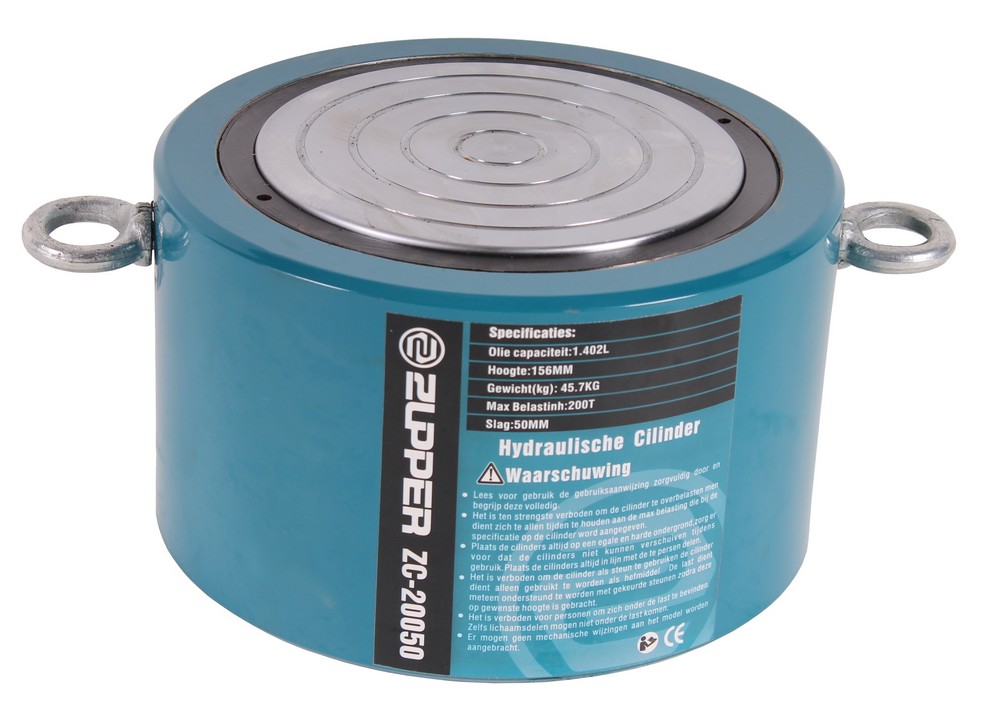

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 200 ton - stroke = 50mm - effective area = 224,2cm^2 - oil capacity = 1,402 L - height of product = 156mm - extended height = 206mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar

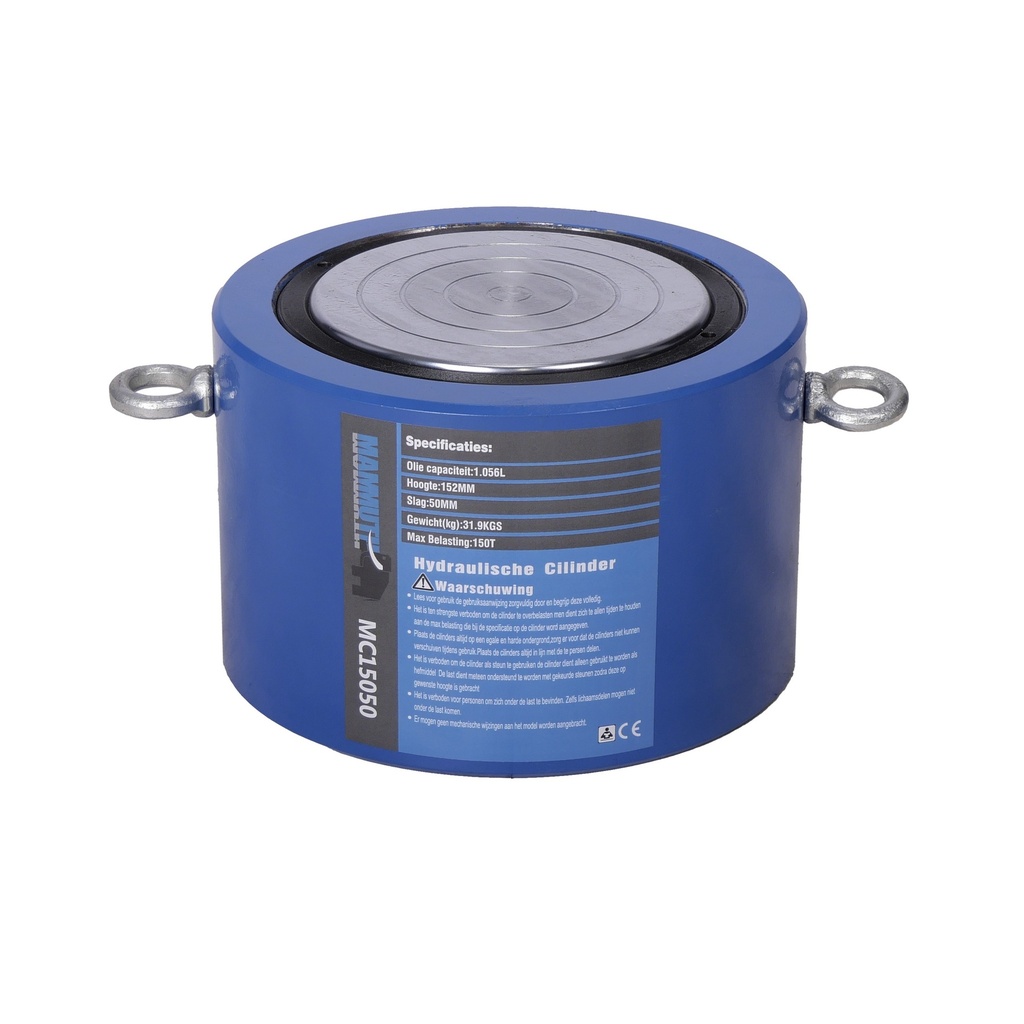

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.
output = 150 ton
effective area = 162,8cm^2
oil capacity = 1,056 L
height of product = 152mm
extended height = 202mm
outside diameter = 207mm
bore diameter = 164mm
plunger diameter = 144mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm

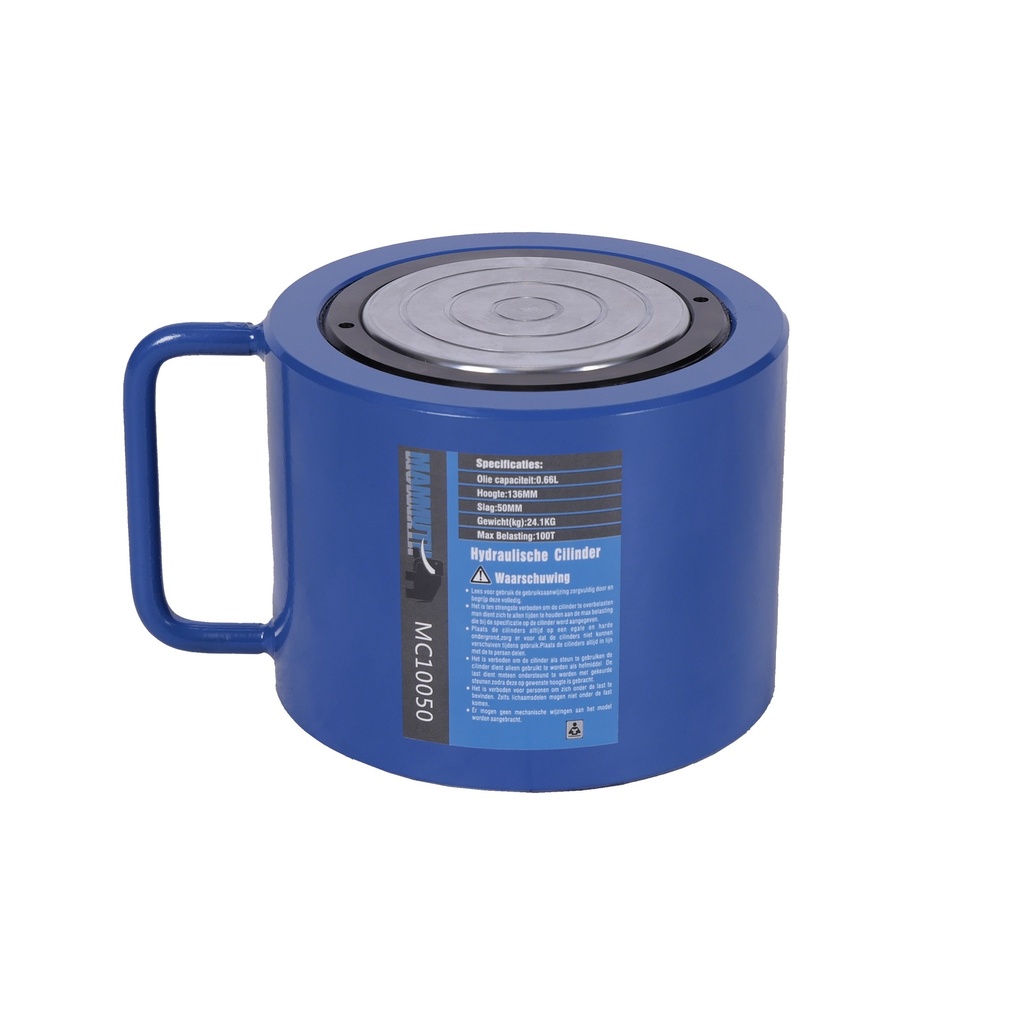

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the MFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.
effective area = 95cm^2
oil capacity = 0,66 L
height of product = 136mm
extended height = 186mm
bore diameter = 140mm

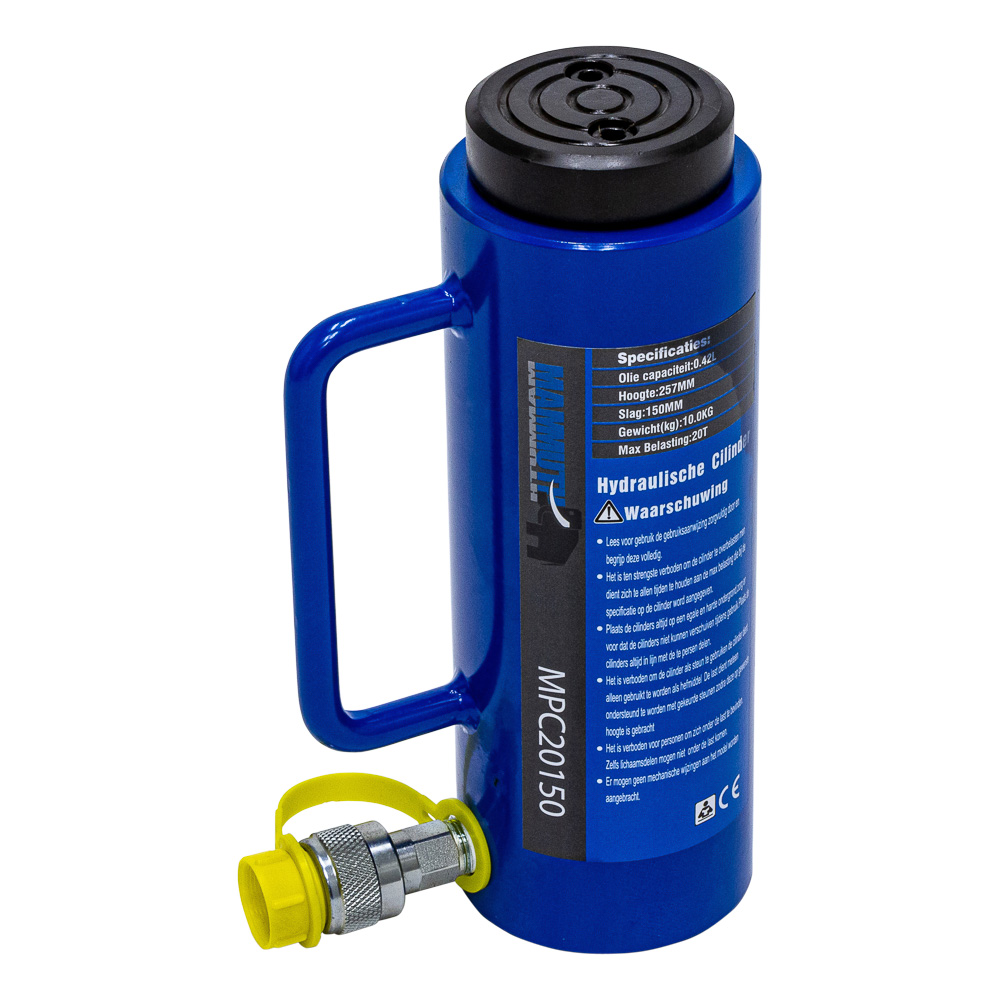

output = 20 ton
effective area = 33,2cm^2
oil capacity = 0,498 L
height of product = 254mm
extended height = 407mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 55mm
thread for input oil port (ZG) = 3/8" - 23

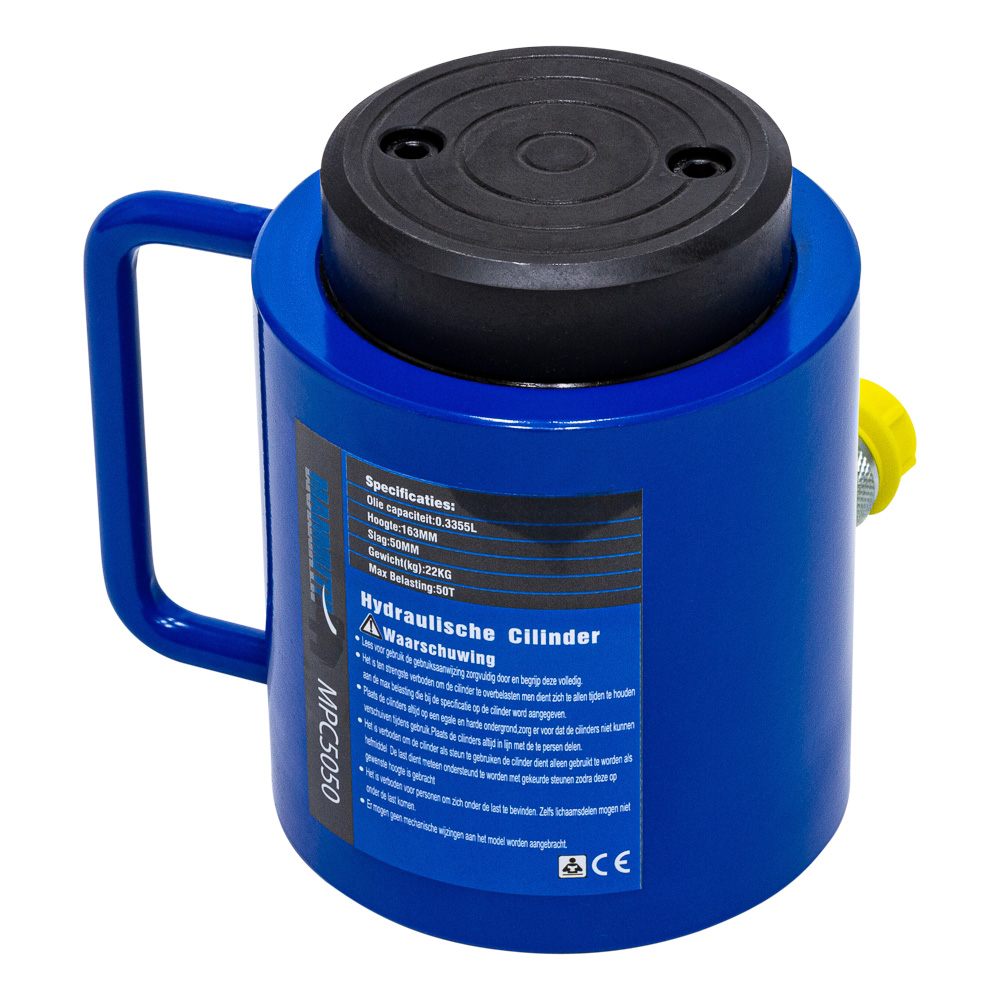

output = 50 ton
effective area = 70,9cm^2
oil capacity = 0,355 L
height of product = 162mm
extended height = 213mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm

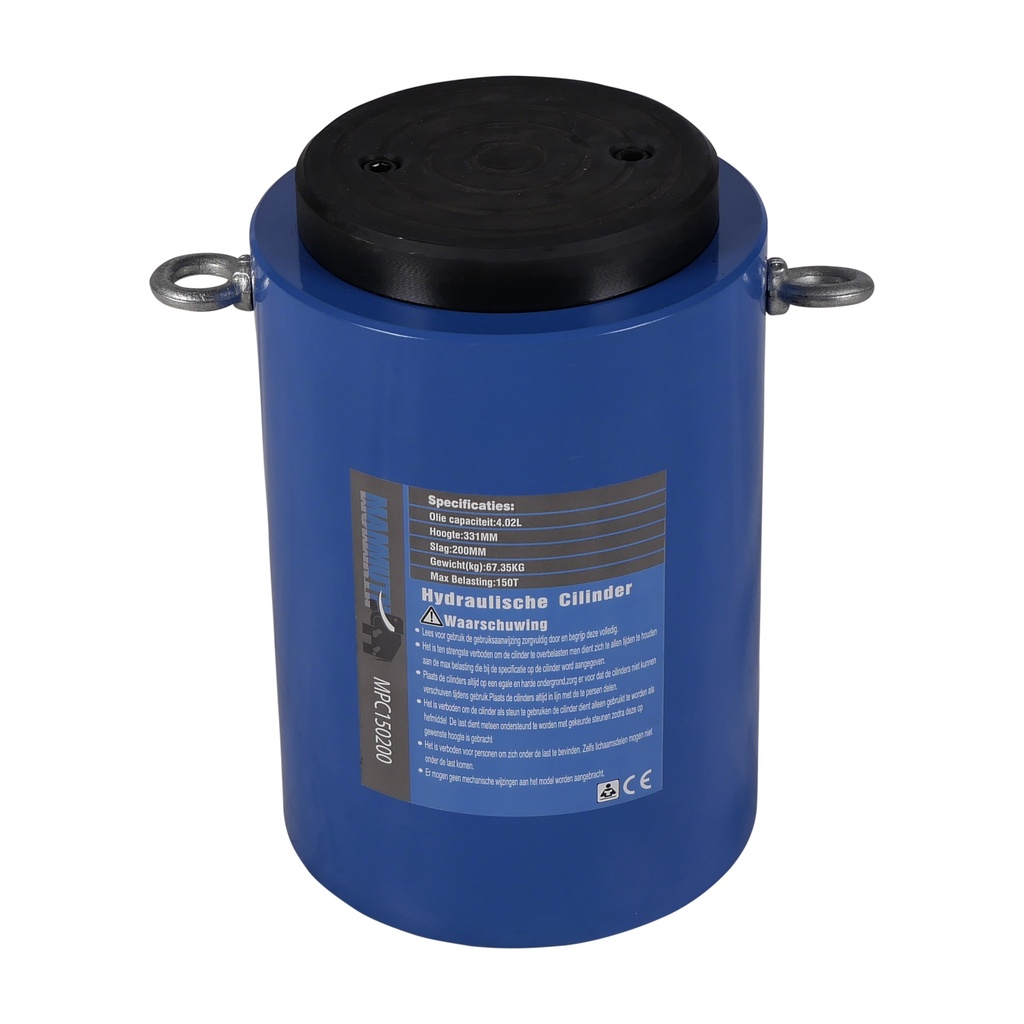

Technical specifications:
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
bore diameter = 160mm
plunger diameter = 140mm
saddle protrusion form plgr = 31mm

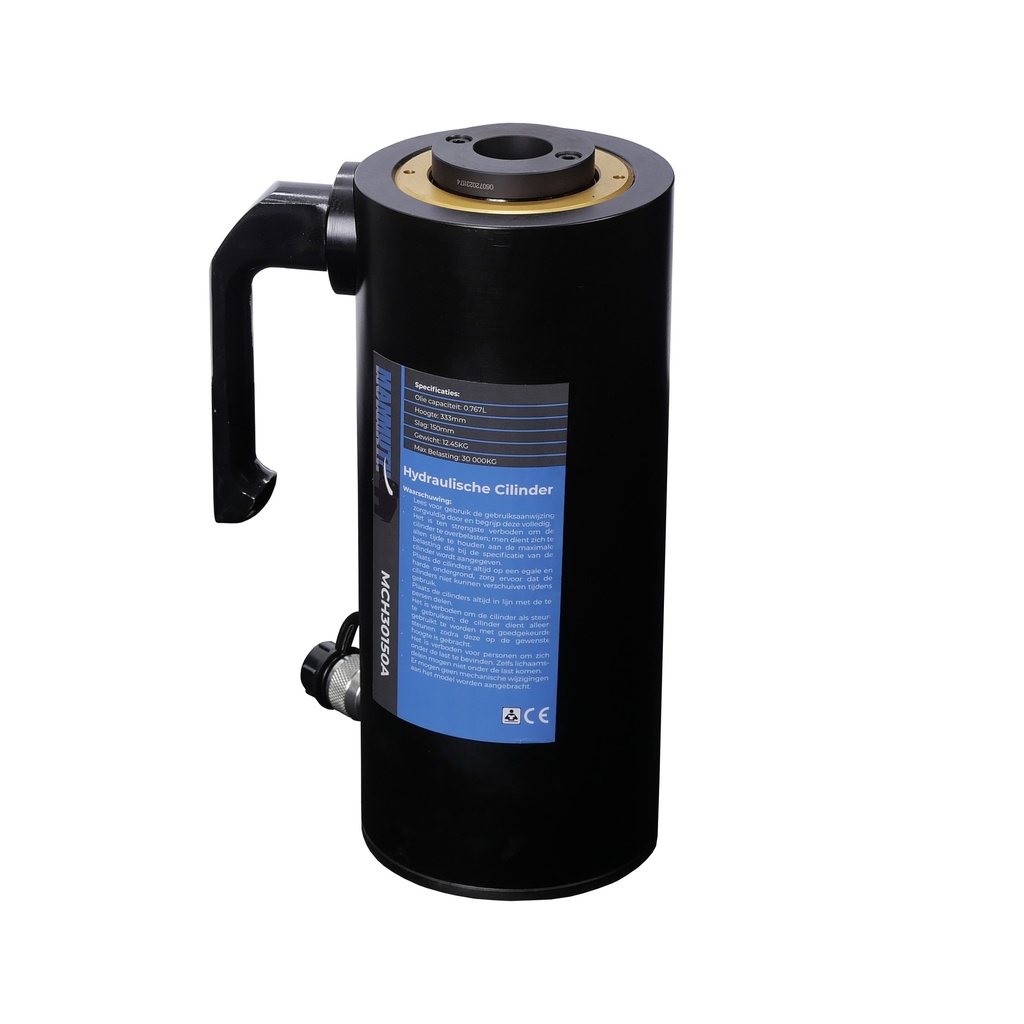

The Hydraulic Aluminum Cylinder 30 Ton by Mammuth stands out as the optimal choice when a lighter and more portable cylinder is required for various applications, including tensioning, testing, pulling, and lifting. Featuring a hollow plunger, this cylinder is rated for pressures of up to 700 bar.Designed as a single-acting cylinder, it utilizes a high-strength return spring to facilitate rapid retraction.The use of aluminum in construction not only contributes to the cylinder's lightweight design but also provides inherent resistance to corrosion compared to steel. This makes it an excellent choice for applications in corrosive environments. To further safeguard the cylinder and extend its lifespan, all surfaces are finished with a hard coat finish to resist damage.Cylinder includes handles for ease of use, and a floating center tube is incorporated to enhance seal life. The steel baseplate and saddle offer protection against load-induced damage. An integral stop ring prevents plunger over-travel and is robust enough to withstand the cylinder's full capacity. Additionally, a high-strength return spring ensures swift cylinder retraction.

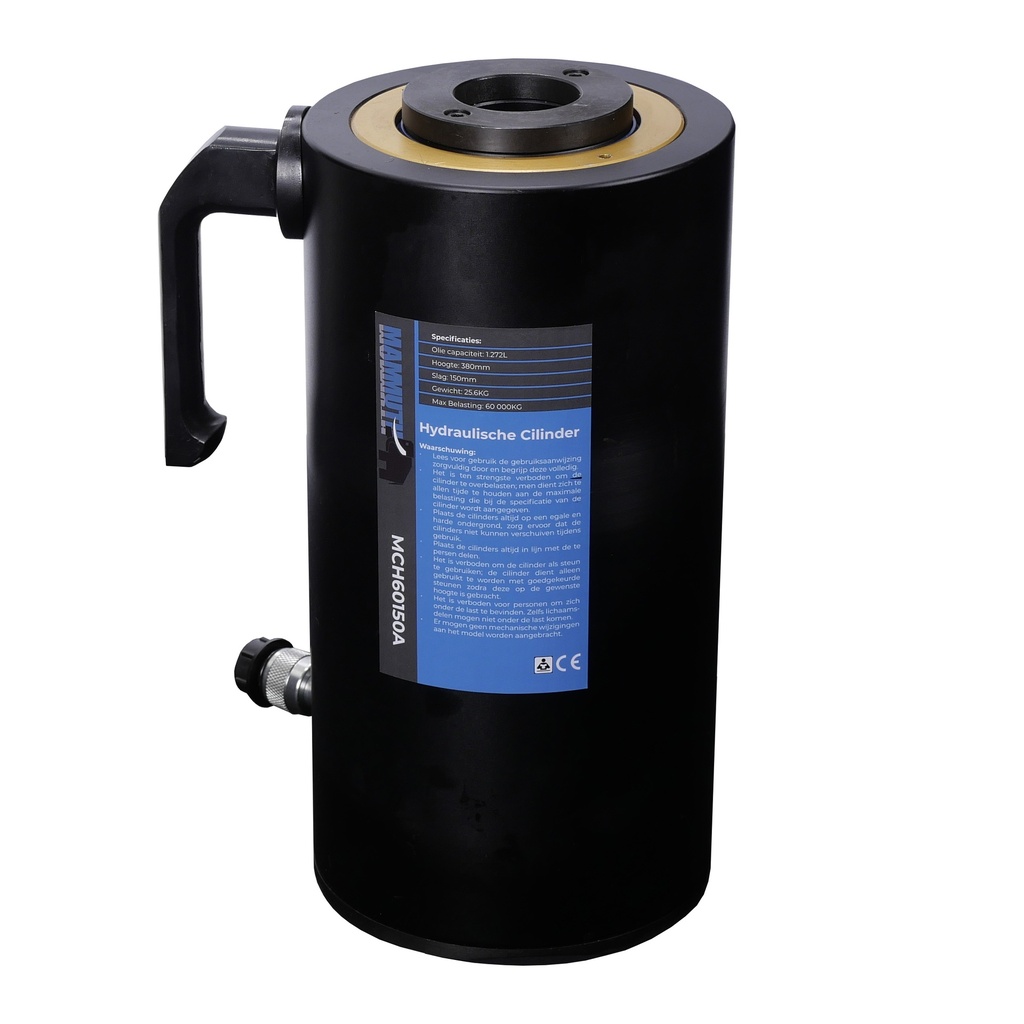

The Hydraulic Aluminum Cylinder 60 Ton by Mammuth stands out as the optimal choice when a lighter and more portable cylinder is required for various applications, including tensioning, testing, pulling, and lifting. Featuring a hollow plunger, this cylinder is rated for pressures of up to 700 bar.Designed as a single-acting cylinder, it utilizes a high-strength return spring to facilitate rapid retraction.The use of aluminum in construction not only contributes to the cylinder's lightweight design but also provides inherent resistance to corrosion compared to steel. This makes it an excellent choice for applications in corrosive environments. To further safeguard the cylinder and extend its lifespan, all surfaces are finished with a hard coat finish to resist damage.Cylinder includes handles for ease of use, and a floating center tube is incorporated to enhance seal life. The steel baseplate and saddle offer protection against load-induced damage. An integral stop ring prevents plunger over-travel and is robust enough to withstand the cylinder's full capacity. Additionally, a high-strength return spring ensures swift cylinder retraction.
