Beam clamp
This beam clamp is designed to make a safe connection from a beam to a for example chain hoist.
- capacity = 5 ton / 5000kg
- width = 80 - 320mm

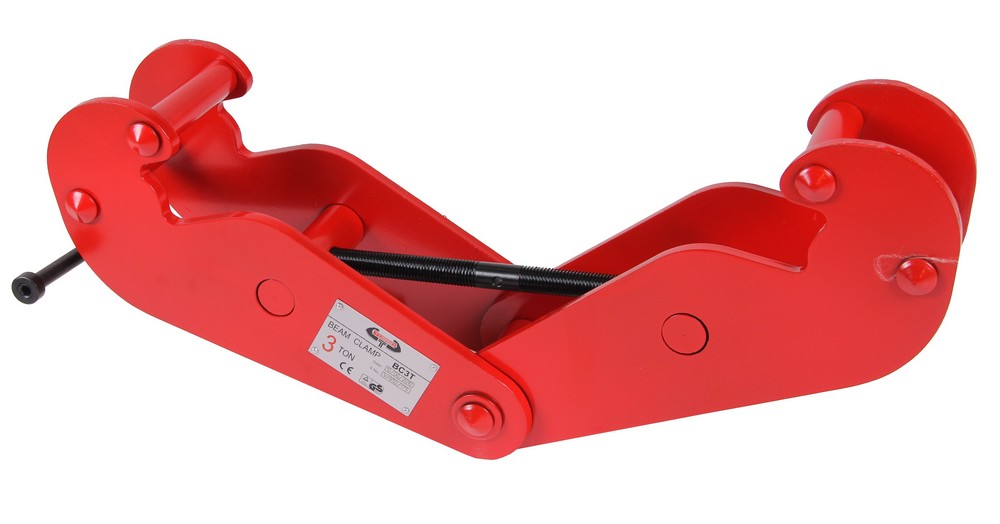

Dimensions corresponding to the image:
- max. A = 354mm
- min. / max. B = 235 / 490mm
- C = 110mm
- D = 10mm
- E = 260mm
- min. / max. F = 140 / 225mm
- G = 45mm
- H = 28mm
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 0.0 Kg |
| Package Dimensions: | |
| Package Length | 540 mm |
| Package Width | 140 mm |
| Package Height | 210 mm |
| Package Weight | 11.00 Kg |
