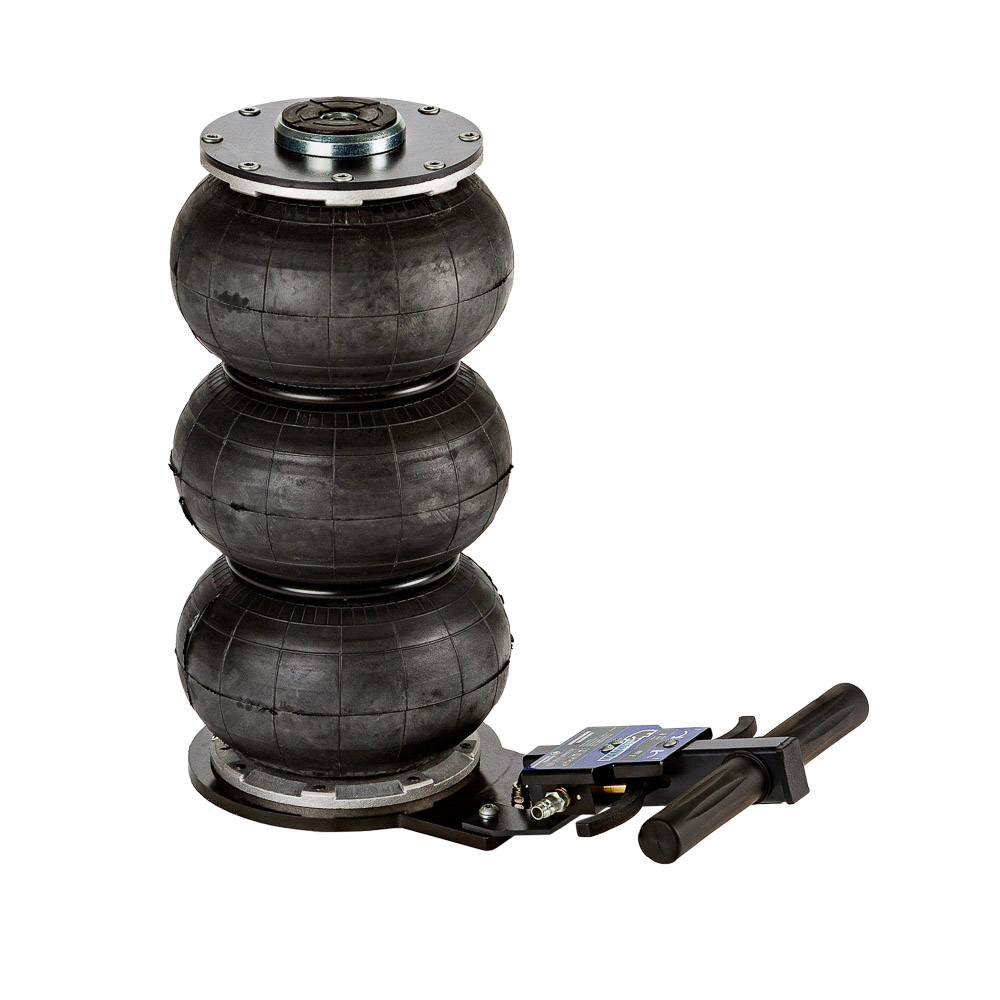

This series of Mammuth air bellow jacks are increasingly being used instead of the standard pneumatic jack. The air bellow jack lifts faster, is more manageable and is easy to store upright.
Thanks to its sophisticated design, this pneumatic balloon jack has te following useful features:
3 sturdy bellows with a wall thickness of 7 - 7,5mm
weighs only 16kg, but is still very solid
safety overload valve
guide ring in cylinder for smooth working and durability
ergonomic automatic switch, ensures safe and easy operation
space saving
ideal for the workplace, but also on the road
Specifications:
capacity = 2T
minimum lifting height = 200mm
maximum lifting height without adapter = 395mm
maximum lifting height with adapter = 555mm
lifting height = 295mm
adapter = 60mm
working pressure = 7 - 10 bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 1 200 mm |
| Largeur du produit | 225 mm |
| Hauteur du produit | 135 mm |
| Poids du produit | 16,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 515 mm |
| Largeur du paquet | 280 mm |
| Hauteur du paquet | 215 mm |
| Poids du Colis | 17,00 Kg |
