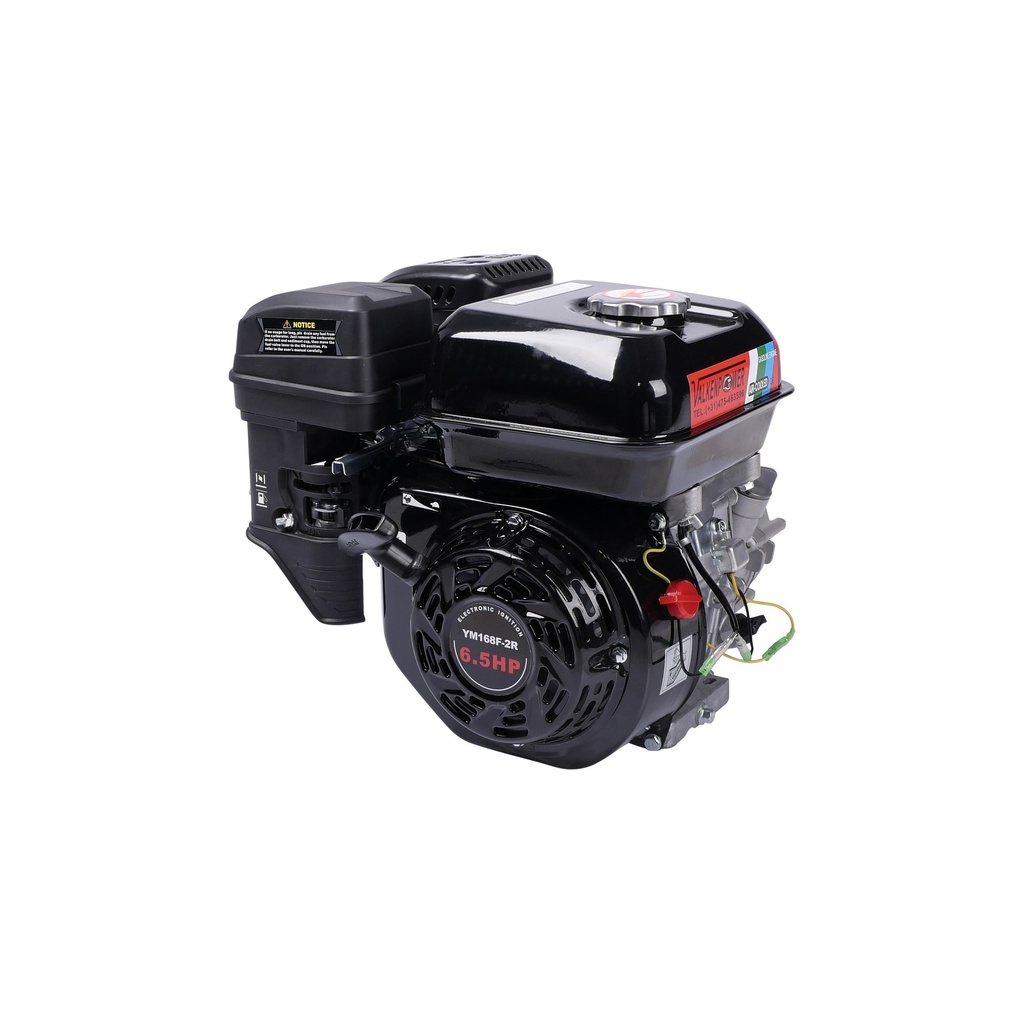

Gasoline engine hand start
This gasoline engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter.
Technical specifications:
type = 4-stroke / 1-cylinder
bore and stroke = 68 x 54mm
shaft size = 20mm
displacement = 196cm³
max. power = 4,0kW / 1800rpm
max. torque = 24Nm / 1250rpm
compression ratio = 8,5 : 1
oil capacity = 0,55L
tank capacity = 3,6L
air cooled
ignition = TCI
PTO rotation = left / anticlockwise
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 420 mm |
| Largeur du produit | 360 mm |
| Hauteur du produit | 335 mm |
| Poids du produit | 16,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 400 mm |
| Largeur du paquet | 400 mm |
| Hauteur du paquet | 345 mm |
| Poids du Colis | 21,50 Kg |
