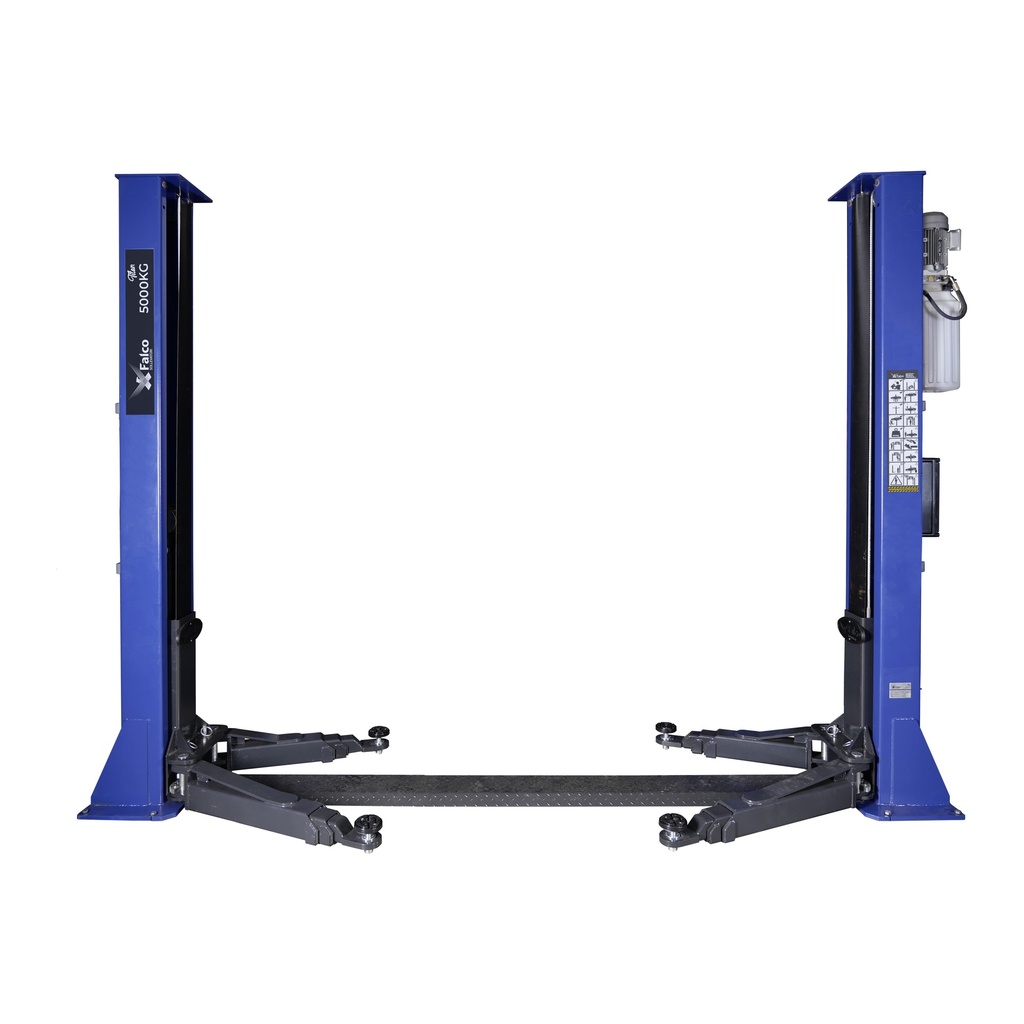

Two column lift bridge / two pile bridge / 2 column lift bridge
Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The Titan fully automatic model has a large range, is a very complete and reliable model, making the lift suitable for large vehicles in particular.
Features:
Large triple telescopic adjustable wishbones
Steel cable synchronization control (synchronization)
Quality hydraulic pump incl. cooling fins
24V control box
Transparent oil reservoir incl. oil level
Foot protection incl. acoustic safety signal
Exit when reaching highest position
Height adjustable carrying pads with double spindles
Automatic wishbone lock
Fully automatic electric detent
Protective cap inside column
Robust columns made of rolled steel
Protective rubbers door stop
Hydraulic cylinder on both sides
Dead mans operation when lifting and lowering
Automatic overload protection
Height Limit Switch
Fixing kit floor mounting
Set of 70mm height adapters (4 pieces)
All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 4 136 mm |
| Largeur du produit | 600 mm |
| Hauteur du produit | 2 930 mm |
| Poids du produit | 1 000,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 2 950 mm |
| Largeur du paquet | 630 mm |
| Hauteur du paquet | 1 100 mm |
| Poids du Colis | 1 050,00 Kg |
