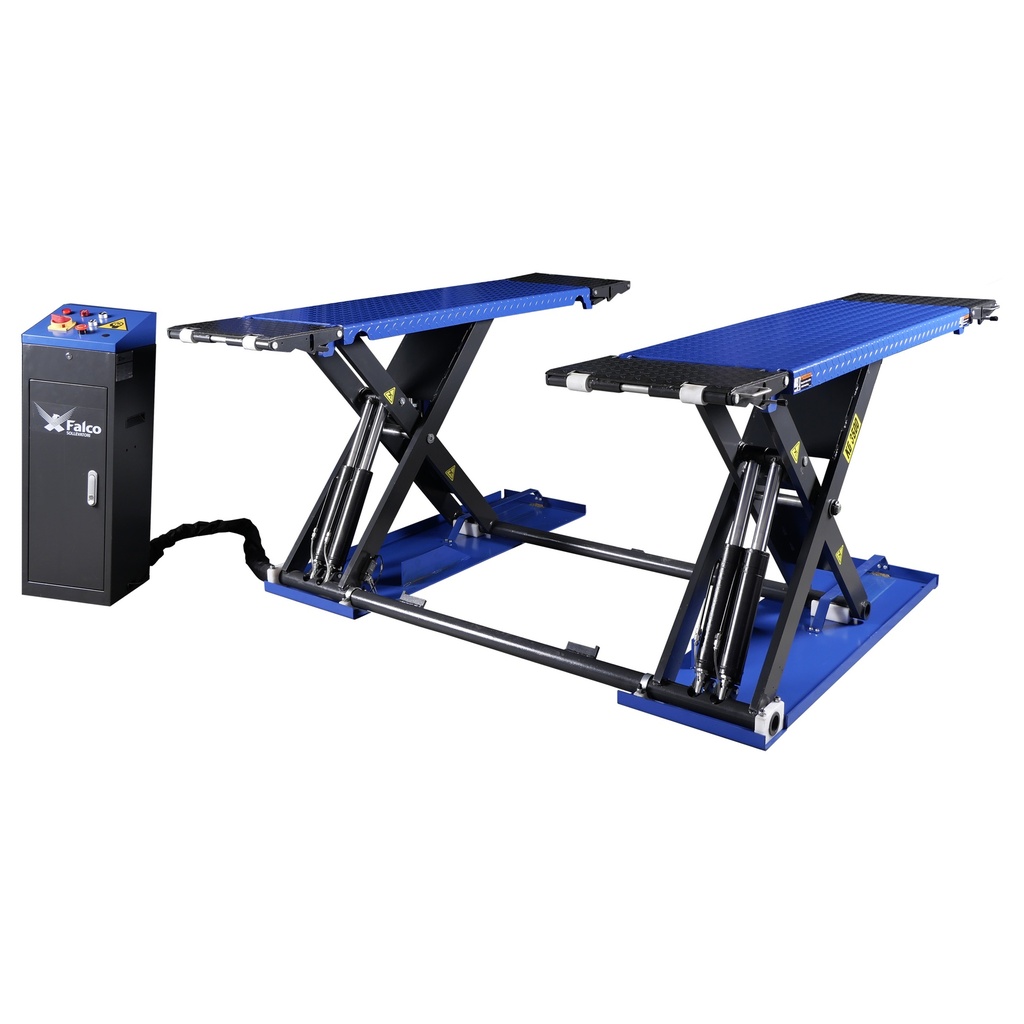

Car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge
Thanks to the well-considered design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. Thanks to the stable solid design, the lift is easy to place on a straight surface. Equipped with no less than four hydraulic cylinders (two per platform), this lift has a TwinX lifting system. As a result, the bridge is safe in every position and it does not have to be lowered before work can be carried out on the car. Also, there is no need to raise the bridge first to release it from the lock, making the bridge much more convenient to use and suitable for more applications than mechanically locked bridges. Each bridge is supplied as standard with a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop. The bridge is especially suitable for large vehicles.
Characteristics:
Total platform length of 2015mm
TwinX hydraulic system
Extra low ramp height of 105mm
Mobile tire
4 Powerful hydraulic cylinders
Foot protection incl. acoustic safety signal
Start lift
Adjustable ramp
Incl. wheel set and mounting blocks (40mm)
Complies with NEN-EN1493 safety standard
locking = automatic
Dimensions du produit : | |
---|---|
Longueur du produit | 2 010 mm |
Largeur du produit | 1 950 mm |
Hauteur du produit | 900 mm |
Poids du produit | 585,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 2 170 mm |
Largeur du paquet | 2 170 mm |
Hauteur du paquet | 1 270 mm |
Poids du Colis | 625,00 Kg |
Type d’offre: | |
20GP container | 18 Pcs |
40HQ | 37 Pcs |
