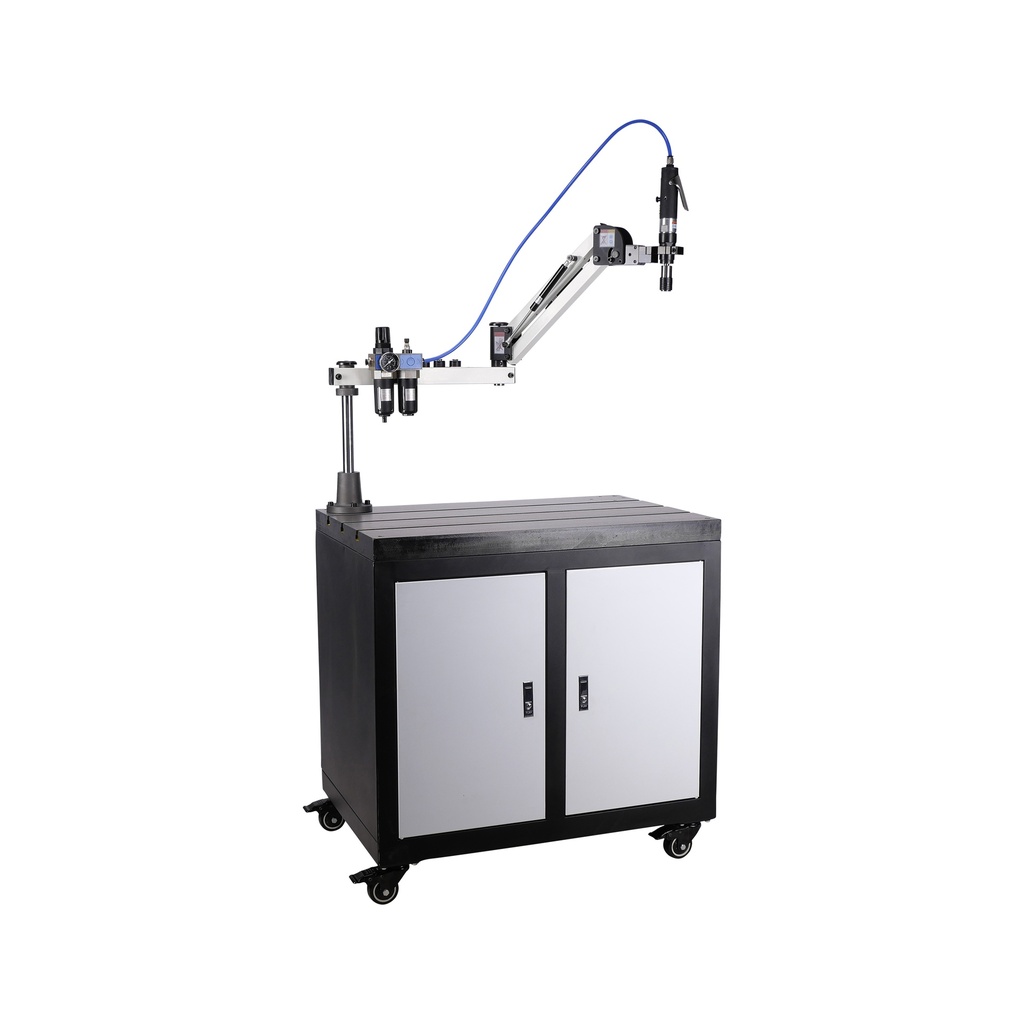

Pneumatic tapping machine / tapping arm on air
This Cowley pneumatic tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically.
The tapping machine also has the following features:
Wide tap range from M3 to M12
Weightless operation thanks to gas springs
Interchangeable tap heads with quick-release system
Variable and adjustable speed
Pressure regulator with gauge
Technical specifications:
working pressure = 6 to 8 bar
tap range = M3 to M12
max. speed = 400rpm
max. working radius = 1000mm
The machine comes standard with:
6x GT12 DIN tap holder with slip coupling (adjustable torque):
M3 (ø3,5mm / shank = 2,7mm)
M4 (ø4,5mm / shank = 3,4mm)
M5-6 (ø6.0mm / shank = 4.9mm)
M8 (ø8.0mm / shank = 6.2mm)
M10 (ø10.0mm / shank = 8.0mm)
M12 (ø9.0mm / shank = 7.0mm)
PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.
Dimensions du produit : | |
---|---|
Longueur du produit | 1 100 mm |
Largeur du produit | 230 mm |
Hauteur du produit | 100 mm |
Poids du produit | 14,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 680 mm |
Largeur du paquet | 275 mm |
Hauteur du paquet | 260 mm |
Poids du Colis | 19,40 Kg |
