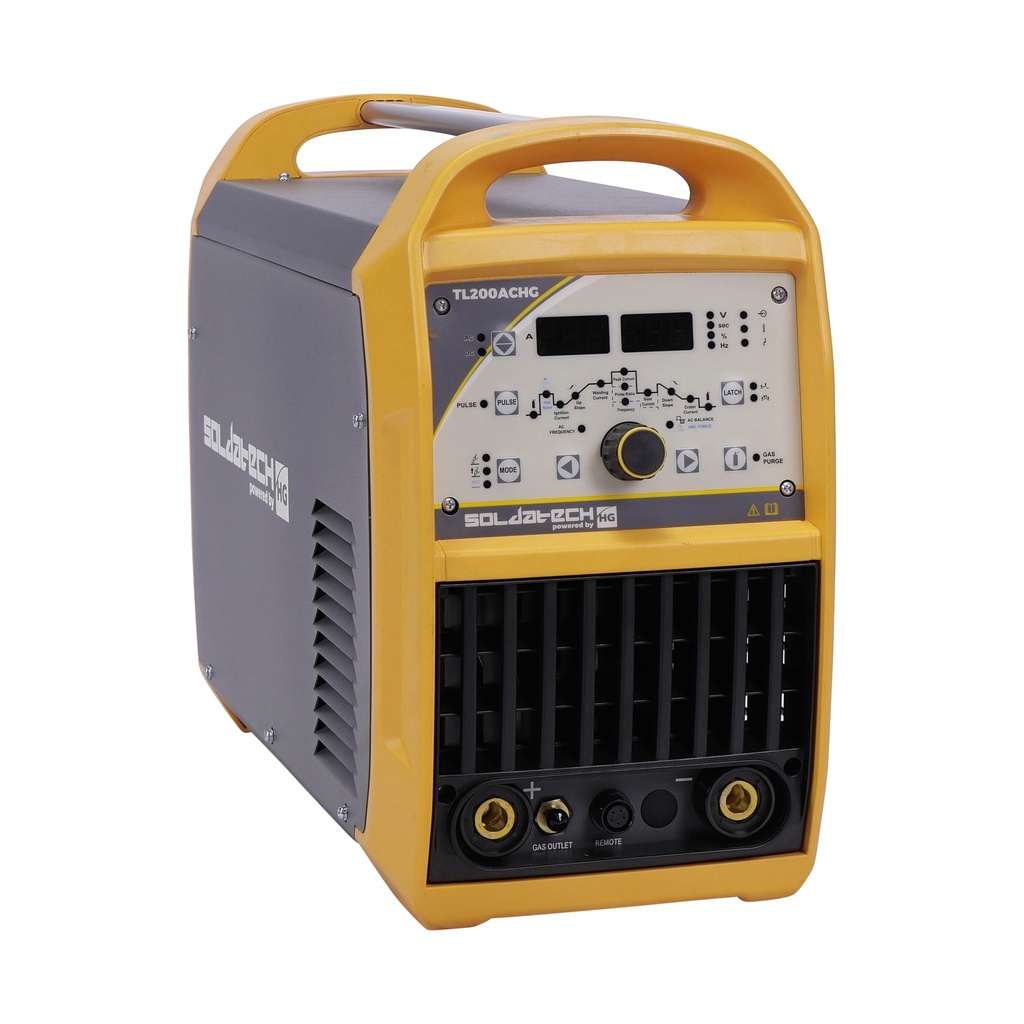

TIG AC / DC welding inverter 200A / IGBT TIG AC / DC inverter / welder / welding machine
This portable Soldatech powered by HG TIG welding machine is a convenient and easy to use device that is capable of handling a wide range of materials with different welding processes, including AC/DC Pulse, TIG and MMA welding. The adjustment and selection buttons allow for all parameters of the TL200ACHG to be easily set correctly, so that every welding job can be completed with high-quality results.
The modern IGBT inverter technology ensures that the TL200ACHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures high-quality welding performance over a long period of time.
The infinitely adjustable digital display shows the welding processes and options very clearly. The HF ignition ensures that the device starts up without any problems at all times.
The supplied TLT24M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding.
The hot-start/anti-stick function increases the welding current quickly, thereby preventing the electrode from sticking to the workpiece during ARC welding.
Ideal for welding aluminum stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.
Each TL200ACHG comes standard with:
Soldatech TLT26M4 remote flex TIG torch with 4m cable
Workpiece clamp with 3m 16mm² cable
Standard 13mm Dinse cable coupling
3m gas pipe, including hose clamps
3-pin 32A plug with 2m 3x4mm² cable
Technical specifications:
voltage = 230V
frequency = 50/60Hz
fuse protection = 16A C-kar
input power = 8.05kVA
protection class = IP21S
- no load voltage = 68V
- duty cycle (at 20°C ambient temperature) = 35% - 200A
- duty cycle (at 40°C ambient temperature) = 35% - 200A
- welding current range MMA = 5 - 170A
- welding current range DC TIG = 5 - 200A
- welding current range AC TIG = 10 - 200A
dimensions = 508 x 241 x 408mm
weight = 19.5kg
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 508 mm |
| Largeur du produit | 241 mm |
| Hauteur du produit | 408 mm |
| Poids du produit | 19,5 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 525 mm |
| Largeur du paquet | 305 mm |
| Hauteur du paquet | 420 mm |
| Poids du Colis | 21,50 Kg |
