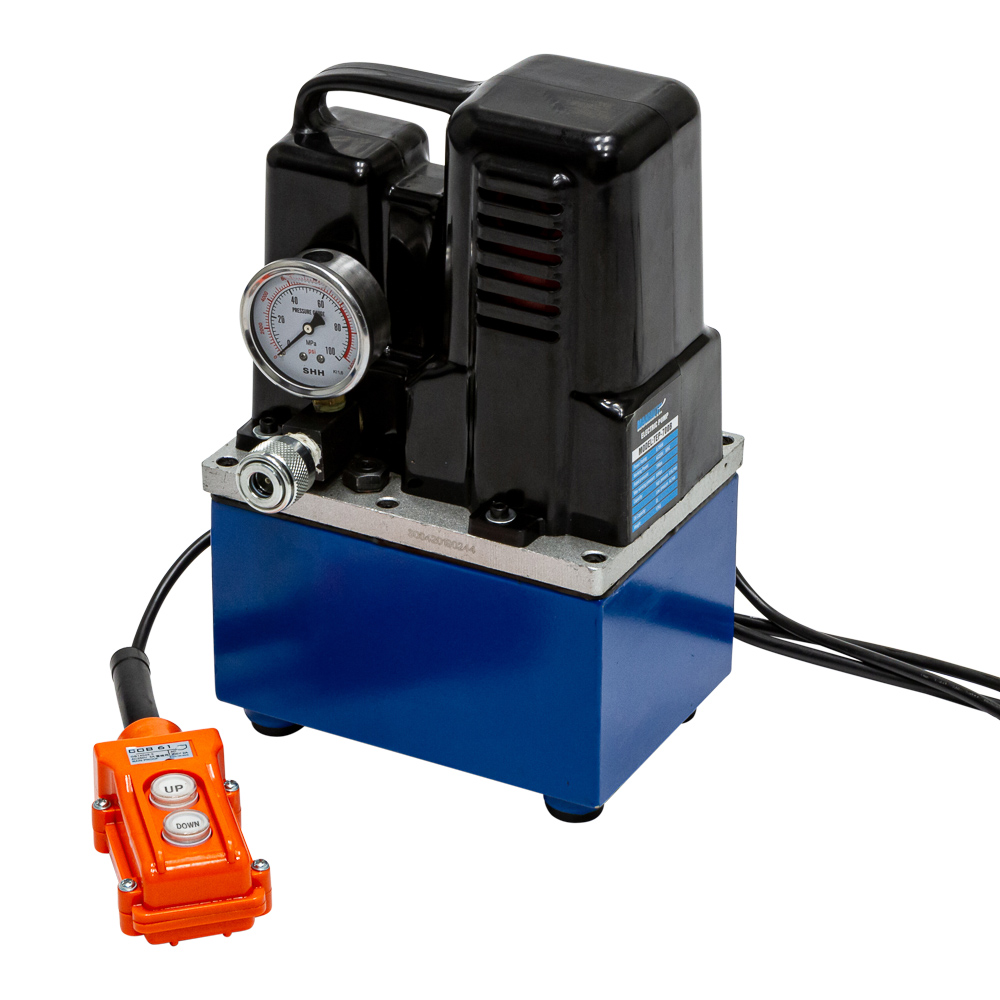

Electric hydraulic pump
Small volume pump with high-performance motor.
The speed and electric power are automatically adjusted during lifting.
Even under high pressure (32MPa), the pump starts easy.
Easy to take anywhere.
- voltage = AC220V 50Hz
- rated power = 0,75Kw
- low pressure = 2,5 Mpa / 25bar
- high pressure = 70Mpa / 700bar
- max. working pressure = 70Mpa / 700bar
- output low pressure = 4 L/min
- output hoge druk = 0,5 L/min
- oil capacity = 2 Ltr
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 180 mm |
| Largeur du produit | 205 mm |
| Hauteur du produit | 340 mm |
| Poids du produit | 13,35 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 265 mm |
| Largeur du paquet | 320 mm |
| Hauteur du paquet | 420 mm |
| Poids du Colis | 18,88 Kg |
