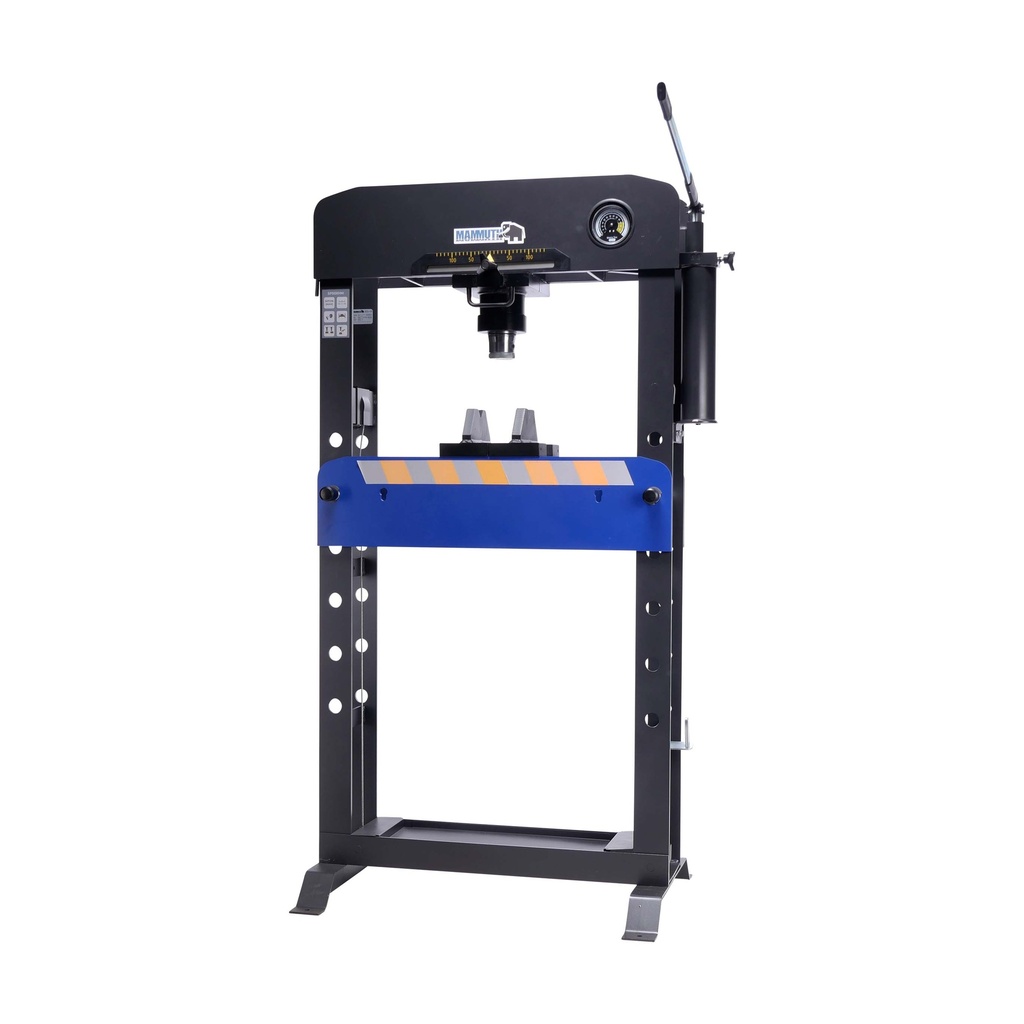

Press / Garage press / bearing press / workshop press
This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the integrated pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately. The work bed is easy to adjust in height using the winch.
The press comes standard with two multifunctional press blocks and storage space for tools.
Technical specifications
capacity = 50 tons
bed width = 750mm
bed depth = 200mm
minimum distance bed/cylinder = 120mm
cylinder stroke = 200mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 1 100 mm |
| Largeur du produit | 650 mm |
| Hauteur du produit | 1 850 mm |
| Poids du produit | 241,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 820 mm |
| Largeur du paquet | 1 100 mm |
| Hauteur du paquet | 405 mm |
| Poids du Colis | 255,00 Kg |
