Workshop press air hydraulic with foot pedal 30 tons

[SP30XHAM] Workshop press air hydraulic with foot pedal 30 tons

Équipement d'atelier / Presses hydrauliques / Presse d'atelier à main Marque : Mammuth Mammuth

Code produit : SP30XHAM

EAN : 8720028097807

Disponibilité : Disponible

https://www.valkenpower.com/web/image/product.template/61924/image_1920?unique=b8863f3

€ 880,00 880.0 EUR € 880,00

€ 880,00

Not Available For Sale

Cette combinaison n'existe pas.

Livraison rapide à partir d'un stock important.
Paiement sécurisé via différentes options de paiement.
politique de retour de 14 jours.

Press / Garage press / bearing press / workshop press

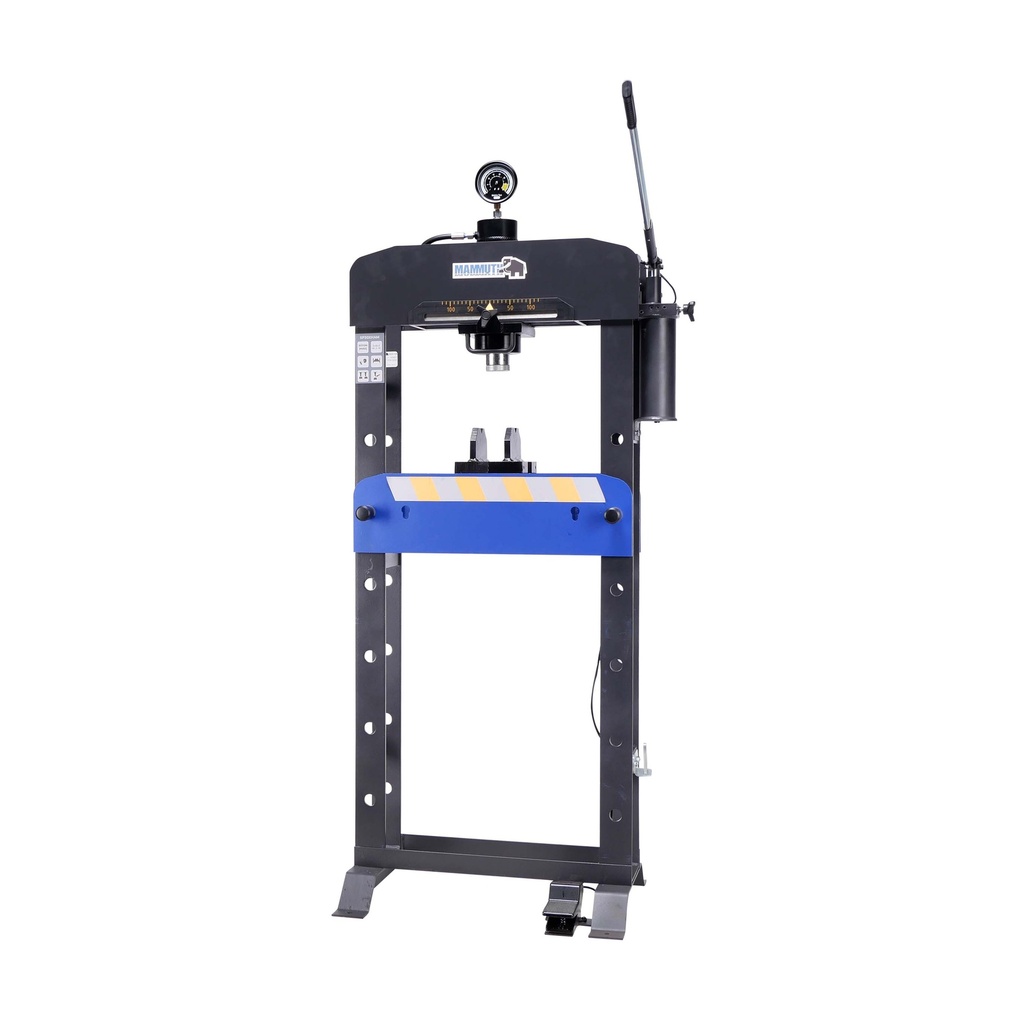

This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately. Thanks to the pneumatic pump system, the press can be operated with compressed air via the foot pedal or by hand.

The press is supplied as standard with two multifunctional press blocks.

Technical specifications

  • capacity = 30 tons

  • working air pressure = 0.9-1.2Mpa

  • bed width = 540mm

  • bed depth = 148mm

  • minimum distance bed/cylinder = 75mm

  • cylinder stroke = 180mm

Dimensions du produit :
Longueur du produit 840 mm
Largeur du produit 540 mm
Hauteur du produit 1 850 mm
Poids du produit 131,0 Kg
Dimensions de l'emballage :
Longueur du paquet 1 600 mm
Largeur du paquet 770 mm
Hauteur du paquet 330 mm
Poids du Colis 145,00 Kg

  • Multifunctional press blocks including V-block

  • Interchangeable recording cap

  • Hydraulic two-stage pump

  • Adjustable cylinder + scaling
