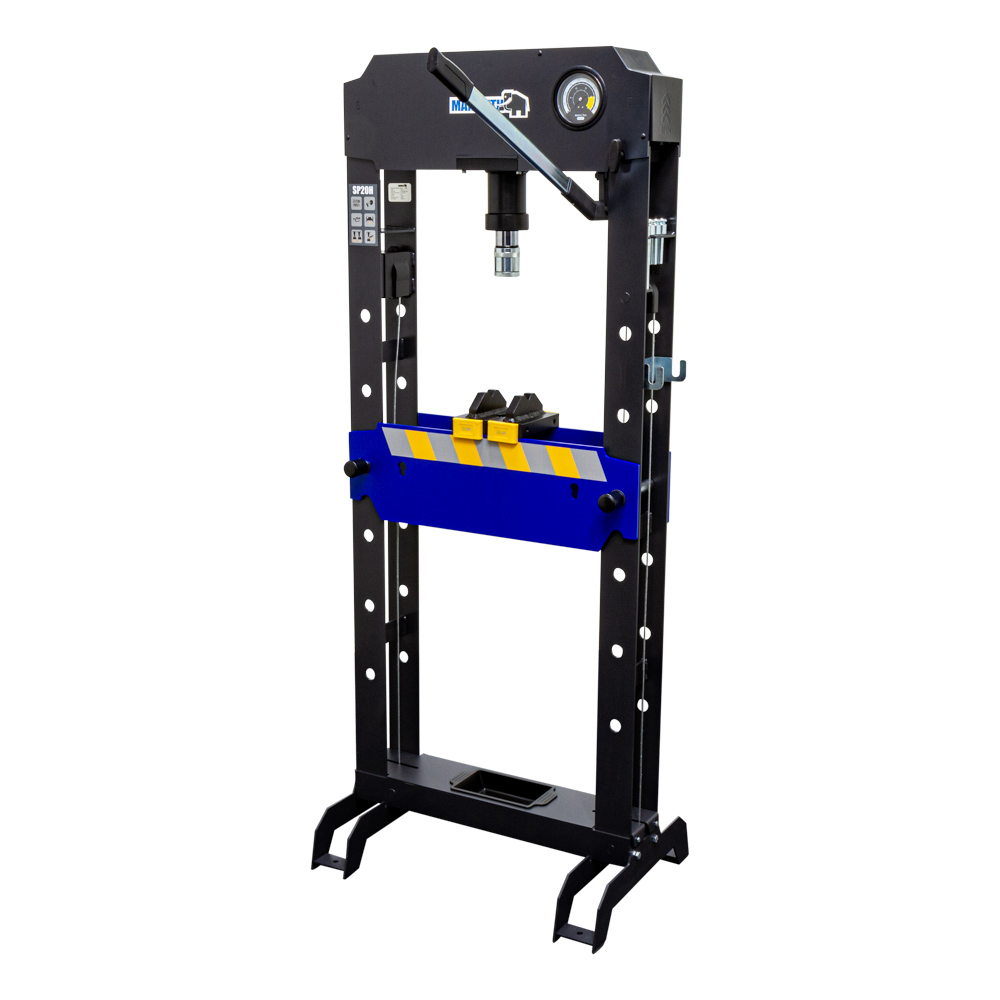

Garagepress / bearing press / frame press
This Mammuth hydraulic press is suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires power. The press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump, which has two speeds. The hydraulic cylinder is equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.
Comes standard with a hydraulic hand pump, 2 heavy press blocks, 8 press pins, a parts tray and hydraulic oil CH22.
Specifications:
capacity = 20 ton
cylinder stroke = 220mm
bed width = 540mm
bed depth = 165mm
working range = 850mm
screw thread length = 75mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 0 mm |
| Largeur du produit | 0 mm |
| Hauteur du produit | 0 mm |
| Poids du produit | 122,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 750 mm |
| Largeur du paquet | 780 mm |
| Hauteur du paquet | 230 mm |
| Poids du Colis | 147,00 Kg |
| Type d’offre: | |
| 1 Pcs |
