Garage press / bearing press / frame press

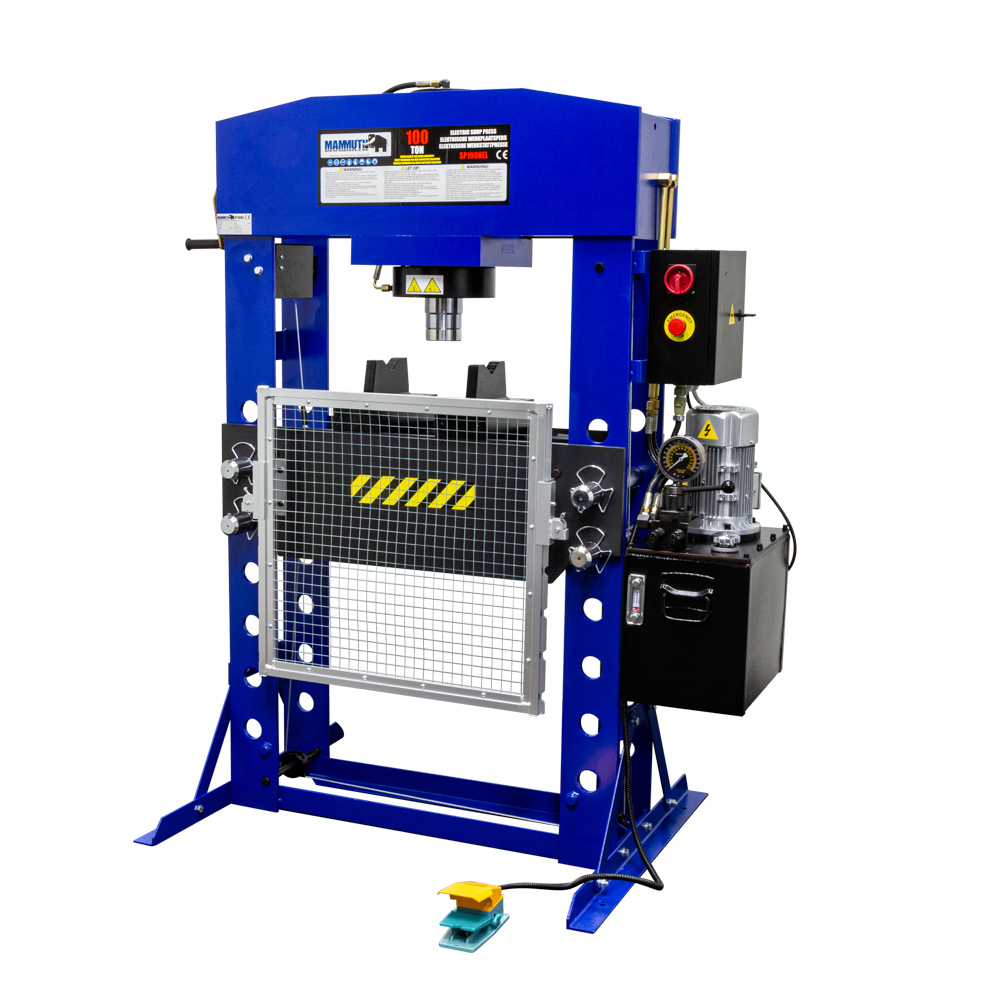

This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
The work bed is easy to adjust in height using the winch and handle. The cylinder can also be slid from left to right using the same handle.
The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.
Please note: the press is supplied without CH22 hydraulic oil (29 liters).
Specifications:
capacity = 100 ton
cylinder stroke = 300mm
bed width = 800mm
bed depth = 342mm
working range = 945mm
power = 1,5kW
voltage = 400V
speed = 1400rpm
outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec
incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec
Packed in 2 boxes:
115 x 42 x 216cm 735kg
52,5 x 36,5 x 79cm 85kg
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 1 199 mm |
| Largeur du produit | 990 mm |
| Hauteur du produit | 1 900 mm |
| Poids du produit | 755,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 000 mm |
| Largeur du paquet | 2 110 mm |
| Hauteur du paquet | 1 220 mm |
| Poids du Colis | 823,00 Kg |
