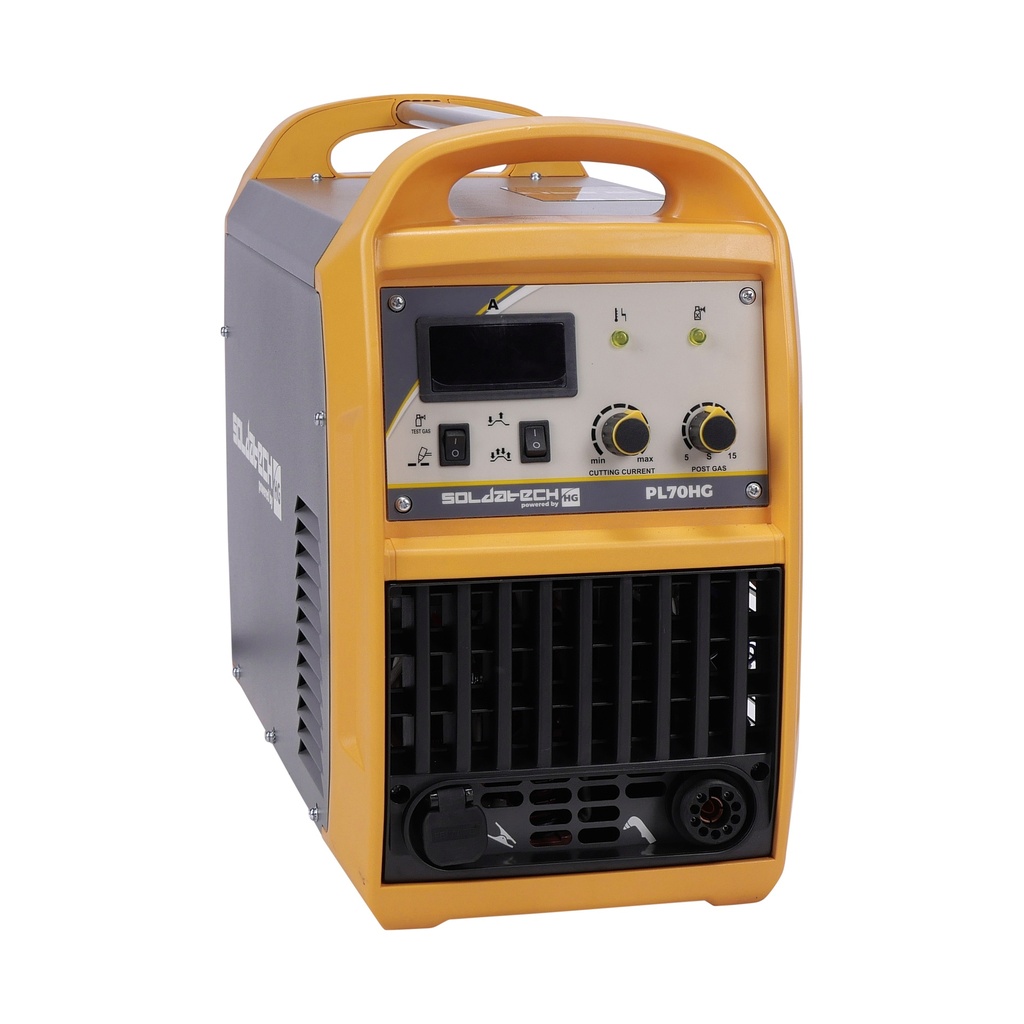

Plasma cutter / plasma cutting machine
This Soldatech powered by HG plasma
cutter cuts various materials with high-quality results. The PL70HG is a
compact, powerful and easy to use plasma cutter that is equipped with Pilot ARC
ignition. This in combination with the HF ignition makes this cutter very easy
to ignite and it is capable of cutting smoothly through rusted, coated or
structured material up to 25mm.
The PL70HG has a user-friendly control panel and can even be adjusted during
cutting work to achieve the best cutting result.
The modern IGBT inverter technology not only
ensures that the PL70HG delivers long-lasting performance with more power, but
it also makes the welder lightweight and portable. Overload protection in
combination with a built-in fan prevents overheating and ensures that
high-quality welding performance is guaranteed for a long time.
Ideal for cutting low alloy steel, stainless steel and aluminum alloys.
Each PL70HG comes standard with:
Soldatech PL80M5 plasma torch with 5m cable
Workpiece clamp with 2m 16mm² cable
Gas pipe of 4m with hose clamps
5-pin 32A plug with 2.5m 4x2.5mm² cable
Standard 9mm Dinse cable couplings
Technical specifications:
voltage = 400V
frequency = 50/60Hz
fuse protection = 3x 16A C-kar
input power = 9.4kVA
duty cycle = 60% - 70A / 100% - 54A (at 40 degrees ambient temperature)
welding current range = 25 - 70A
max. unloaded voltage = 330V
recommended cutting thickness = 17mm
max. cutting thickness = 25mm
average air / gas consumption = 220L/min
protection class = IP21S
dimensions = 550 x 245 x 405mm
weight = 22.7kg
Dimensions du produit : | |
---|---|
Longueur du produit | 550 mm |
Largeur du produit | 245 mm |
Hauteur du produit | 405 mm |
Poids du produit | 23,5 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 700 mm |
Largeur du paquet | 335 mm |
Hauteur du paquet | 460 mm |
Poids du Colis | 28,80 Kg |
