Plasma cutter / plasma cutting machine

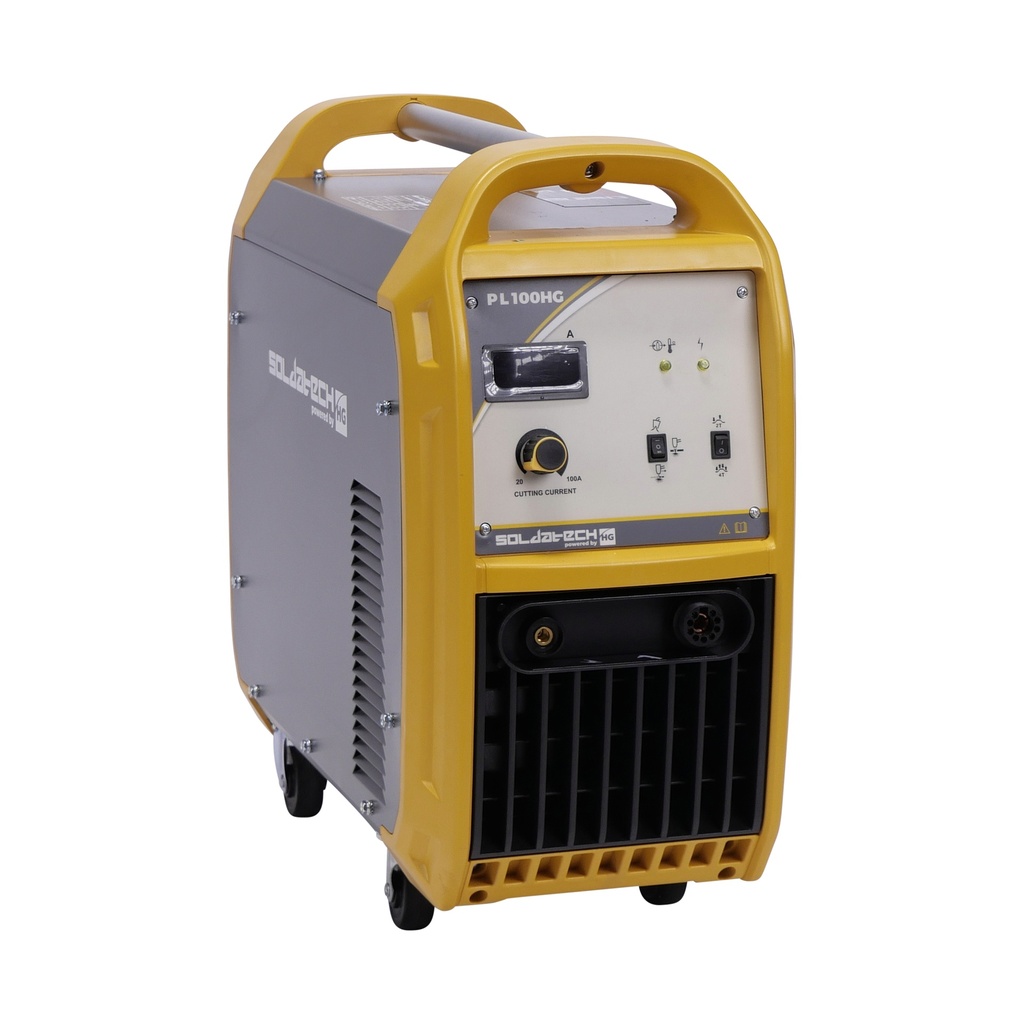

This Soldatech powered by HG plasma cutter cuts steel and aluminum with high-quality results. The PL100HG is among the heavier plasma cutters, it ignites very easily thanks to the HF ignition and cuts easily through rusted, coated or structured material up to 35mm. The plasma cutter has four swivel castors, making it mobile during use.
The PL100HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.
The modern IGBT inverter technology ensures that the PL100HG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality cutting performance is guaranteed over a long period of time.
Ideal for cutting carbon steel, low alloy steel, stainless steel and aluminum alloys.
Each PL100HG comes standard with:
Soldatech PL141M3 plasma torch with 5m cable
Work clamp with 3m 16mm² cable
Gas line of 4m with quick coupling
5-pin 32A plug with 3m 4x2.5mm² cable
Standard 9mm Dinse cable couplings
Technical specifications:
voltage = 400V - 3 phase
frequency = 50/60Hz
circuit breaker = 3x 20A B-char
duty cycle (at 20°C ambient temperature) = 60% - 100A
duty cycle (at 40°C ambient temperature) = 60% - 100A
welding current range = 20 - 100A
max. unloaded voltage = 325V
max. cutting thickness = 35mm
average air / gas consumption = 220L/min
protection class = IP21S
dimensions = 719 x 308 x 633mm
weight = 43kg
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 719 mm |
| Largeur du produit | 308 mm |
| Hauteur du produit | 633 mm |
| Poids du produit | 43,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 765 mm |
| Largeur du paquet | 405 mm |
| Hauteur du paquet | 805 mm |
| Poids du Colis | 52,00 Kg |
