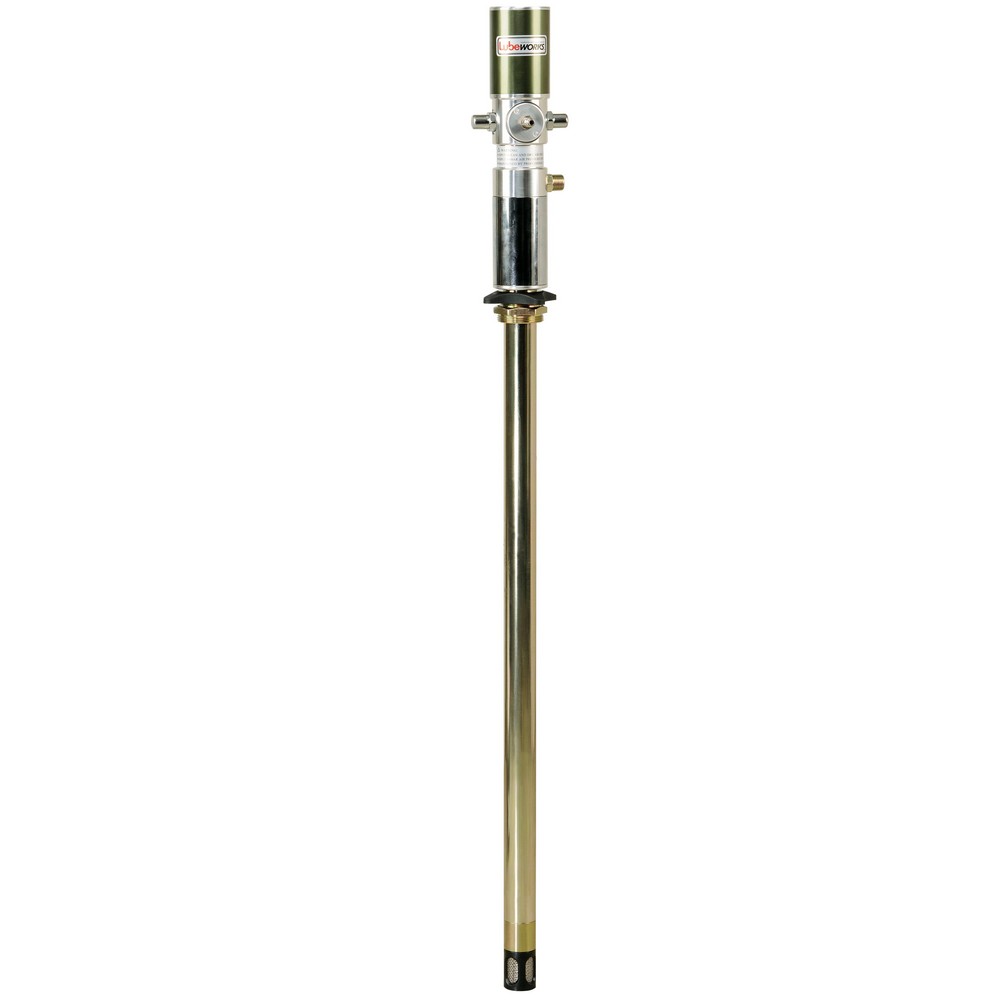

Air operated oil pump
The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor.
- drum application = 180 - 220kgs
- pressure ratio = 1:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 100 L/min
- max. free flow rate = 18 L/min
- suction tube diameter = 42mm
- suction tube length = 940mm
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/2''
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 1 300 mm |
| Largeur du produit | 130 mm |
| Hauteur du produit | 130 mm |
| Poids du produit | 5,9 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 136 mm |
| Largeur du paquet | 135 mm |
| Hauteur du paquet | 135 mm |
| Poids du Colis | 6,60 Kg |
| Type d’offre: | |
| 1 Pcs |
