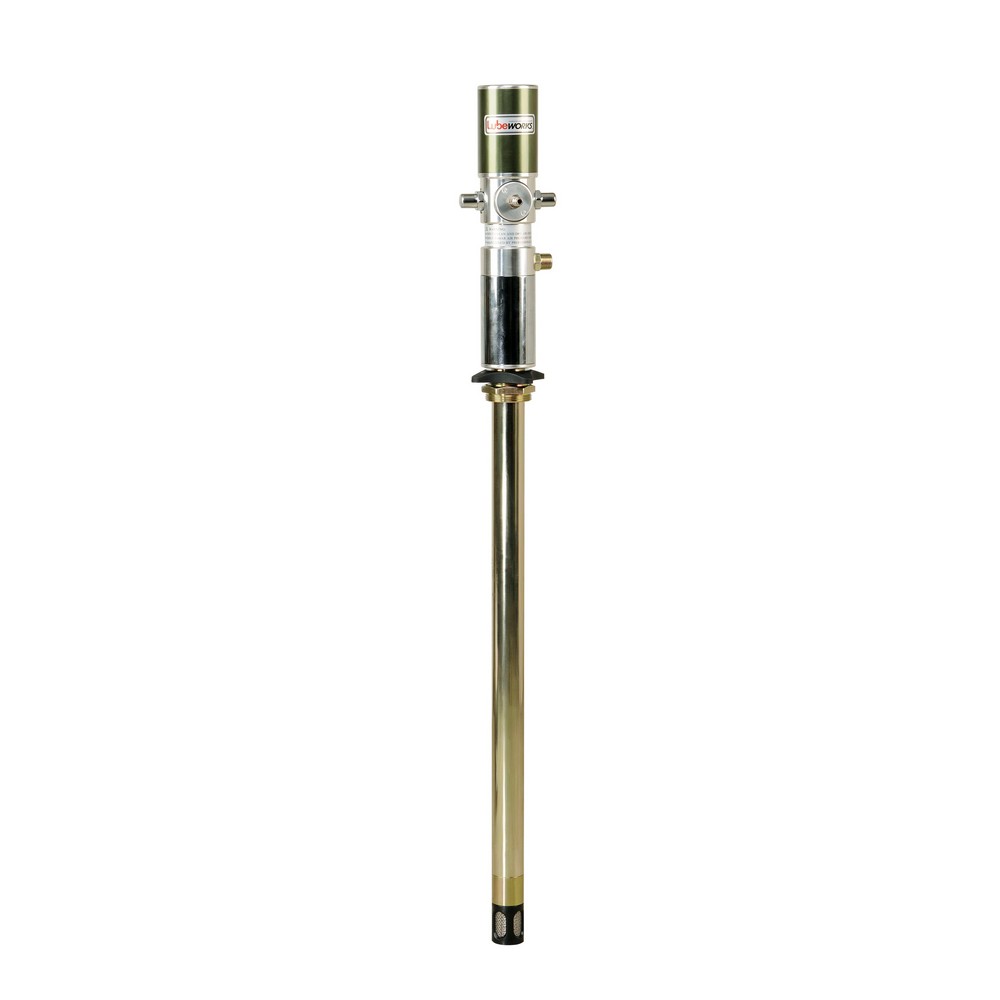

Air operated oil pump
The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor.
- drum application = 50 - 60kgs
- pressure ratio = 1:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 100 L/min
- max. free flow rate = 18 L/min
- suction tube diameter = 42mm
- suction tube length = 730mm
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/2''
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 0 mm |
| Largeur du produit | 0 mm |
| Hauteur du produit | 0 mm |
| Poids du produit | 0,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 350 mm |
| Largeur du paquet | 130 mm |
| Hauteur du paquet | 130 mm |
| Poids du Colis | 6,00 Kg |
