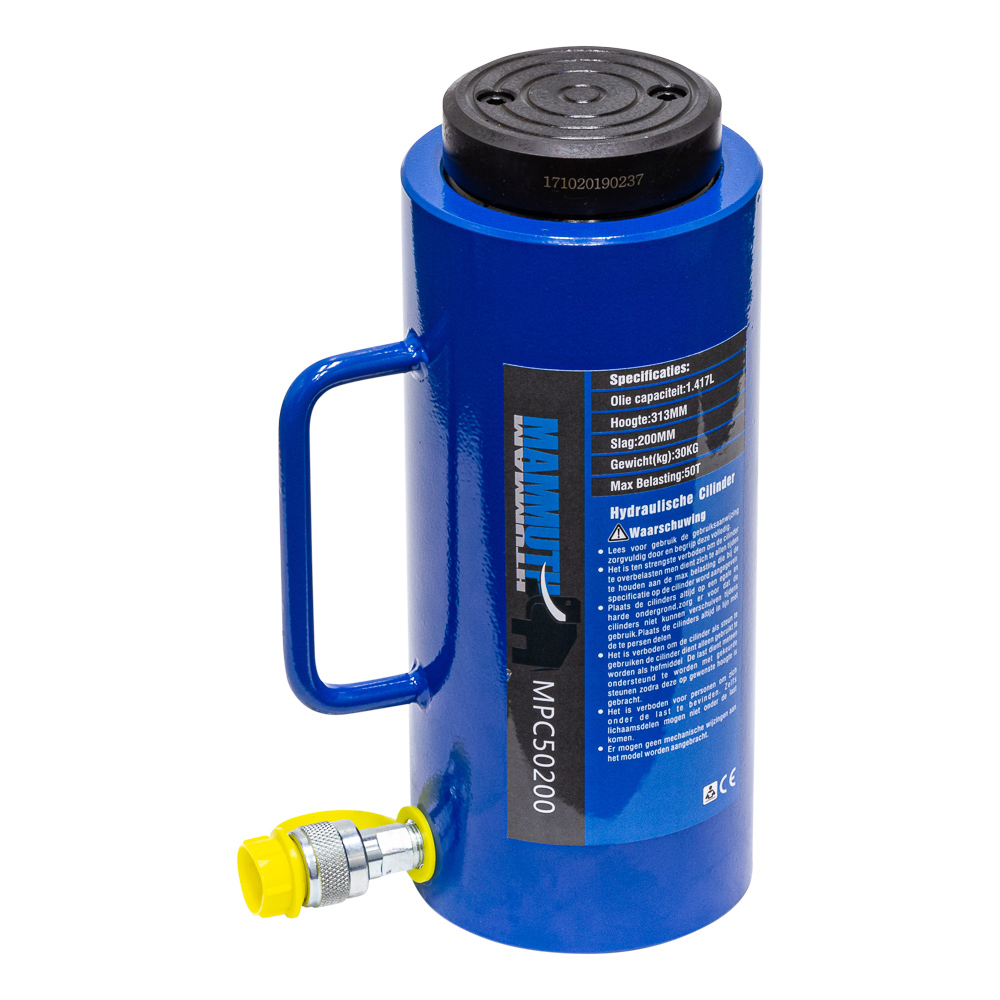

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 200mm
effective area = 70,9cm^2
oil capacity = 1,417 L
height of product = 312mm
extended height = 513mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 205 mm |
| Largeur du produit | 235 mm |
| Hauteur du produit | 320 mm |
| Poids du produit | 25,5 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 385 mm |
| Largeur du paquet | 190 mm |
| Hauteur du paquet | 190 mm |
| Poids du Colis | 26,50 Kg |
