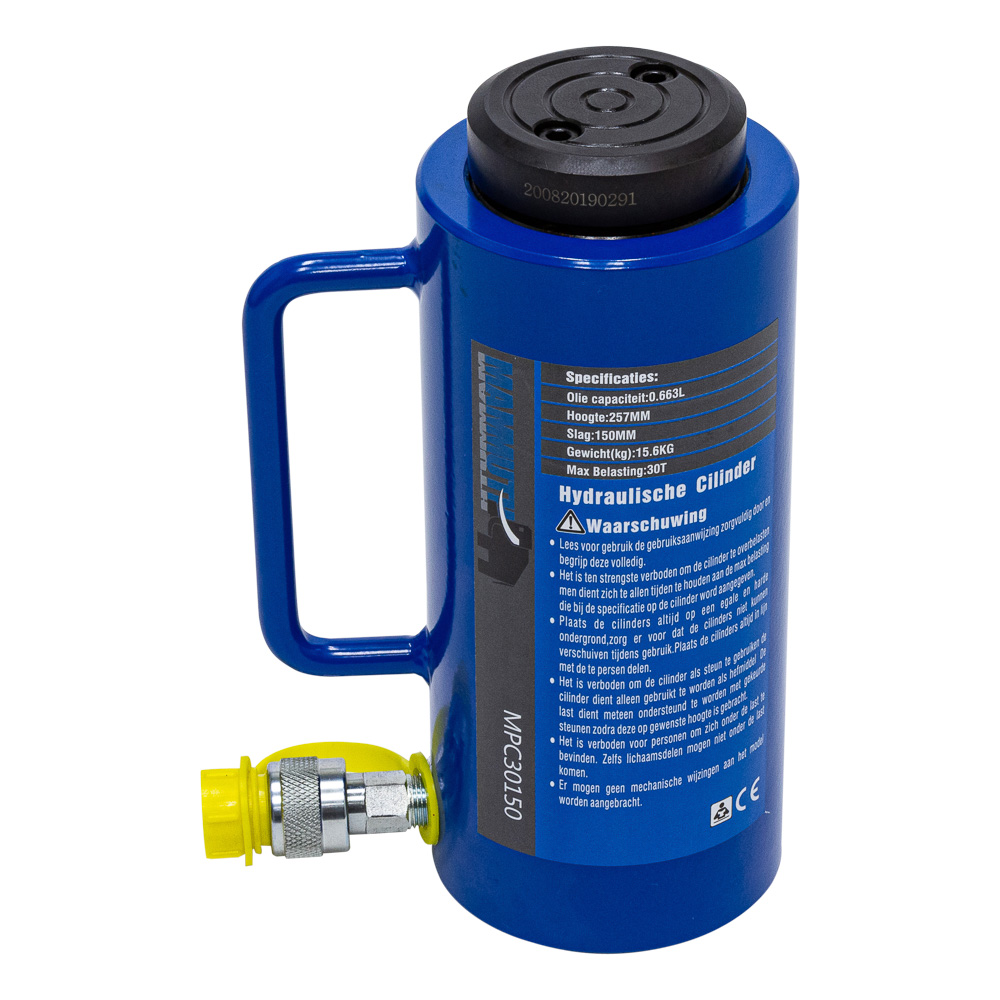

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 30 ton
- stroke = 150mm
- effective area = 44,2cm^2
- oil capacity = 0,663 L
- height of product = 256mm
- extended height = 407mm
- outside diameter = 107mm
- bore diameter = 75mm
- plunger diameter = 65mm
- thread for input oil port (ZG) = 3/8" - 23
- saddle protrusion form plgr = 22mm
- saddle is removable
- max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 170 mm |
| Largeur du produit | 100 mm |
| Hauteur du produit | 260 mm |
| Poids du produit | 15,6 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 385 mm |
| Largeur du paquet | 190 mm |
| Hauteur du paquet | 210 mm |
| Poids du Colis | 17,00 Kg |
