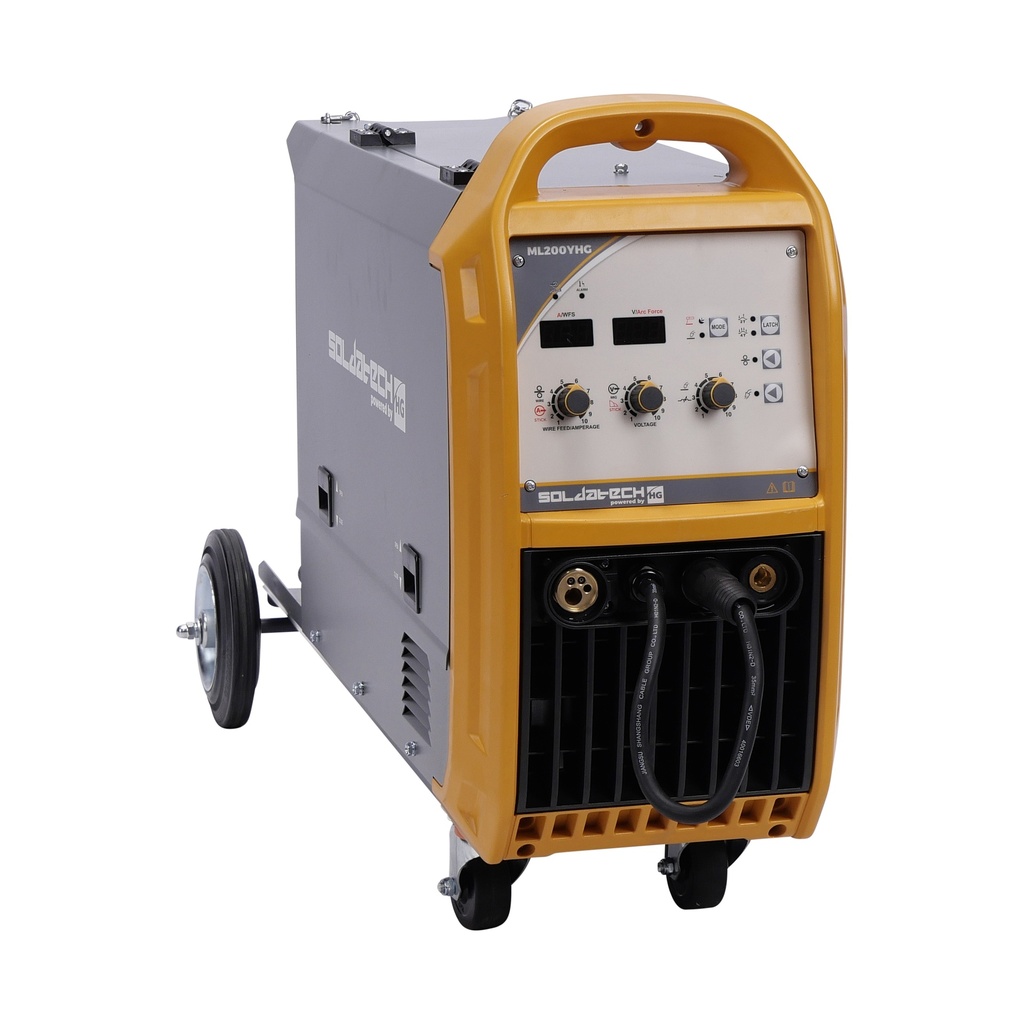

MIG/MAG 200A welding inverter / inverter / welding machine
This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.
The modern IGBT inverter technology ensures that the ML200YHG delivers sustainable performance with more power and a very high duty cycle. The ML200YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).
Each ML200YHG comes standard with:
- Soldatech MLT24M3 MIG torch with Euro connector 3m
- Twistlock electrode torch 3m 25mm² cable
- Welding ground clamp with 3m 25mm² cable
- European dinse couplers 13mm
- Gas line including quick coupling 4m
- 1x wire feed roll: 0.8 + 1.0
- 3-pin 32A plug with 3m 3x4mm² cable
Specifications
| Fréquence | 50/60 Hz |
| Tension | 230V - 1 Phase |
| No load voltage | 76V |
| Puissance d'entrée | 10kVA |
| Circuit breaker | 16A C-kar |
| Duty cycle @20C | 100% - 200A |
| Duty cycle @40C | 60% - 200A |
| Weldable welding wire | 0.8 / 1.0 / 1.2 mm |
| Protection class | IP21S |
| Plage de courant de soudage | MIG 30 - 200A / MMA 20 - 200A |
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 990 mm |
| Largeur du produit | 495 mm |
| Hauteur du produit | 720 mm |
| Poids du produit | 44,5 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 035 mm |
| Largeur du paquet | 500 mm |
| Hauteur du paquet | 735 mm |
| Poids du Colis | 68,00 Kg |
