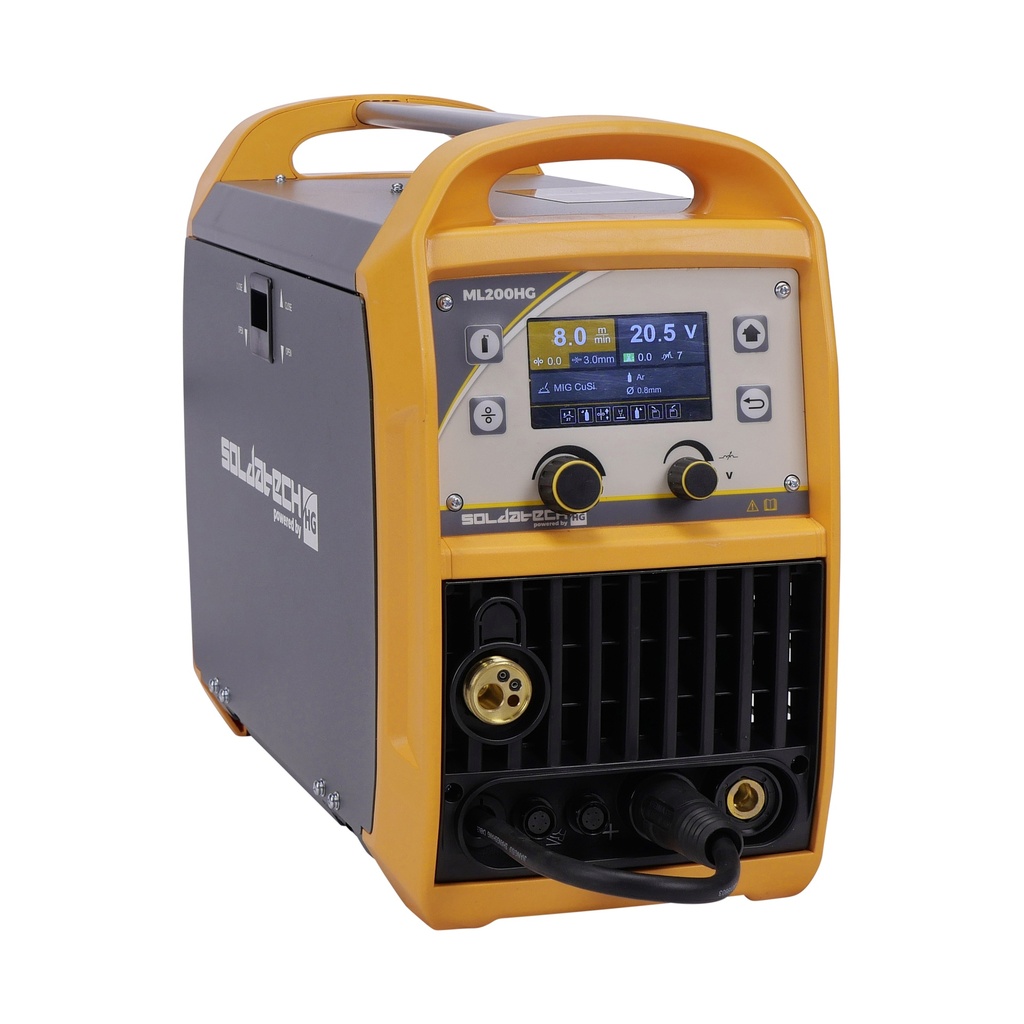

MIG/MAG 200A welding inverter / synergetic inverter / welding machine
This portable Soldatech powered by HG synergistic welding machine makes it possible to perform different welding processes including MIG welding, Lift-TIG and also electrode welding with ease. The wire speed is automatically adjusted to the set amperage, ensuring professional results.
The clear LCD display makes the ML200HG very easy to set up and all welding settings can be easily managed. The applications in the LCD screen and the synergistic properties of the machine make welding with this unit a real pleasure for almost all materials without the need for complicated settings.
With this machine it is possible to braze with CuSi3, the copper-silicon alloy has a lower melting temperature than steel, so that less temperature enters the material to be soldered and there is less chance of deformation of (thin) plates. It is also possible to solder different materials together (eg. aluminum to steel).
The welding torch is also equipped with the latest torch-control technology, making it very easy to adjust the welding machine remotely and even while welding.
The modern IGBT inverter technology ensures that the ML200HG delivers sustainable performance with more power and a very high duty cycle. The ML200HG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
The Soldatech inverter has a very extensive database that makes it possible to save 5 different programs with welding settings. This makes it easy to manage the ideal settings.
The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding stainless steel, carbon steel, low alloy steel, copper and aluminum (MIG).
Each ML200HG comes standard including:
Soldatech MLT25M3R remote control MIG torch with Euro connector and 3m cable
Twistlock electrode holder with 3m 16mm² cable
Workpiece clamp with 2m 16mm² cable
Standard 13mm Dinse cable coupling
Gas pipe of 3m with hose clamps
Molded plug with 2.5m 3x2.5mm² cable
2x Wire feed roll: 0.6 + 0.8 and 0.8 + 1.0
Technical specifications:
voltage = 230V - 1 phase
frequency = 50/60Hz
fuse protection = 16A delayed
input power = 8.6kVA
weldable welding wire = 0.6 / 0.8 / 1.0 / 1.2mm
- no load voltage = 69V
- duty cycle (at 20°C ambient temperature) = 35% - 200A
- duty cycle (at 40°C ambient temperature) = 20% - 200A
- welding current range MIG/MAG = 40 - 200A
- welding current range MMA = 10 - 180A
- welding current range lift TIG = 10 - 180A
protection class = IP21S
dimensions = 550 x 245 x 405mm
weight = 19kg
Dimensions du produit : | |
---|---|
Longueur du produit | 550 mm |
Largeur du produit | 245 mm |
Hauteur du produit | 405 mm |
Poids du produit | 19,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 700 mm |
Largeur du paquet | 335 mm |
Hauteur du paquet | 460 mm |
Poids du Colis | 23,70 Kg |
