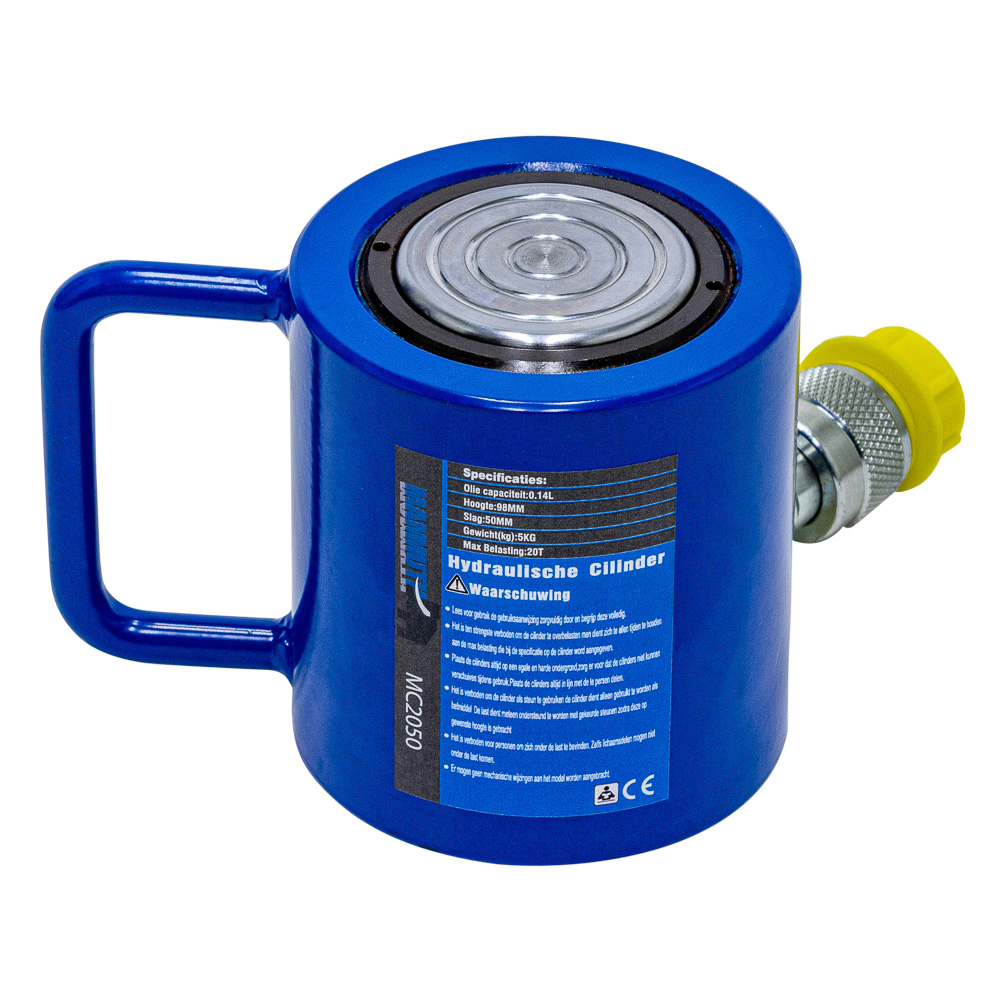

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 20 ton
- stroke = 50mm
- effective area = 22cm^2
- oil capacity = 0,14 L
- height of product = 98mm
- extended height = 148mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 53mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
Dimensions du produit : | |
---|---|
Longueur du produit | 160 mm |
Largeur du produit | 90 mm |
Hauteur du produit | 100 mm |
Poids du produit | 4,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 240 mm |
Largeur du paquet | 275 mm |
Hauteur du paquet | 225 mm |
Poids du Colis | 5,00 Kg |
