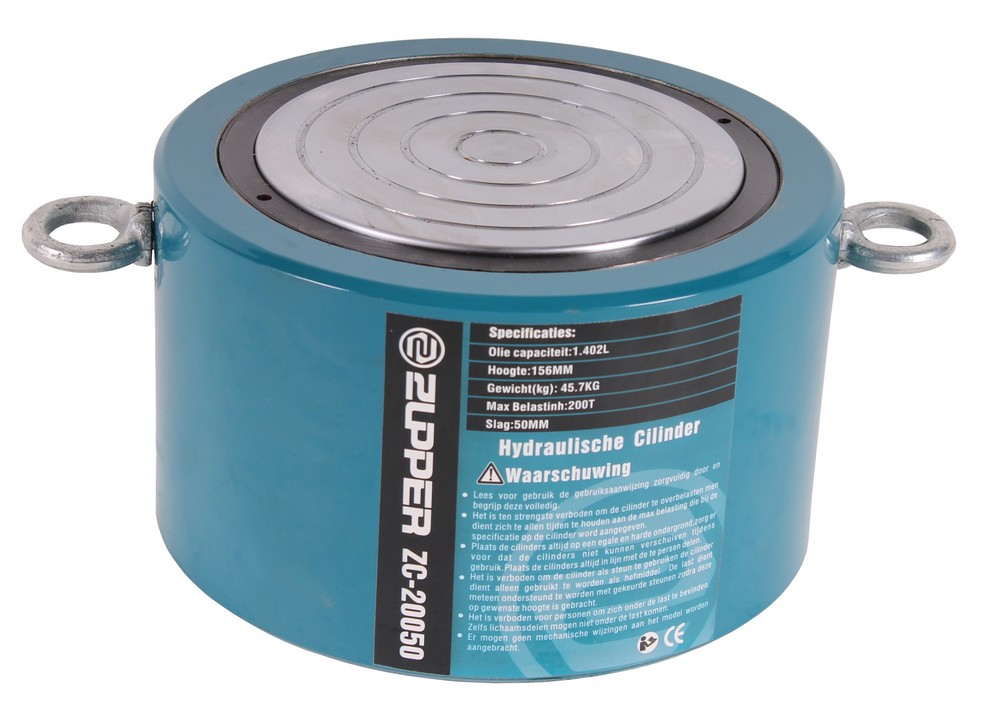

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 200 ton
- stroke = 50mm
- effective area = 224,2cm^2
- oil capacity = 1,402 L
- height of product = 156mm
- extended height = 206mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
Dimensions du produit : | |
---|---|
Longueur du produit | 305 mm |
Largeur du produit | 235 mm |
Hauteur du produit | 155 mm |
Poids du produit | 45,7 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 315 mm |
Largeur du paquet | 245 mm |
Hauteur du paquet | 165 mm |
Poids du Colis | 47,00 Kg |
