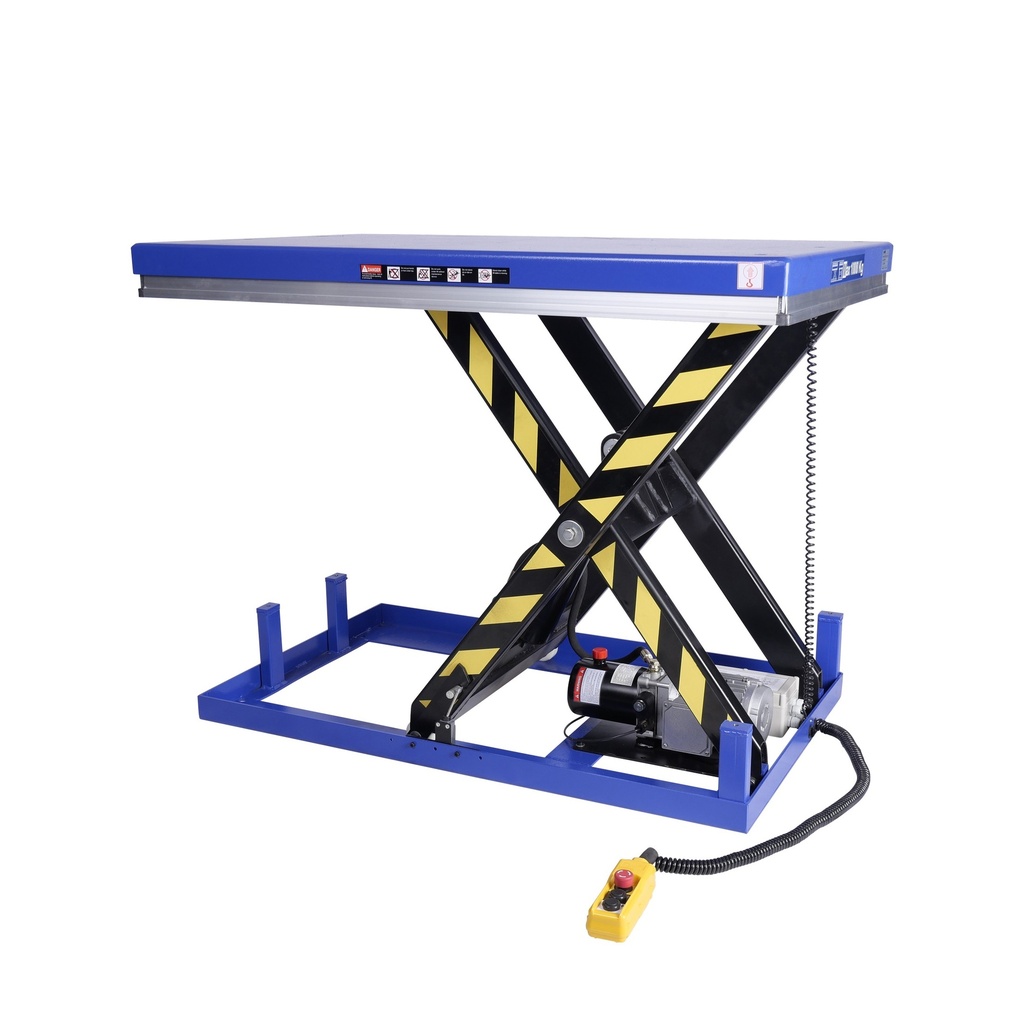

Scissor lift table / scissor table / platform lift / lift table / fixed lift table
This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.
Due to the electrical operation, ergonomic work is guaranteed.
Technical specifications:
capacity = 1000kg
minimum height = 210mm
maximum height = 1000mm
platform size = 1300 x 820mm
platform height = 60mm
lifting time unloaded = 21 sec.
cable control length = 3,7m
voltage = 230V
power = 1,1kW
oil capacity = 1,5L
Note: The lifting table is supplied without a plug!
Dimensions du produit : | |
---|---|
Longueur du produit | 1 300 mm |
Largeur du produit | 820 mm |
Hauteur du produit | 210 mm |
Poids du produit | 200,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 1 350 mm |
Largeur du paquet | 900 mm |
Hauteur du paquet | 350 mm |
Poids du Colis | 220,00 Kg |
