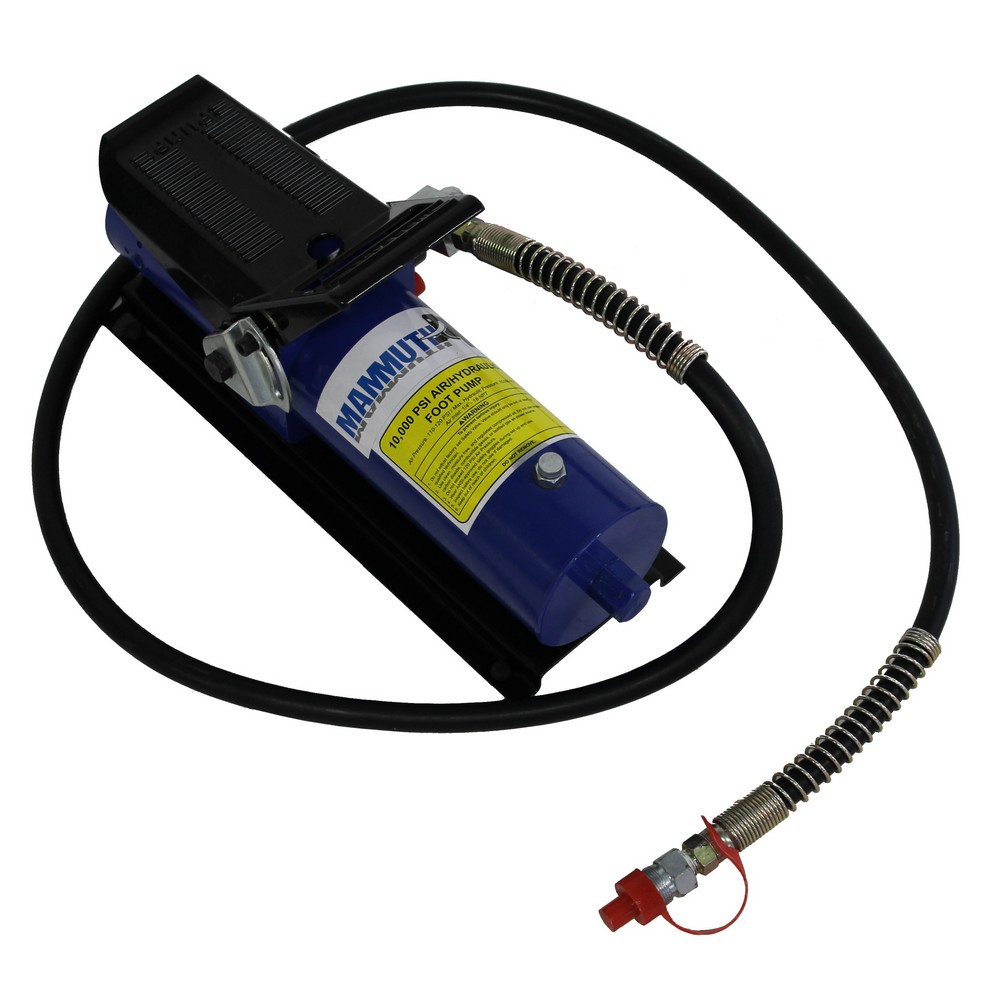

Hydraulic air pump
- capacity = 680ml
- pressure = 700 bar
- inlet port thread = 1/4"-18NPT
- outlet port thread = 1/4"-18NPT
- input air pressure = 7 - 8,3 bar
- output flow rate no load = 0,4L/min
- output flow rate with load = 0,12L/min
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 370 mm |
| Largeur du produit | 170 mm |
| Hauteur du produit | 185 mm |
| Poids du produit | 8,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 380 mm |
| Largeur du paquet | 175 mm |
| Hauteur du paquet | 195 mm |
| Poids du Colis | 8,92 Kg |
| Package Type: | |
| Pallet | 18 Pcs |
