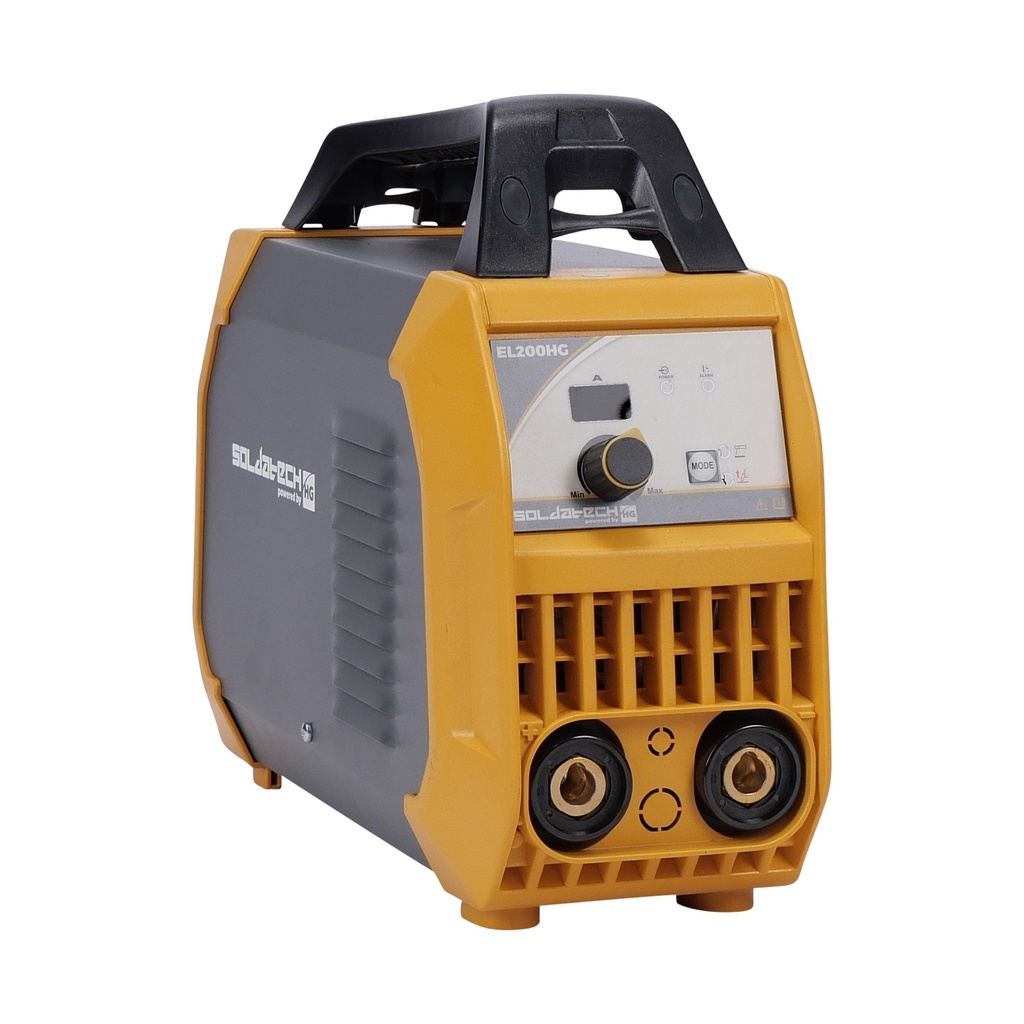

Electrode welding inverter / welder / welding machine / welding device
This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.
The easily adjustable welding current ensures that the EL200HG can be used quickly for welding jobs with different materials and thicknesses. Lift TIG welding is also possible with this device, but a different torch is then required, naturally.
The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece. The device is also equipped with an ARC force function; this sets the weld depth.
The modern IGBT inverter technology not only ensures that the EL200HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).
Each EL200HG comes standard with:
Twistlock electrode holder with 3m 16mm² cable
Workpiece clamp with 2m 16mm² cable
Molded plug with 2m 3x2.5mm² cable
Standard 13mm Dinse cable couplings
Sturdy storage case
Technical specifications:
voltage = 230V
frequency = 50/60Hz
fuse protection = 16A C-kar
input power = 8.8kVA
weldable electrodes = 1.6 - 4.0mm
- no load voltage = 82V
- duty cycle (at 20°C ambient temperature) = 40% - 200A
- duty cycle (at 40°C ambient temperature) = 15% - 200A
- welding current range MMA = 41 - 200A
- welding current range lift TIG = 15 - 200A
protection class = IP21S
dimensions = 400 x 154 x 300mm
weight = 5.8kg
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 400 mm |
| Largeur du produit | 154 mm |
| Hauteur du produit | 300 mm |
| Poids du produit | 5,8 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 530 mm |
| Largeur du paquet | 185 mm |
| Hauteur du paquet | 415 mm |
| Poids du Colis | 10,60 Kg |
